SXV20L-GKPNKA (2000)

Toyota Solara

Production Feb 2000 - Jul 2001
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

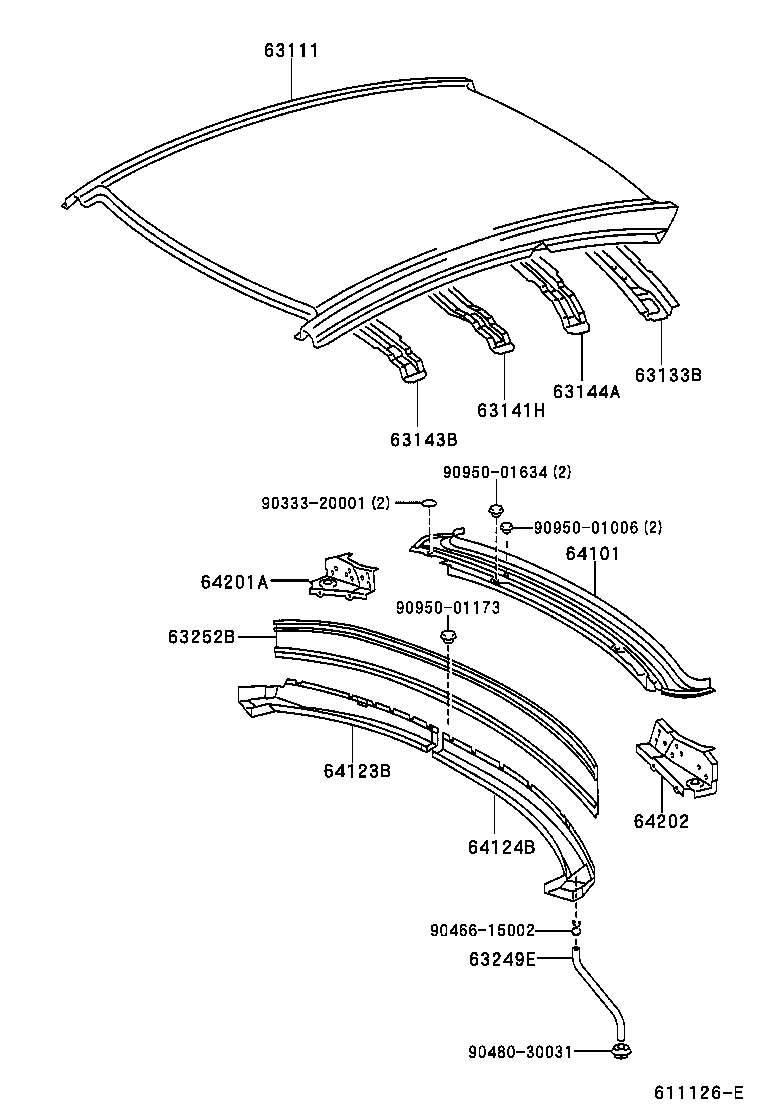

ILLUST NO. 2 OF 2(0002- )CVT

Click highlighted areas on diagram

diagram 63111 63133B 63141H 63143B 63144A 63249E 63252B 64101 64123B 64124B 64201A 64202 9033320001 9046615002 9048030031 9095001006 9095001173 9095001634
Part # Description Qty Price
63111 - PANEL, ROOF
63111-06260

ACV20,MCV20,SXV20

 1
63133B - FRAME, BACK WINDOW
63133-06010

ACV20,MCV20,SXV20

 1
63141H - REINFORCEMENT, ROOF PANEL, CENTER
63141-06020

ACV20,MCV20,SXV20

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-06010

ACV20,MCV20,SXV20

 1
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63144-06020

ACV20,MCV20,SXV20

 1
Common parts
90333-20001
90466-15002
90480-30031
90950-01006
90950-01173
90950-01634

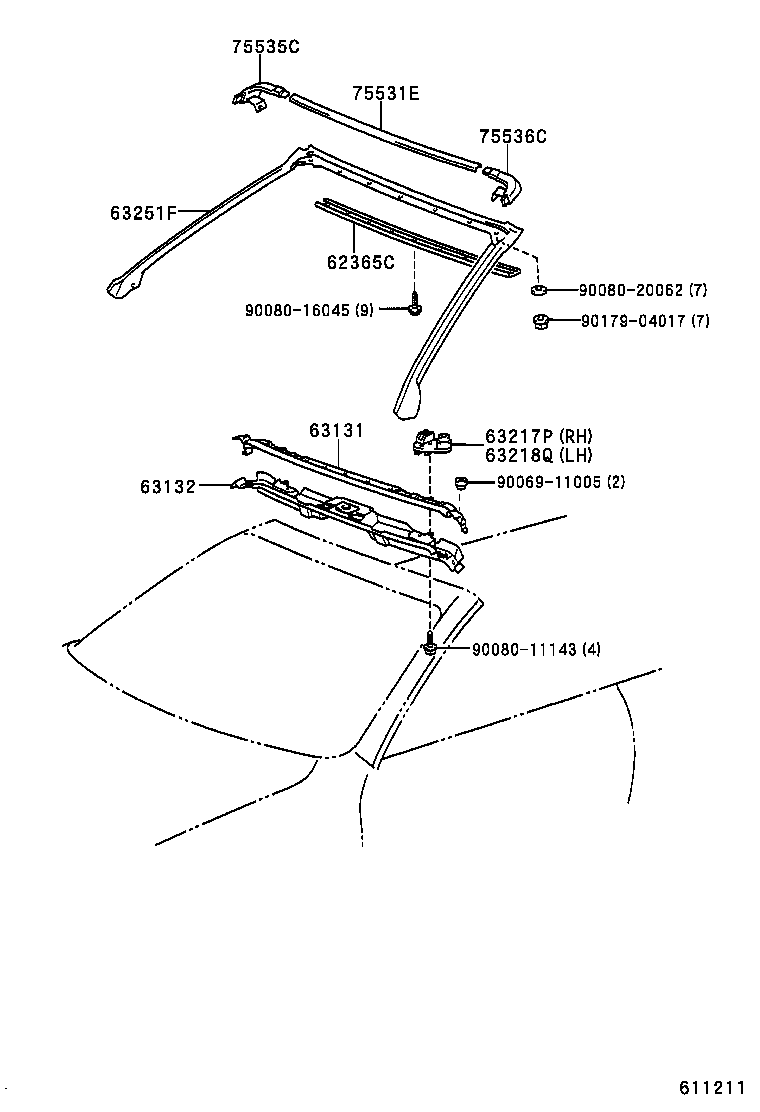

ILLUST NO. 1 OF 2(0002- )CVT

Click highlighted areas on diagram

diagram 62365C 63131 63132 63217P 63218Q 63251F 75531E 75535C 75536C 9006911005 9008011143 9008016045 9008020062 9017904017
Part # Description Qty Price
Common parts
90069-11005
90080-11143
90080-16045
90080-20062
90179-04017
