SXV20L-GKPNKA (2000)

Toyota Solara

Production Feb 2000 - Jul 2001
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0002- )CVT

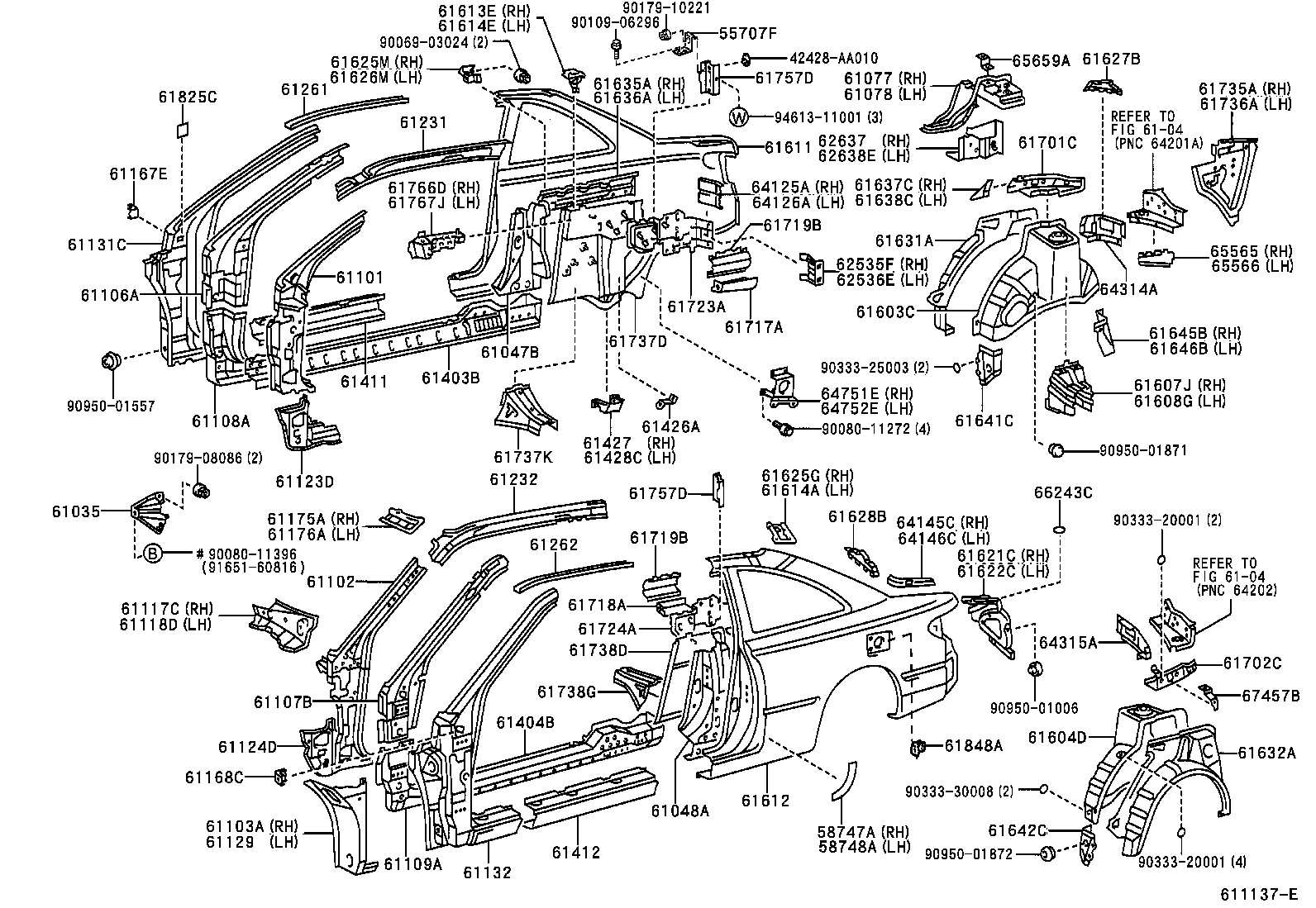

Click highlighted areas on diagram

diagram 42428AA010 55707F 58747A 58748A 61035 6104 6104 61047B 61048A 61077 61078 61101 61102 61103A 61106A 61107B 61108A 61109A 61117C 61118D 61123D 61124D 61129 61131C 61132 61167E 61168C 61175A 61176A 61231 61232 61261 61262 61403B 61404B 61411 61412 61426A 61427 61428C 61603C 61604D 61607J 61608G 61611 61612 61613E 61614A 61614E 61621C 61622C 61625G 61625M 61626M 61627B 61628B 61631A 61632A 61635A 61636A 61637C 61638C 61641C 61642C 61645B 61646B 61701C 61702C 61717A 61718A 61719B 61719B 61723A 61724A 61735A 61736A 61737D 61737K 61738D 61738G 61757D 61757D 61766D 61767J 61825C 61848A 62535F 62536E 62637 62638E 64125A 64126A 64145C 64146C 64314A 64315A 64751E 64752E 65565 65566 65659A 66243C 67457B 9006903024 9008011272 9008011396 9010906296 9017908086 9017910221 9033320001 9033320001 9033325003 9033330008 9095001006 9095001557 9095001871 9095001872 9165160816 9461311001
Part # Description Qty Price
58747A - PROTECTOR, QUARTER PANEL, REAR RH
58747-06010

ACV20,MCV20,SXV20

 1
58748A - PROTECTOR, QUARTER PANEL, REAR LH
58748-06010

ACV20,MCV20,SXV20

 1
61035 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH
61165-AA010

ACV20,MCV20,SXV20

 1
61167E - BRACKET, NO.6 PILLAR OUTER
61168-06010

ACV20,MCV20,SXV20

 1
61168C - BRACKET, NO.6 PILLAR OUTER
61168-06010

ACV20,MCV20,SXV20

 1
61175A - REINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH
61175-06010

ACV20,MCV20,SXV20

 1
61176A - REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 LH
61176-06010

ACV20,MCV20,SXV20

 1
61231 - RAIL, ROOF SIDE, INNER RH
61231-06020

ACV20,MCV20,SXV20

 1
61232 - RAIL, ROOF SIDE, INNER LH
61232-06020

ACV20,MCV20,SXV20

 1
61261 - CHANNEL, ROOF DRIP, RH
61261-06030

ACV20,MCV20,SXV20

 1
61262 - CHANNEL, ROOF DRIP, LH
61262-06030

ACV20,MCV20,SXV20

 1
61614A - EXTENSION, QUARTER PANEL, REAR LH
61626-06020

ACV20,MCV20,SXV20

 1
61621C - TROUGH, LUGGAGE COMPARTMENT OPENING, RH
61621-06900

ACV20,MCV20,SXV20

 1
61622C - TROUGH, LUGGAGE COMPARTMENT OPENING, LH
61622-06900

ACV20,MCV20,SXV20

 1
61625G - EXTENSION, QUARTER PANEL, REAR RH
61625-06020

ACV20,MCV20,SXV20

 1
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
61631-06020

ACV20,MCV20,SXV20

 1
61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH
61632-06020

ACV20,MCV20,SXV20

 1
61641C - GUSSET, QUARTER WHEEL HOUSE, FRONT RH
61641-06020

ACV20,MCV20,SXV20

 1
61642C - GUSSET, QUARTER WHEEL HOUSE, FRONT LH
61642-06020

ACV20,MCV20,SXV20

 1
61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH
61645-06030

ACV20,MCV20,SXV20

 1
61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH
61646-06030

ACV20,MCV20,SXV20

 1
61825C - PAD, NOISE SHUTTER, NO.2
62939-23010

ACV20,MCV20,SXV20

 2
61848A - RETAINER, QUARTER PANEL, LH
61848-AA010

ACV20,MCV20,SXV20

 1
66243C - PROTECTOR, REAR BODY, NO.1
66243-20010

ACV20,MCV20,SXV20

 2
Common parts
42428-AA010
90069-03024
90080-11272
90080-11396
90109-06296
90179-08086
90179-10221
90333-20001
90333-25003
90333-30008
90950-01006
90950-01557
90950-01871
90950-01872
91651-60816
94613-11001
Linked diagrams
6104
