SXV20L-GKPNKA (2000)

Toyota Solara

Production Feb 2000 - Jul 2001
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9806-0107)SXV20

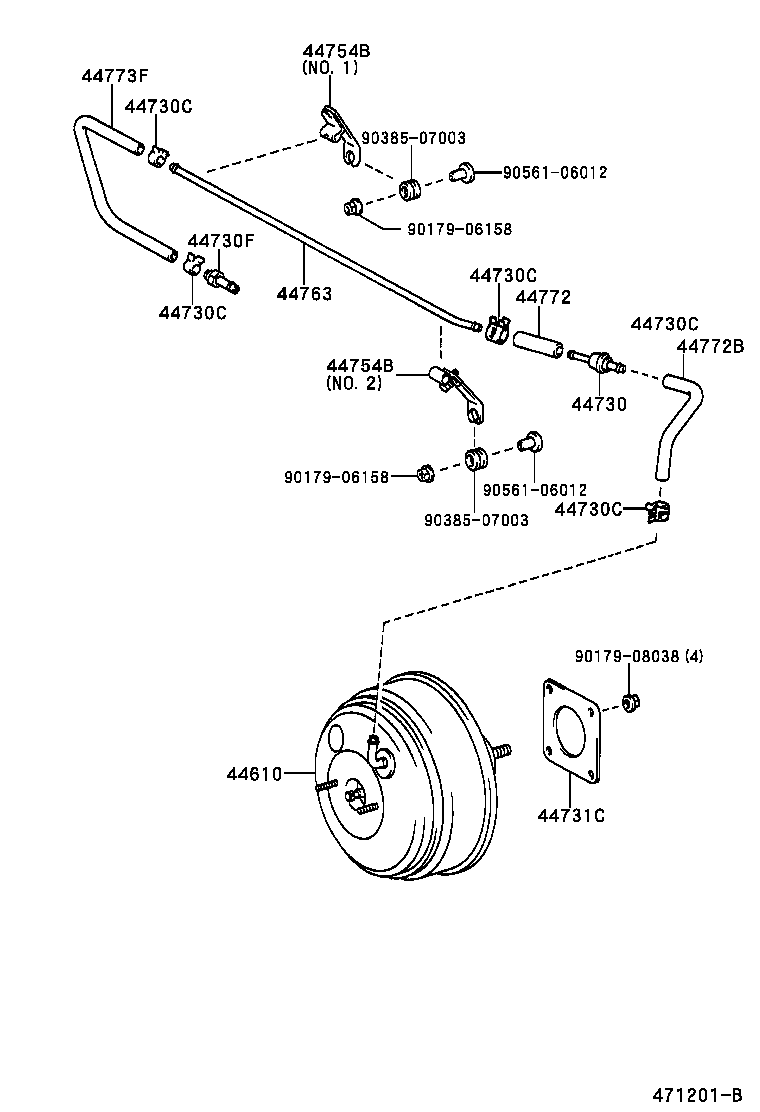

Click highlighted areas on diagram

diagram 44610 44730 44730C 44730C 44730C 44730C 44730C 44730F 44731C 44754B 44754B 44763 44772 44772B 44773F 9017906158 9017906158 9017908038 9038507003 9038507003 9056106012 9056106012
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-06130

MCV20,SXV20

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

ACV20,MCV20,SXV20

 1
44730C - CLIP(FOR VACUUM HOSE)
96134-51500

ACV20,MCV20,SXV20

 4
44730C - CLIP(FOR VACUUM HOSE)
96134-51500

ACV20,MCV20,SXV20

 4
44730C - CLIP(FOR VACUUM HOSE)
96134-51500

ACV20,MCV20,SXV20

 4
44730C - CLIP(FOR VACUUM HOSE)
96134-51500

ACV20,MCV20,SXV20

 4
44730C - CLIP(FOR VACUUM HOSE)
96134-51500

ACV20,MCV20,SXV20

 4
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

SXV20

 1
44731C - BRACKET, BRAKE BOOSTER
44731-33010

ACV20,MCV20,SXV20

 1
44754B - BRACKET, VACUUM TUBE
44758-06010

ACV20,SXV20

NO.1

 1
44758-06020

ACV20,SXV20

NO.2

 1
44754B - BRACKET, VACUUM TUBE
44758-06010

ACV20,SXV20

NO.1

 1
44758-06020

ACV20,SXV20

NO.2

 1
44763 - TUBE, BOOSTER VACUUM
44763-06010

ACV20,SXV20

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-06020

ACV20,SXV20

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-07010

ACV20,SXV20

 1
44773F - HOSE, UNION TO CHECK VALVE
44774-06010

SXV20

 1
Common parts
90179-06158
90179-08038
90385-07003
90561-06012
