SXV20L-GKPNKA (2000)

Toyota Solara

Production Feb 2000 - Jul 2001
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9806-0107)SXV20

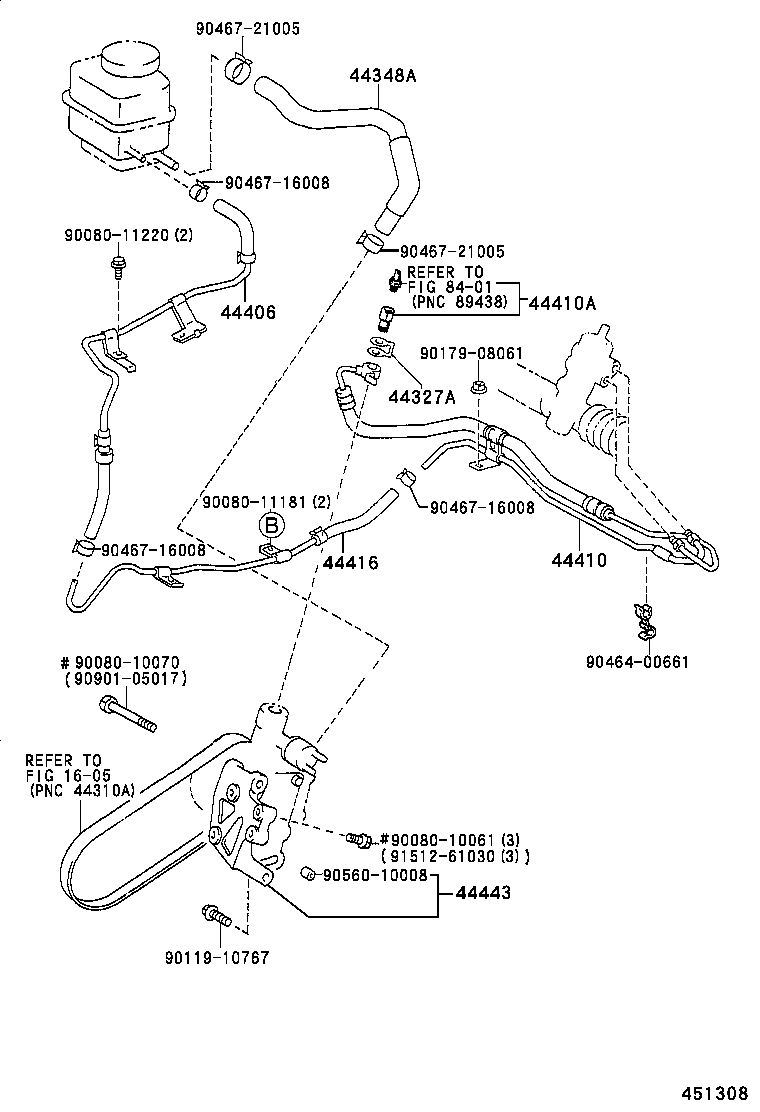

Click highlighted areas on diagram

diagram 1605 44327A 44348A 44406 44410 44410A 44416 44443 8401 9008010061 9008010070 9008011181 9008011220 9011910767 9017908061 9046400661 9046716008 9046716008 9046716008 9046721005 9046721005 9056010008 9090105017 9151261030
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-30030

ACV20,MCV20,SXV20

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-06160

SXV20

 1
44406 - TUBE SUB-ASSY, RETURN
44406-06050

ACV20,MCV20,SXV20

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-06090

SXV20

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
44338-33090

MCV20,SXV20

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-06050

MCV20,SXV20

 1
44443 - BRACKET, PUMP
44443-33020

SXV20

 1
Common parts
90080-10061
90080-10070
90080-11181
90080-11220
90119-10767
90179-08061
90464-00661
90467-16008
90467-21005
90560-10008
90901-05017
91512-61030
Linked diagrams
1605
8401
