SXV20L-GKPNKA (2000)
Toyota Solara
Production
Feb 2000
-
Jul 2001
Engine
5SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0002-0008)5SFE..CVT ; (0008- )5SFE

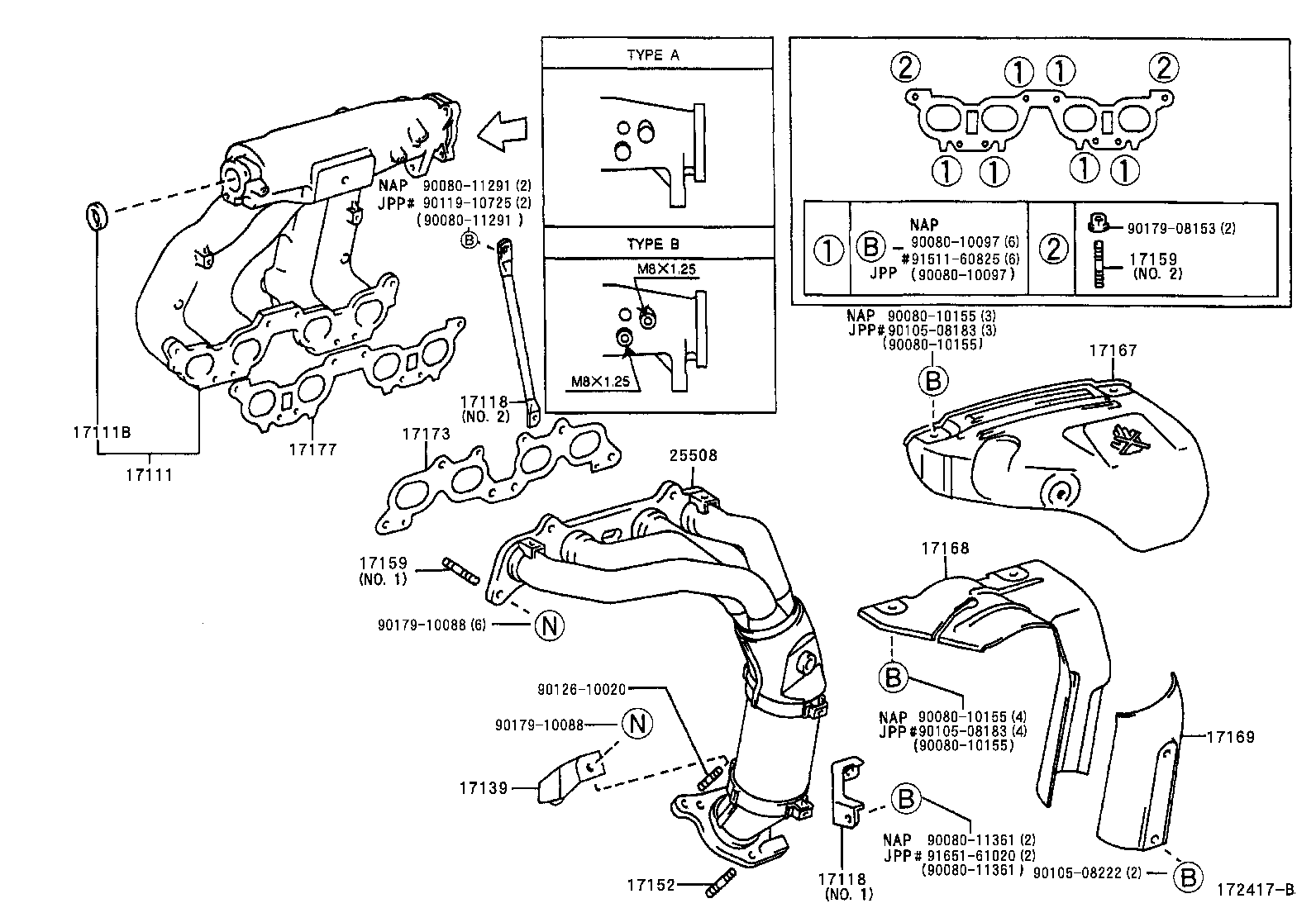

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-74310 |
5SFE..SXV20 (J) |
1 | ||
| 17101-03050 |
5SFE..SXV20 (L) |
1 | ||
| 17111B - PLUG, NO.2 | ||||
| 96411-44000 |
5SFE..SXV20 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-03080 |
5SFE..SXV20 NO.2,(L) |
1 | ||
| 17118-74370 |
5SFE..SXV20 NO.1 |
1 | ||
| 17118-74390 |
5SFE..SXV20 NO.2,(J) |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-03080 |
5SFE..SXV20 NO.2,(L) |
1 | ||
| 17118-74370 |
5SFE..SXV20 NO.1 |
1 | ||
| 17118-74390 |
5SFE..SXV20 NO.2,(J) |
1 | ||
| 17139 - STAY, MANIFOLD, NO.2 | ||||
| 17139-74190 |
5SFE..SXV20 |
1 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10058 |
5SFE..SXV20..CND;5SFE..SXV20..CVT |
3 | ||
| 90116-10058 |
5SFE..SXV20 |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 92122-60822 |
5SFE..SXV20 NO.2 |
2 | ||
| 90116-10063 |
5SFE..SXV20 NO.1 |
6 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 92122-60822 |
5SFE..SXV20 NO.2 |
2 | ||
| 90116-10063 |
5SFE..SXV20 NO.1 |
6 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-74231 |
5SFE..SXV20 |
1 | ||
| 17167-74231 |
5SFE..SXV20..CVT |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-74131 |
5SFE..SXV20..CVT |
1 | ||
| 17168-74131 |
5SFE..SXV20 |
1 | ||
| 17169 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3 | ||||
| 17169-74030 |
5SFE..SXV20..CVT |
1 | ||
| 17169-74030 |
5SFE..SXV20 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-74040 |
5SFE..SXV20 |
1 | ||
| 17173-74040 |
5SFE..SXV20 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-03020 |
5SFE..SXV20 (L) |
1 | ||
| 17177-74070 |
5SFE..SXV20 (J) |
1 | ||
| 25508 - CONVERTER SUB-ASSY, MANIFOLD | ||||
| 25051-03010 |
5SFE..SXV20..USA |
1 | ||
| 25051-03020 |
5SFE..SXV20 |
1 | ||
| Common parts | ||||
| 90080-10097 | ||||
| 90080-10155 | ||||
| 90080-11291 | ||||
| 90080-11361 | ||||
| 90105-08183 | ||||
| 90105-08222 | ||||
| 90119-10725 | ||||
| 90126-10020 | ||||
| 90179-08153 | ||||
| 90179-10088 | ||||
| 91511-60825 | ||||
| 91651-61020 | ||||
