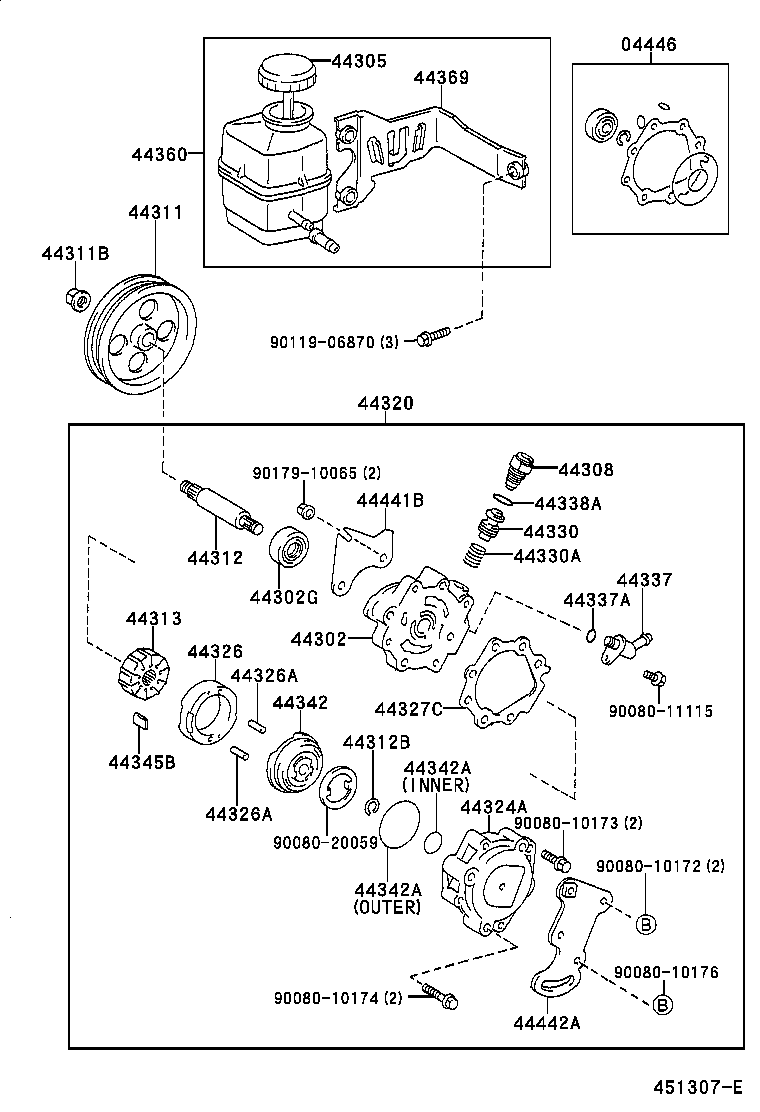

SXV20L-GCMNKA (1998)
Toyota Solara
(9806-0107)SXV20
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-06030 |
SXV20 |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-06021 |
SXV20 |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90080-31020 |
MCV20,SXV20 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-06010 |
ACV20,MCV20,SXV20 |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-33060 |
MCV20,SXV20 |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-06010 |
SXV20 |
1 | ||
| 44311B - NUT(FOR VANE PUMP PULLEY) | ||||
| 90178-12003 |
MCV20,SXV20 |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-06010 |
MCV20,SXV20 |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90080-52033 |
ACV20,MCV20,SXV20 |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-06020 |
MCV20,SXV20 MARK 1 |
1 | ||
| 44313-06030 |
MCV20,SXV20 MARK 2 |
1 | ||
| 44313-06040 |
MCV20,SXV20 MARK 3 |
1 | ||
| 44313-06010 |
MCV20,SXV20 NO MARK |
1 | ||
| 44313-06050 |
MCV20,SXV20 MARK 4 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-06030 |
SXV20 |
1 | ||
| 44324A - HOUSING, PUMP, REAR | ||||
| 44324-06010 |
SXV20 |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-06040 |
MCV20,SXV20 MARK 3 |
1 | ||
| 44325-06050 |
MCV20,SXV20 MARK 4 |
1 | ||
| 44325-06020 |
MCV20,SXV20 MARK 1 |
1 | ||
| 44325-06010 |
MCV20,SXV20 NO MARK |
1 | ||
| 44325-06030 |
MCV20,SXV20 MARK 2 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90080-25024 |
MCV20,SXV20 L=23.3,OD=4.0 |
2 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90080-25024 |
MCV20,SXV20 L=23.3,OD=4.0 |
2 | ||
| 44327C - GASKET, VANE PUMP HOUSING | ||||
| 44327-26010 |
MCV20,SXV20 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-06140 |
MCV20,SXV20 MARK B |
1 | ||
| 44330-06150 |
MCV20,SXV20 MARK C |
1 | ||
| 44330-06180 |
MCV20,SXV20 MARK F |
1 | ||
| 44330-06130 |
MCV20,SXV20 MARK A |
1 | ||
| 44330-06170 |
MCV20,SXV20 MARK E |
1 | ||
| 44330-06160 |
MCV20,SXV20 MARK D |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90080-50221 |
MCV20,SXV20 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-06010 |
SXV20 |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90080-30034 |
MCV20,SXV20 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90080-30035 |
MCV20,SXV20 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-06010 |
MCV20,SXV20 |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90080-30031 |
MCV20,SXV20 INNER |
1 | ||
| 90080-30032 |
MCV20,SXV20 OUTER |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90080-30031 |
MCV20,SXV20 INNER |
1 | ||
| 90080-30032 |
MCV20,SXV20 OUTER |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-26010 |
MCV20,SXV20 L=15.000 |
10 | ||
| 44345-26030 |
MCV20,SXV20 L=14.996 |
10 | ||
| 44345-26020 |
MCV20,SXV20 L=14.998 |
10 | ||
| 44345-26040 |
MCV20,SXV20 L=14.994 |
10 | ||
| 44345-26050 |
MCV20,SXV20 L=14.992 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-06010 |
ACV20,MCV20,SXV20 |
1 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44390-06010 |
ACV20,MCV20,SXV20 |
1 | ||
| 44441B - BRACKET, PUMP, FRONT | ||||
| 44441-06010 |
SXV20 |
1 | ||
| 44442A - BRACKET, VANE PUMP, REAR | ||||
| 44442-06010 |
SXV20 |
1 | ||
| Common parts | ||||
| 90080-10172 | ||||
| 90080-10173 | ||||
| 90080-10174 | ||||
| 90080-10176 | ||||
| 90080-11115 | ||||
| 90080-20059 | ||||
| 90119-06870 | ||||
| 90179-10065 | ||||
