SXV20L-GCMNKA (1998)
Toyota Solara
Production
Jun 1998
-
Jul 2001
Engine
5SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

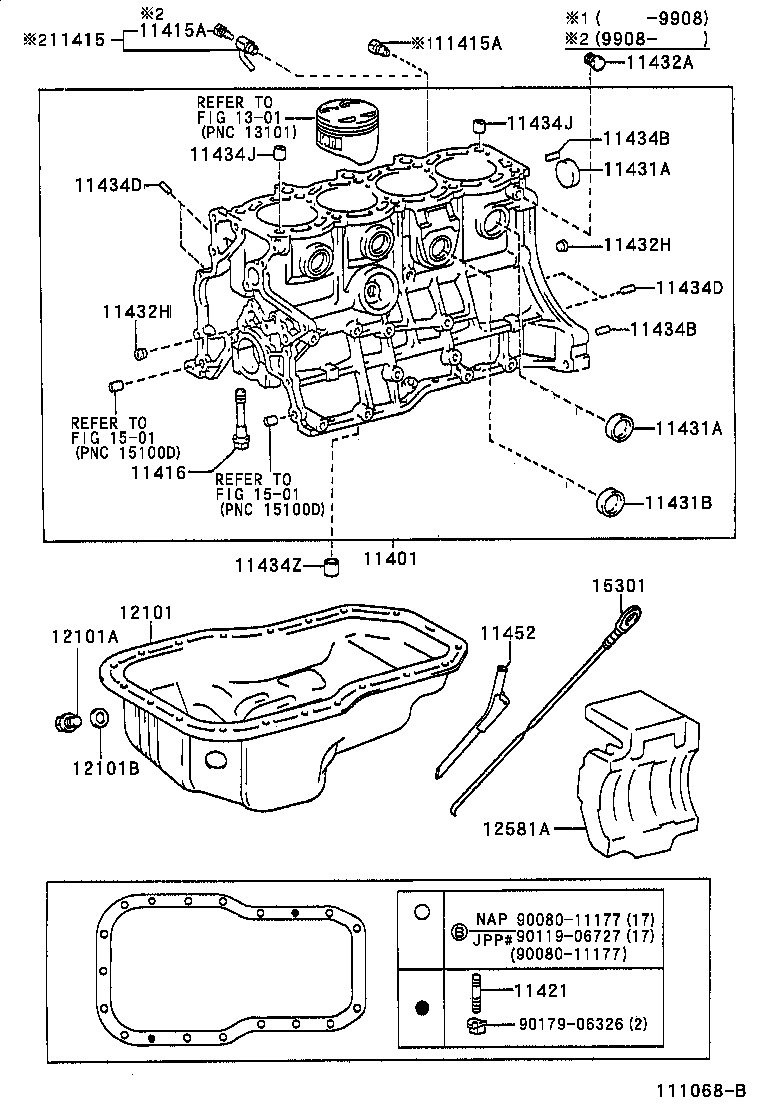

(9806- )5SFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-09150 |
5SFE..SXV20..CP |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-09107 |
5SFE..SXV20 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90345-52001 |
5SFE..SXV20 |
1 | ||
| 90910-09087 |
5SFE..SXV20 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90345-52001 |
5SFE..SXV20 |
1 | ||
| 90910-09087 |
5SFE..SXV20 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90105-10028 |
5SFE..SXV20 |
10 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 90116-06022 |
5SFE..SXV20 |
2 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
5SFE..SXV20 |
8 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
5SFE..SXV20 |
8 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-44000 |
5SFE..SXV20 |
1 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-51006 |
5SFE..SXV20 |
1 | ||
| 11432H - PLUG, W/HEAD TAPER SCREW, NO.5 | ||||
| 90344-53006 |
5SFE..SXV20 |
2 | ||
| 11432H - PLUG, W/HEAD TAPER SCREW, NO.5 | ||||
| 90344-53006 |
5SFE..SXV20 |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10113 |
5SFE..SXV20 L=22,OD=10 |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10113 |
5SFE..SXV20 L=22,OD=10 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06003 |
5SFE..SXV20 L=14,OD=6 |
4 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06003 |
5SFE..SXV20 L=14,OD=6 |
4 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-13017 |
5SFE..SXV20 |
2 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-13017 |
5SFE..SXV20 |
2 | ||
| 11434Z - PIN, RING(FOR BALANCER) | ||||
| 90253-13001 |
5SFE..SXV20 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-74070 |
5SFE..SXV20 (J) |
1 | ||
| 11452-03020 |
5SFE..SXV20 (L) |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-74111 |
5SFE..SXV20 (J) |
1 | ||
| 12101-03031 |
5SFE..SXV20 (L) |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12026 |
5SFE..SXV20 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
5SFE..SXV20 |
1 | ||
| 12581A - INSULATOR, CYLINDER BLOCK, NO.1 | ||||
| 12581-74020 |
5SFE..SXV20 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-74110 |
5SFE..SXV20 |
1 | ||
| Common parts | ||||
| 90080-11177 | ||||
| 90119-06727 | ||||
| 90179-06326 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1501 | ||||
