MCV31L-GKANKA (2004)

Toyota Solara

Production Feb 2004 - May 2006
Engine 3MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0402- )CVT

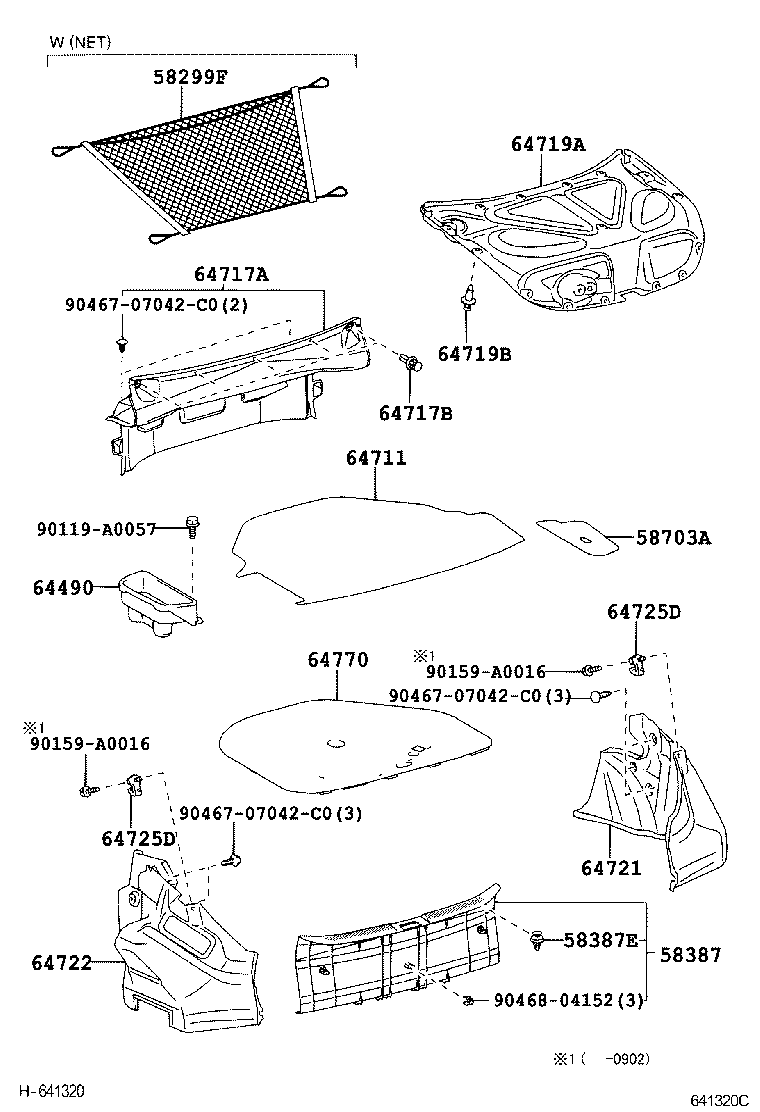

Click highlighted areas on diagram

diagram 58299F 58387 58387E 58703A 64490 64711 64717A 64717B 64719A 64719B 64721 64722 64725D 64725D 64770 90119A0057 90159A0016 90159A0016 9046707042C0 9046707042C0 9046707042C0 9046804152
Part # Description Qty Price
58387 - PLATE, REAR FLOOR FINISH
58387-AA030C0

ACV30,MCV31..(5F,5FC)..SE

BLACK,TRIM0#,10,11

 1
58387E - CLIP(FOR REAR FLOOR FINISH PLATE)
90467-A0006

ACV30,MCV31..5F,5FC

 4
58703A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58703-06040

ACV30,MCV31

 1
64490 - TRAY ASSY, LUGGAGE COMPARTMENT SIDE
64490-AA010

ACV30,MCV31..5F,5FC

 1
64711 - MAT, LUGGAGE COMPARTMENT FLOOR
64711-06050C0

MCV31..CVT..SE

BLACK,TRIM0#,10,11

 1
64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT
64717-06040C0

MCV31..CVT..SE

BLACK,TRIM0#,10,11

 1
64717B - CLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
90467-07201

MCV31..CVT

 5
64719A - COVER, LUGGAGE COMPARTMENT DOOR
64719-06050C0

MCV31..CVT..SE

BLACK,TRIM0#,10,11

 1
64719B - CLIP(FOR LUGGAGE COMPARTMENT DOOR)
90467-07138

ACV30,MCV31

 16
90467-07201

MCV31..CVT

 18
64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
64721-06050C0

MCV31..CVT..SE

BLACK,TRIM0#,10,11

 1
64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
64722-06050C0

MCV31..CVT..SE

BLACK,TRIM0#,10,11

 1
64725D - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64725-AC010C0

ACV30,MCV31..(5F,5FC)..SE

BLACK,TRIM0#,10,11

 2
64725D - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64725-AC010C0

ACV30,MCV31..(5F,5FC)..SE

BLACK,TRIM0#,10,11

 2
64770 - COVER ASSY, SPARE WHEEL
64770-07012

ACV30,MCV31

 1
64770-07011

ACV30,MCV31

 1
64770-06130

ACV30,MCV31..SE

TIRE & DISC WHEEL-215/55R17AS93V 7JJ ALMINUM&SPARE TIRE-WITH(ALMINUM)

 1
64770-06080

ACV30;MCV31..SE

SPARE TIRE-WITH(STEEL)

 1
64770-07013

ACV30,MCV31

 1
64770-07010

ACV30,MCV31

 1
64770-07014

ACV30,MCV31

 1
64770-06131

ACV30,MCV31..SE

TIRE & DISC WHEEL-215/55R17AS93V 7JJ ALMINUM&SPARE TIRE-WITH(ALMINUM)

 1
64770-06132

ACV30,MCV31..SE

TIRE & DISC WHEEL-215/55R17AS93V 7JJ ALMINUM&SPARE TIRE-WITH(ALMINUM)

 1
64770-06081

ACV30;MCV31..SE

SPARE TIRE-WITH(STEEL)

 1
Common parts
90119-A0057
90159-A0016
90467-07042C0
90468-04152
