MCV31L-GKAGKA (2006)

Toyota Solara

Production May 2006 - Dec 2008
Engine 3MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0605- )

Click highlighted areas on diagram

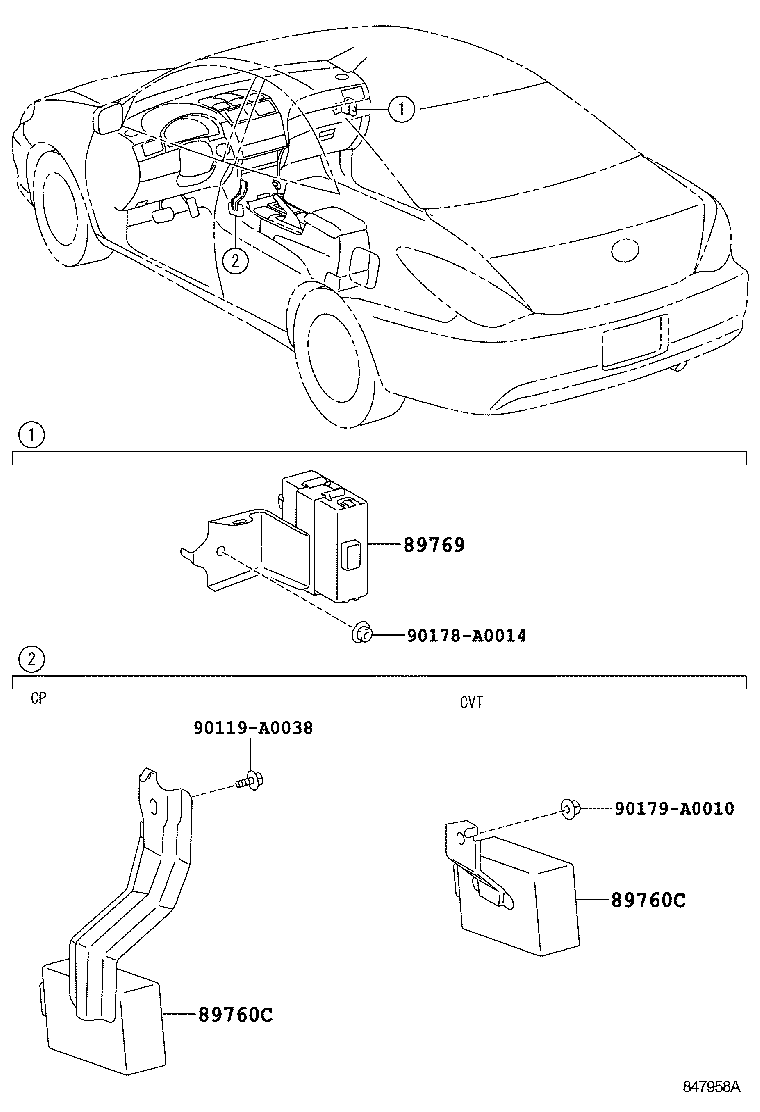

diagram 89760C 89760C 89769 90119A0038 90178A0014 90179A0010
Part # Description Qty Price
89760C - RECEIVER ASSY, TIRE PRESSURE MONITOR
89760-06030

MCV31..CVT

 1
89760C - RECEIVER ASSY, TIRE PRESSURE MONITOR
89760-06030

MCV31..CVT

 1
89769 - COMPUTER, TIRE PRESSURE MONITOR
89769-06030

MCV31..CVT

 1
89769-06040

MCV31..CVT

SPARE TIRE-GROUND TIRE(ALUMINUM)

 1
89769-06120

MCV31..CVT

 1
89769-06130

MCV31..CVT

SPARE TIRE-GROUND TIRE(ALUMINUM)

 1
Common parts
90119-A0038
90178-A0014
90179-A0010
