MCV31L-GKAGKA (2006)

Toyota Solara

Production May 2006 - Dec 2008
Engine 3MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0605- )

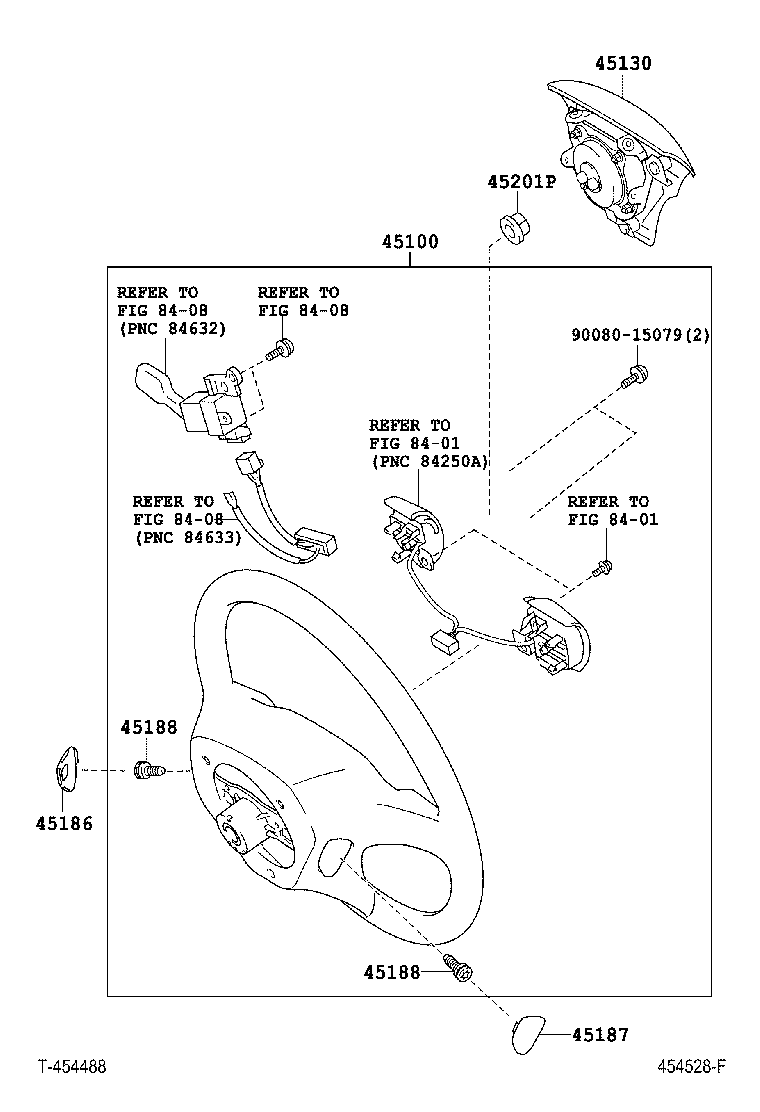

Click highlighted areas on diagram

3-SPOKE

diagram 45100 45130 45186 45187 45188 45188 45201P 8401 8401 8408 8408 8408 9008015079
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-06820B0

MCV31..SLE

3-SPOKE,LEATHER,DK. STONE,TRIM1#

 1
45100-06820A0

MCV31..SLE

3-SPOKE,LEATHER,IVORY,TRIM0#

 1
45100-06K90A0

MCV31..CVT..SLE

3-SPOKE,LEATHER,IVORY,TRIM0#

 1
45100-06K90B0

MCV31..CVT..SLE

3-SPOKE,LEATHER,DK. STONE,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-06150A0

ACV30,MCV31

IVORY,TRIM0#

 1
45130-06150B0

ACV30,MCV31..SLE

DK. STONE,TRIM1#

 1
45130-06330A0

MCV31..CVT

IVORY,TRIM0#

 1
45130-06330B0

MCV31..CVT..SLE

DK. STONE,TRIM1#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-0E010A0

ACV30,MCV31..5F,5FC

IVORY,TRIM0#

 1
45186-0E010B0

ACV30,MCV31..5FC..SLE

DK. STONE,TRIM1#

 1
45186-06130A0

MCV31..CVT

IVORY,TRIM0#

 1
45186-06130B1

MCV31..CVT..SLE

DK. STONE,TRIM1#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-0E010A0

ACV30,MCV31..5F,5FC

IVORY,TRIM0#

 1
45187-06080A0

MCV31..CVT

IVORY,TRIM0#

 1
45187-0E010B0

ACV30,MCV31..5FC..SLE

DK. STONE,TRIM1#

 1
45187-06080B1

MCV31..CVT..SLE

DK. STONE,TRIM1#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-07010

ACV30,MCV31

L=18.5

 2
45188-07010

ACV30,MCV31

L=18.5

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-07010

ACV30,MCV31

L=18.5

 2
45188-07010

ACV30,MCV31

L=18.5

 2
45201P - NUT, STEERING WHEEL SET
90080-17234

ACV30,MCV31..5F,5FC

 1
90080-17234

MCV31..CVT

 1
Common parts
90080-15079
Linked diagrams
8401
8408
