MCV31L-GKAGKA (2004)
Toyota Solara
Production
Feb 2004
-
May 2006
Engine
3MZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0307-0503)4FC ; (0307- )MCV31

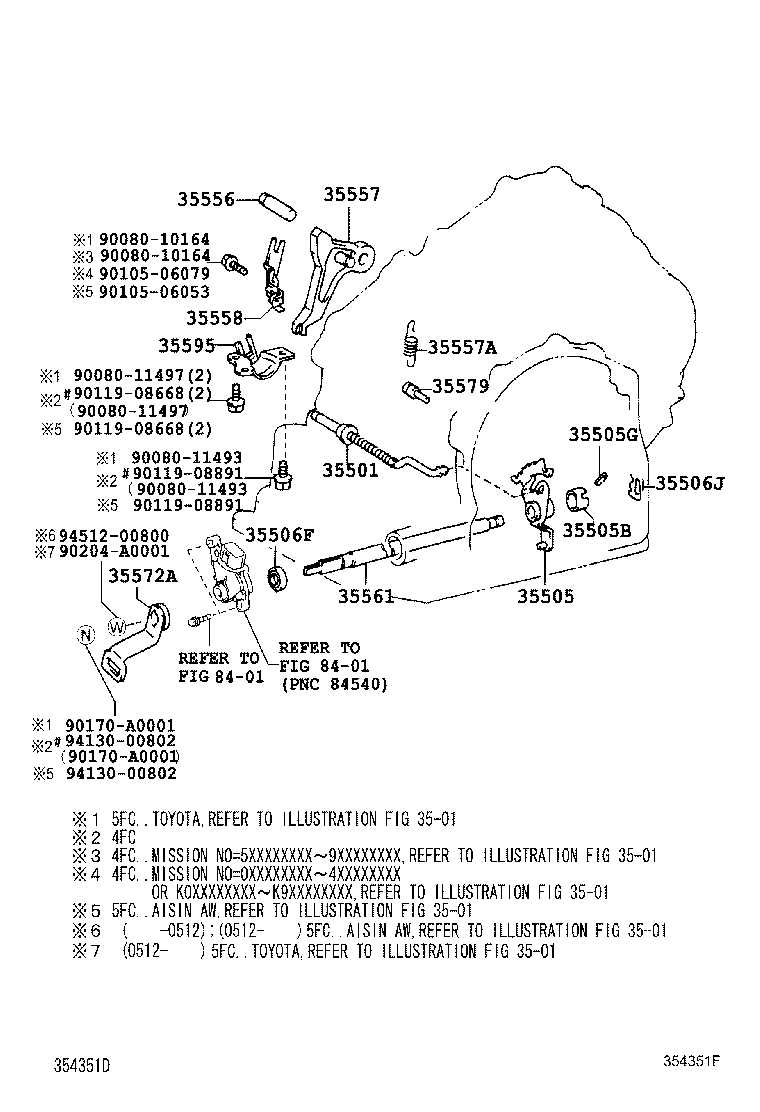

Click highlighted areas on diagram
U151E,U241E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35501 - ROD SUB-ASSY, PARKING LOCK | ||||
| 35501-21010 |
MCV31 |
1 | ||
| 35501-07010 |
MCV31 (L) |
1 | ||
| 35501-21010 |
MCV31 (J) |
1 | ||
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-21010 |
ACV30,MCV31..5FC |
1 | ||
| 35505B - SPACER (FOR MANUAL VALVE LEVER) | ||||
| 90560-20006 |
ACV30,MCV31..5FC |
1 | ||
| 35505G - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER) | ||||
| 90254-04011 |
ACV30,MCV31..4FC,5FC |
1 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-12002 |
ACV30,MCV31..5FC |
1 | ||
| 35506J - SPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90524-09001 |
ACV30,MCV31..5FC |
1 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-28010 |
MCV31 |
1 | ||
| 35556-28010 |
MCV31 AISIN:REFER 35-01 |
1 | ||
| 35556-07010 |
MCV31 TOYOTA:REFER 35-01 |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35590-21010 |
MCV31 |
1 | ||
| 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) | ||||
| 90080-50373 |
MCV31;ACV30..4FC (L) |
1 | ||
| 90506-18077 |
ACV30,MCV31..5FC |
1 | ||
| 90506-18077 |
MCV31;ACV30..4FC (J) |
1 | ||
| 35558 - CLAMP, PAWL SHAFT | ||||
| 35558-21010 |
MCV31 TOYOTA:REFER 35-01 |
1 | ||
| 35558-28010 |
MCV31 AISIN:REFER 35-01 |
1 | ||
| 35561 - SHAFT, MANUAL VALVE LEVER | ||||
| 35561-21010 |
ACV30,MCV31..5FC |
1 | ||
| 35572A - LEVER, TRANSMISSION CONTROL SHAFT | ||||
| 35572-08010 |
MCV31 (L)TOYOTA:REFER35-01 |
1 | ||
| 35572-48010 |
MCV31 (J)TOYOTA:REFER35-01 |
1 | ||
| 35572-28100 |
MCV31 AISIN:REFER 35-01 |
1 | ||
| 35579 - PIN, PARKING LOCK PAWL | ||||
| 35594-21010 |
MCV31 TOYOTA:REFER 35-01 |
1 | ||
| 35594-28010 |
MCV31 AISIN:REFER 35-01 |
1 | ||
| 35594-07010 |
MCV31 TOYOTA:REFER 35-01 |
1 | ||
| 35595 - BRACKET, PARKING LOCK PAWL | ||||
| 35595-21010 |
ACV30,MCV31..5FC |
1 | ||
| Common parts | ||||
| 90080-10164 | ||||
| 90080-11493 | ||||
| 90080-11497 | ||||
| 90105-06053 | ||||
| 90105-06079 | ||||
| 90119-08668 | ||||
| 90119-08891 | ||||
| 90170-A0001 | ||||
| 90204-A0001 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
