MCV31L-GCANKA (2003)

Toyota Solara

Production Jul 2003 - May 2006
Engine 3MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(0307- )

Click highlighted areas on diagram

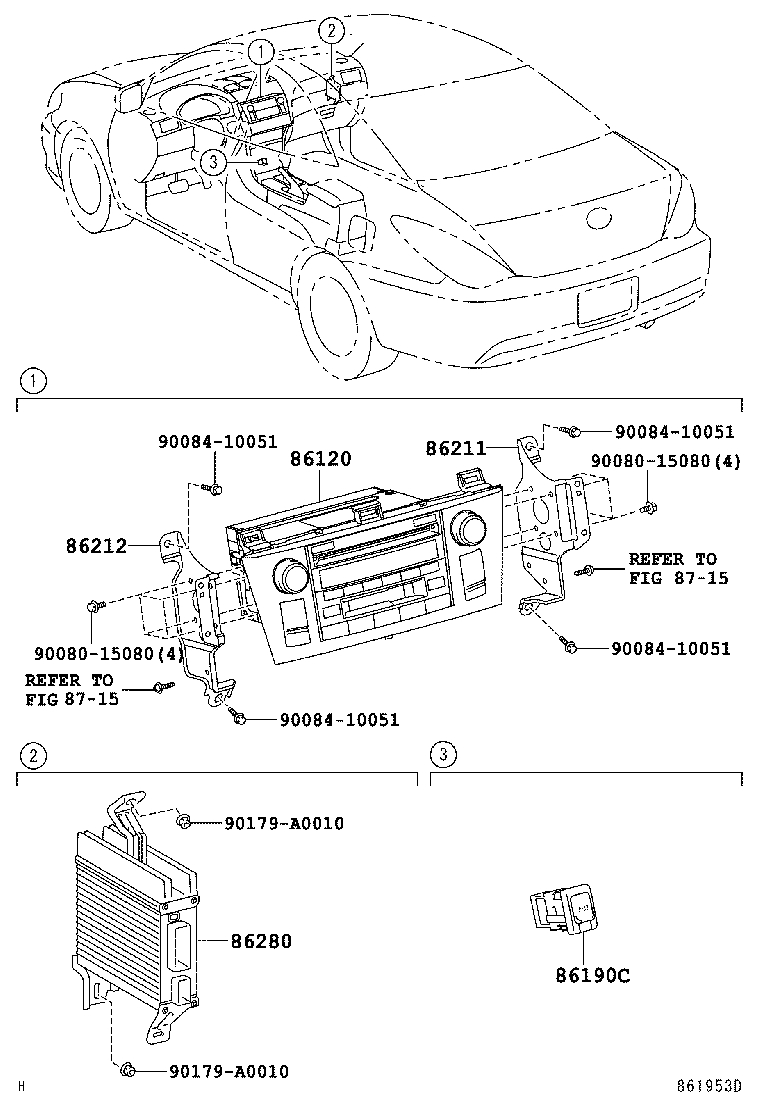

diagram 86120 86190C 86211 86212 86280 8715 8715 9008015080 9008015080 9008410051 9008410051 9008410051 9008410051 90179A0010 90179A0010
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-AA140

ACV30,MCV31..(5F,5FC)..SE

PANASONIC,ID=A51806

 1
86120-AA120

ACV30,MCV31..CP..(5F,5FC)..SE

PANASONIC,ID=56831,AUDIO-PREMIUM IN-DASH 6 CHANGER

 1
86120-AA120

ACV30,MCV31..CP..(5F,5FC)..SE

PANASONIC,ID=56831,TYPE A:REFER TO ILLUSTRATION

 1
86120-AA140

ACV30,MCV31..(5F,5FC)..SE

PANASONIC,ID=A51806,TYPE B:REFER TO ILLUSTRATION

 1
86211 - BRACKET, RADIO, NO.1
86211-AA030

ACV30,MCV31..5F,5FC

 1
86212 - BRACKET, RADIO, NO.2
86212-AA030

ACV30,MCV31..5F,5FC

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-AA080

ACV30,MCV31..CP..(5F,5FC)..SE

AUDIO-PREMIUM IN-DASH 6 CHANGER

 1
Common parts
90080-15080
90084-10051
90179-A0010
Linked diagrams
8715

ILLUST NO. 2 OF 3(0307- )

Click highlighted areas on diagram

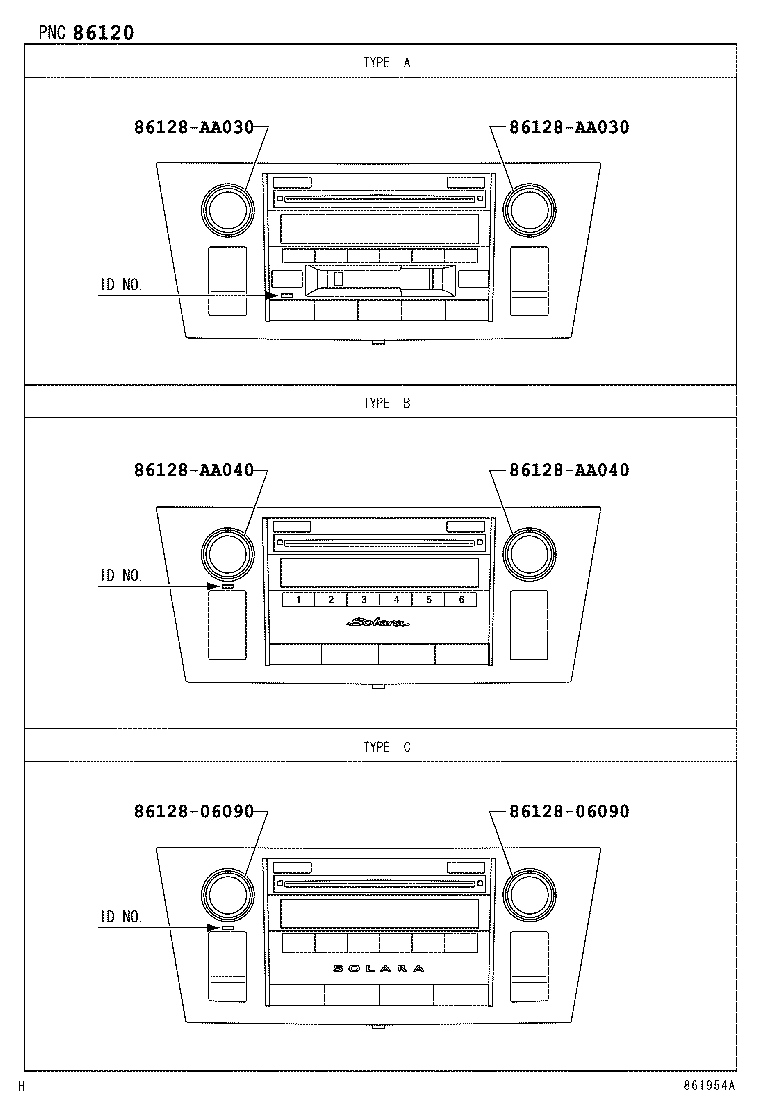

diagram 86120 8612806090 8612806090 86128AA030 86128AA030 86128AA040 86128AA040
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-AA140

ACV30,MCV31..(5F,5FC)..SE

PANASONIC,ID=A51806

 1
86120-AA120

ACV30,MCV31..CP..(5F,5FC)..SE

PANASONIC,ID=56831,AUDIO-PREMIUM IN-DASH 6 CHANGER

 1
86120-AA120

ACV30,MCV31..CP..(5F,5FC)..SE

PANASONIC,ID=56831,TYPE A:REFER TO ILLUSTRATION

 1
86120-AA140

ACV30,MCV31..(5F,5FC)..SE

PANASONIC,ID=A51806,TYPE B:REFER TO ILLUSTRATION

 1
Common parts
86128-06090
86128-AA030
86128-AA040

ILLUST NO. 3 OF 3(0307- )

Click highlighted areas on diagram

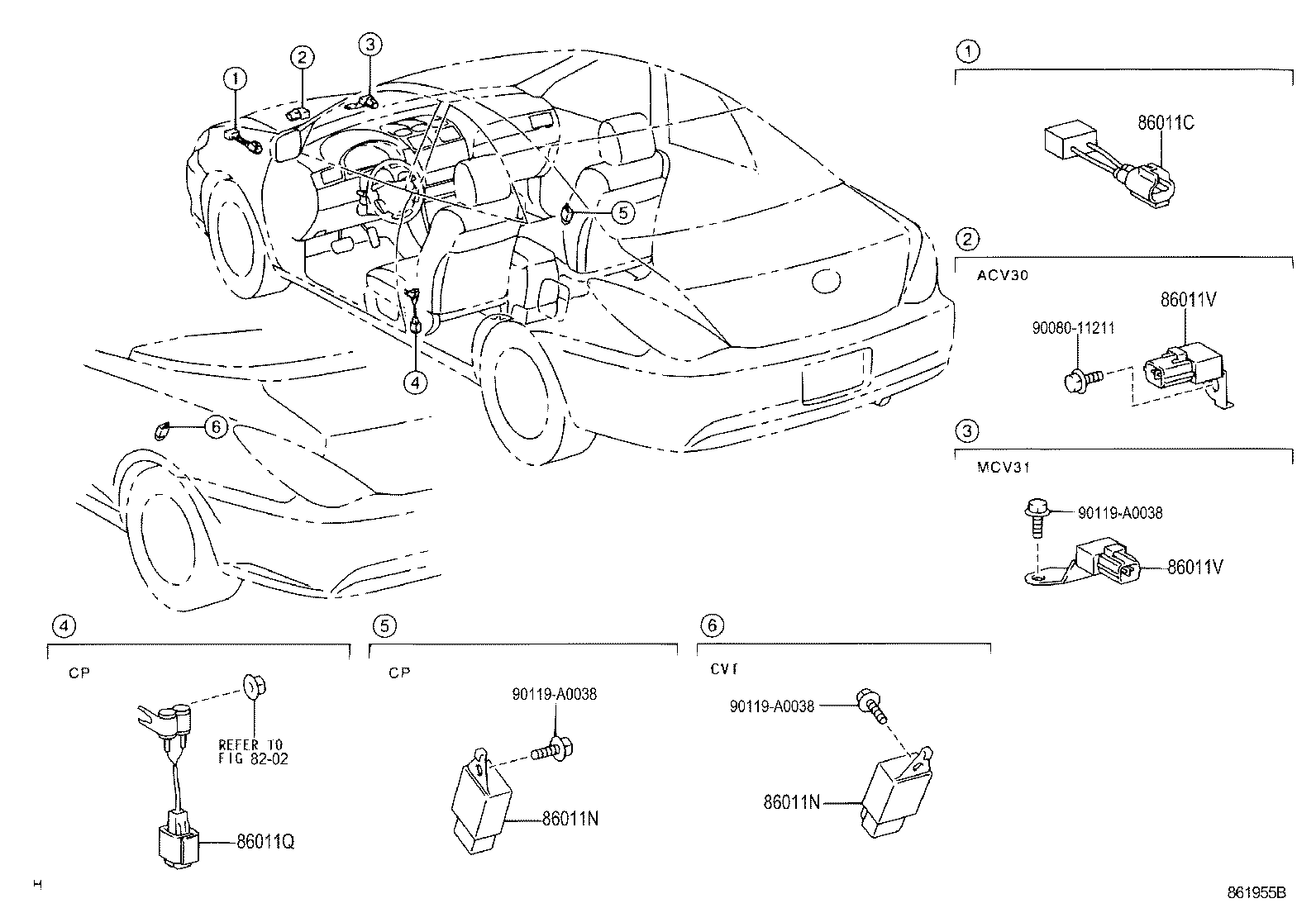

CONDENSER

diagram 8202 86011C 86011N 86011N 86011Q 86011V 86011V 9008011211 90119A0038 90119A0038 90119A0038
Part # Description Qty Price
86011C - FILTER, NOISE
90980-A4001

ACV30,MCV31

 1
86011N - FILTER, NOISE
90980-A4002

ACV30,MCV31..5F,5FC

 1
86011N - FILTER, NOISE
90980-A4002

ACV30,MCV31..5F,5FC

 1
86011Q - CONDENSER, RADIO SETTING
90980-04129

ACV30,MCV31..CP..(5F,5FC)

 1
86011V - CONDENSER, RADIO SETTING
90980-04153

MCV31

 1
86011V - CONDENSER, RADIO SETTING
90980-04153

MCV31

 1
Common parts
90080-11211
90119-A0038
Linked diagrams
8202
