Toyota Solara MCV20 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
US
SOLARA
MCV20L-GCPNKK (1998)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

MCV20L-GCPNKK (1998)

Toyota Solara

Production Jun 1998 - Dec 2002

Engine 1MZFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

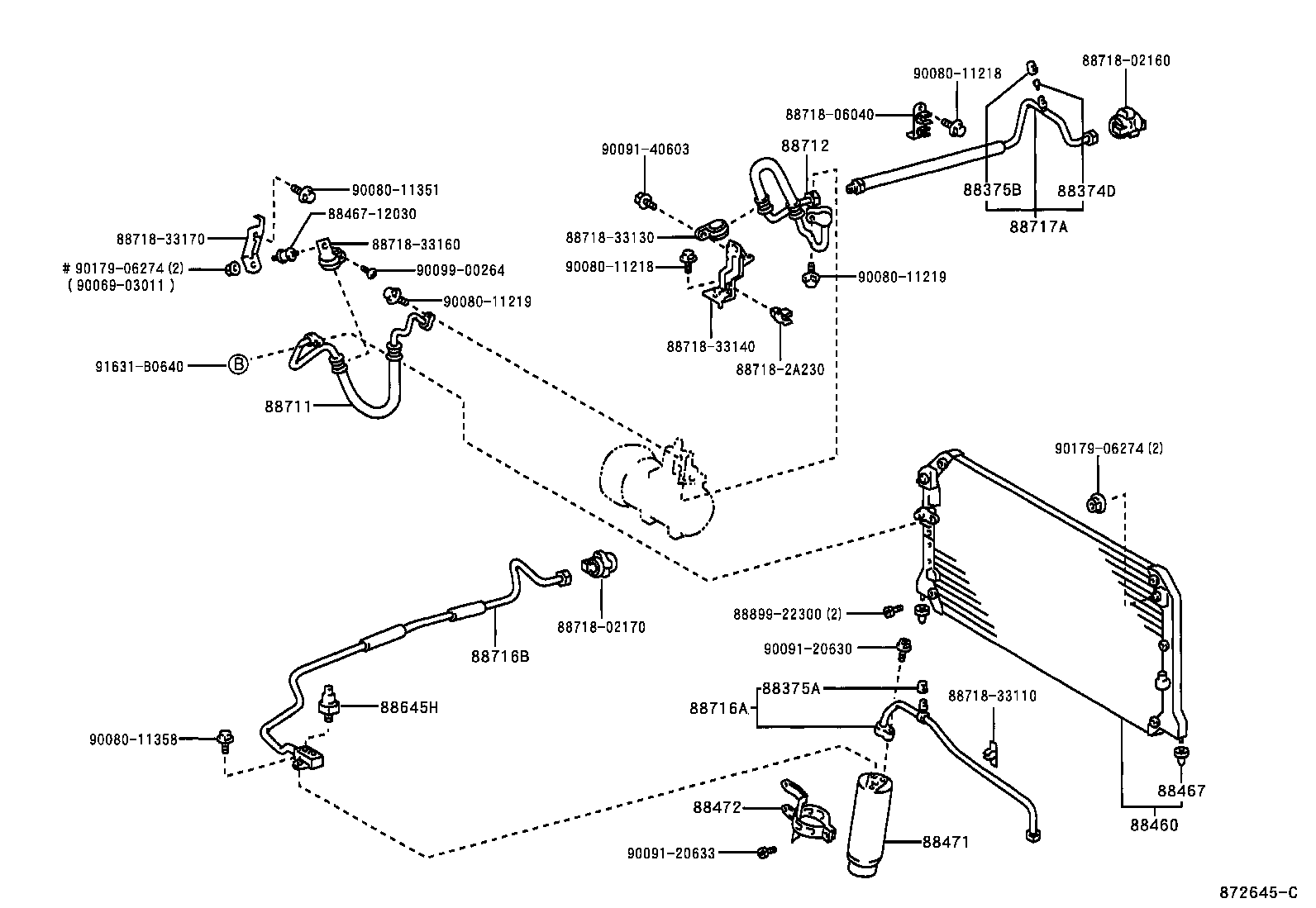

ILLUST NO. 1 OF 2(9806-0107)

Click highlighted areas on diagram

Part #	Description	Period	Qty
88374D - VALVE, SERVICE NO.3
88374-30010	MCV20,SXV20	06/1998 - 07/2002	1
88374-30010	MCV20	07/2002 - 12/2002	1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	ACV20,MCV20	07/2002 - 12/2002	1
88375-30280	ACV20,MCV20,SXV20	06/1998 - 07/2002	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	MCV20,SXV20	06/1998 - 07/2002	1
88375-30290	MCV20	07/2002 - 12/2002	1
88460 - CONDENSER ASSY, COOLER
88460-06050	ACV20,MCV20	07/2002 - 12/2002	1
88460-06050	ACV20,MCV20,SXV20	06/1998 - 07/2002	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-06030	ACV20,MCV20,SXV20	06/1998 - 07/2002	2
88467-06030	ACV20,MCV20	07/2002 - 12/2002	2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-34010	ACV20,MCV20,SXV20	06/1998 - 07/2002	1
88471-34010	ACV20,MCV20	07/2002 - 12/2002	1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-06030	ACV20,MCV20	07/2002 - 12/2002	1
88473-06030	ACV20,MCV20,SXV20	06/1998 - 07/2002	1
88645H - SWITCH, PRESSURE NO.1
88645-06020	MCV20,SXV20	06/1998 - 07/2002	1
88645-06020	MCV20	07/2002 - 12/2002	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-06081	MCV20	06/1998 - 07/2002	1
88711-06081	MCV20	07/2002 - 12/2002	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-06020	MCV20	07/2002 - 12/2002	1
88712-06020	MCV20	06/1998 - 07/2002	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-06150	ACV20,MCV20	07/2002 - 12/2002	1
88716-06150	ACV20,MCV20,SXV20	06/1998 - 07/2002	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-06160	MCV20,SXV20	06/1998 - 07/2002	1
88716-06160	MCV20	07/2002 - 12/2002	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-06060	MCV20	07/2002 - 12/2002	1
88717-06060	MCV20,SXV20	06/1998 - 07/2002	1
Common parts
88467-12030
88718-02160
88718-02170
88718-06040
88718-2A230
88718-33110
88718-33130
88718-33140
88718-33160
88718-33170
88899-22300
90069-03011
90080-11218
90080-11219
90080-11351
90080-11358
90091-20630
90091-20633
90091-40603
90099-00264
90179-06274
91631-B0640

ILLUST NO. 2 OF 2(9806-0107)

Click highlighted areas on diagram

O RING

Part #	Description	Period	Qty	Price
Common parts
90069-08007
90069-08009
90069-08011
90069-08012
90099-14119
90099-14120
90099-14121
90099-14122

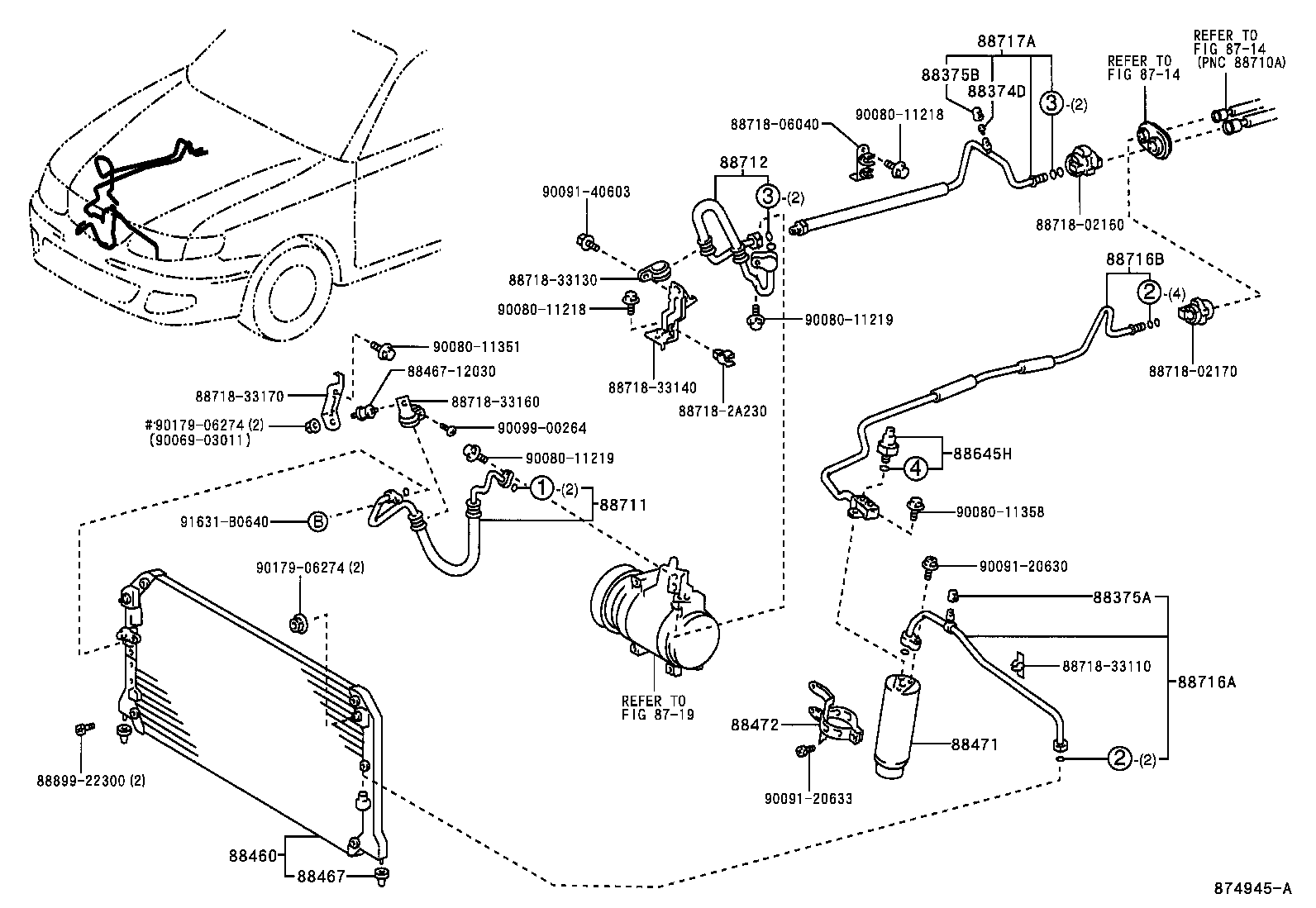

ILLUST NO. 1 OF 2(0107- )MCV20

Click highlighted areas on diagram

Part #	Description	Period	Qty
88374D - VALVE, SERVICE NO.3
88374-30010	MCV20,SXV20	06/1998 - 07/2002	1
88374-30010	MCV20	07/2002 - 12/2002	1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	ACV20,MCV20	07/2002 - 12/2002	1
88375-30280	ACV20,MCV20,SXV20	06/1998 - 07/2002	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	MCV20,SXV20	06/1998 - 07/2002	1
88375-30290	MCV20	07/2002 - 12/2002	1
88460 - CONDENSER ASSY, COOLER
88460-06050	ACV20,MCV20	07/2002 - 12/2002	1
88460-06050	ACV20,MCV20,SXV20	06/1998 - 07/2002	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-06030	ACV20,MCV20,SXV20	06/1998 - 07/2002	2
88467-06030	ACV20,MCV20	07/2002 - 12/2002	2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-34010	ACV20,MCV20,SXV20	06/1998 - 07/2002	1
88471-34010	ACV20,MCV20	07/2002 - 12/2002	1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-06030	ACV20,MCV20	07/2002 - 12/2002	1
88473-06030	ACV20,MCV20,SXV20	06/1998 - 07/2002	1
88645H - SWITCH, PRESSURE NO.1
88645-06020	MCV20,SXV20	06/1998 - 07/2002	1
88645-06020	MCV20	07/2002 - 12/2002	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-06081	MCV20	06/1998 - 07/2002	1
88711-06081	MCV20	07/2002 - 12/2002	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-06020	MCV20	07/2002 - 12/2002	1
88712-06020	MCV20	06/1998 - 07/2002	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-06150	ACV20,MCV20	07/2002 - 12/2002	1
88716-06150	ACV20,MCV20,SXV20	06/1998 - 07/2002	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-06160	MCV20,SXV20	06/1998 - 07/2002	1
88716-06160	MCV20	07/2002 - 12/2002	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-06060	MCV20	07/2002 - 12/2002	1
88717-06060	MCV20,SXV20	06/1998 - 07/2002	1
Common parts
88467-12030
88718-02160
88718-02170
88718-06040
88718-2A230
88718-33110
88718-33130
88718-33140
88718-33160
88718-33170
88899-22300
90069-03011
90080-11218
90080-11219
90080-11351
90080-11358
90091-20630
90091-20633
90091-40603
90099-00264
90179-06274
91631-B0640
Linked diagrams
8714
8719

ILLUST NO. 2 OF 2(0107- )

Click highlighted areas on diagram

O RING

Part #	Description	Period	Qty	Price
Common parts
90069-08007
90069-08009
90069-08011
90069-08012
90099-14119
90099-14120
90099-14121
90099-14122
