MCV20L-GCPNKK (1998)

Toyota Solara

Production Jun 1998 - Dec 2002
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9806- )MCV20..ATM

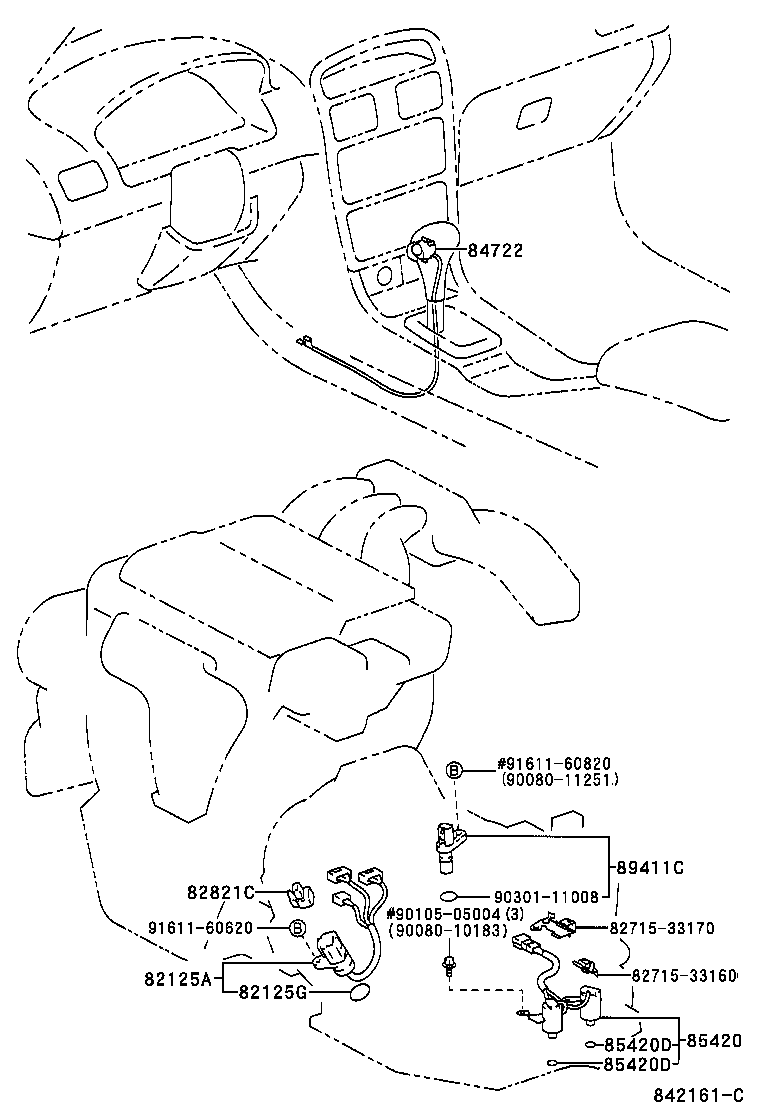

Click highlighted areas on diagram

diagram 82125A 82125G 8271533160 8271533170 82821C 84722 85420 85420D 85420D 89411C 9008010183 9008011251 9010505004 9030111008 9161160620 9161160820
Part # Description Qty Price
82125A - WIRE, TRANSMISSION
82125-33010

MCV20..ATM

 1
82125G - RING, O(FOR TRANSMISSION WIRE)
90301-21009

ACV20,MCV20..ATM

 1
82821C - COVER, CONNECTOR
82821-33050

MCV20..ATM

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-06030C0

MCV20,SXV20..ATM

BLACK,TRIM0#,1#

 1
84722-06040C0

ACV20,MCV20,SXV20..ATM

BLACK,TRIM0#,1#

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-33010

MCV20..ATM

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

MCV20..ATM

 2
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

MCV20..ATM

 2
89411C - SENSOR, SPEED
89411-33010

MCV20..ATM

TOYOTA

 1
89413-24010

MCV20..ATM

AISIN

 1
Common parts
82715-33160
82715-33170
90080-10183
90080-11251
90105-05004
90301-11008
91611-60620
91611-60820
