MCV20L-GCPNKK (1998)
Toyota Solara

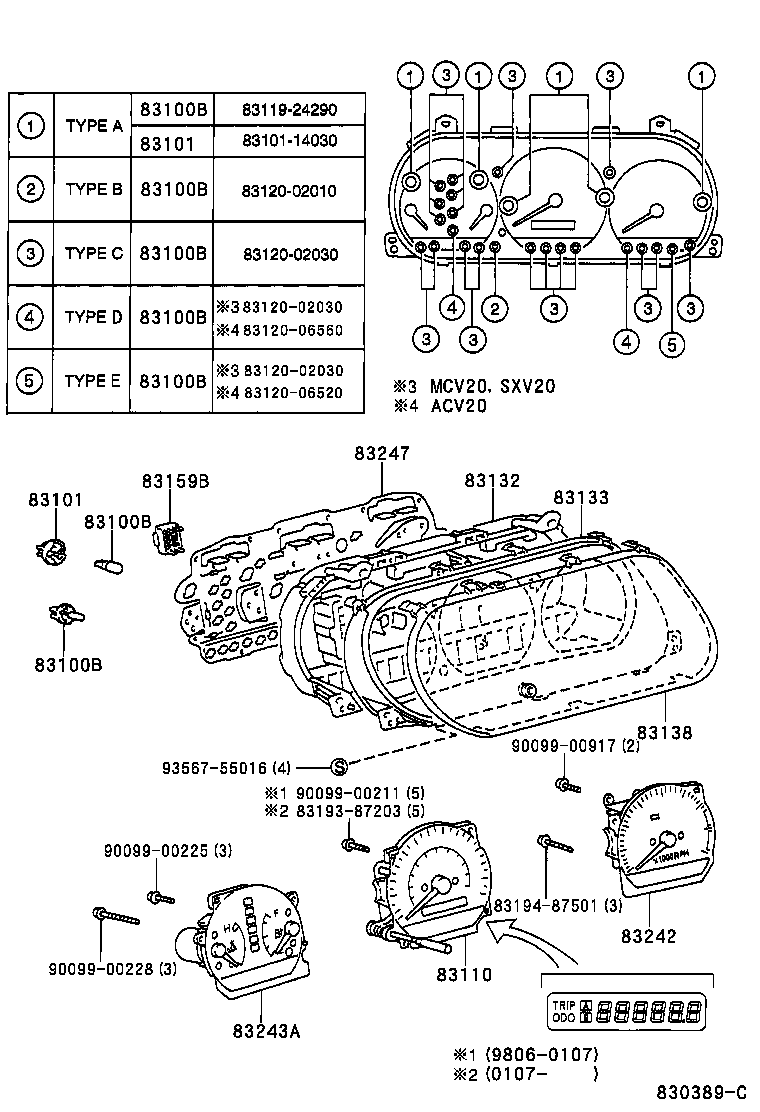

ILLUST NO. 1 OF 2(9806- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-02030 |
SXV20;MCV20..ATM;MCV20..MTM..USA 14V 1.4W,W(SOCKET),TYPE C OR TYPE D OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83119-24290 |
SXV20;MCV20..ATM;MCV20..MTM..USA 14V 3.78W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83119-24290 |
ACV20,MCV20 14V 3.78W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-02010 |
SXV20;MCV20..ATM;MCV20..MTM..USA 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-02010 |
ACV20,MCV20 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-24290 |
ACV20,MCV20 14V 3.78W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCV20 14V 1.4W,W(SOCKET),TYPE C OR TYPE D OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83120-02010 |
ACV20,MCV20 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCV20 14V 1.4W,W(SOCKET),TYPE C OR TYPE D OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-02030 |
SXV20;MCV20..ATM;MCV20..MTM..USA 14V 1.4W,W(SOCKET),TYPE C OR TYPE D OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83119-24290 |
SXV20;MCV20..ATM;MCV20..MTM..USA 14V 3.78W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83119-24290 |
ACV20,MCV20 14V 3.78W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-02010 |
SXV20;MCV20..ATM;MCV20..MTM..USA 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-02010 |
ACV20,MCV20 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-24290 |
ACV20,MCV20 14V 3.78W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCV20 14V 1.4W,W(SOCKET),TYPE C OR TYPE D OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83120-02010 |
ACV20,MCV20 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCV20 14V 1.4W,W(SOCKET),TYPE C OR TYPE D OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-02030 |
SXV20;MCV20..ATM;MCV20..MTM..USA 14V 1.4W,W(SOCKET),TYPE C OR TYPE D OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83119-24290 |
SXV20;MCV20..ATM;MCV20..MTM..USA 14V 3.78W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83119-24290 |
ACV20,MCV20 14V 3.78W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-02010 |
SXV20;MCV20..ATM;MCV20..MTM..USA 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-02010 |
ACV20,MCV20 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-24290 |
ACV20,MCV20 14V 3.78W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCV20 14V 1.4W,W(SOCKET),TYPE C OR TYPE D OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83120-02010 |
ACV20,MCV20 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCV20 14V 1.4W,W(SOCKET),TYPE C OR TYPE D OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-02030 |
SXV20;MCV20..ATM;MCV20..MTM..USA 14V 1.4W,W(SOCKET),TYPE C OR TYPE D OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83119-24290 |
SXV20;MCV20..ATM;MCV20..MTM..USA 14V 3.78W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83119-24290 |
ACV20,MCV20 14V 3.78W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-02010 |
SXV20;MCV20..ATM;MCV20..MTM..USA 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-02010 |
ACV20,MCV20 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-24290 |
ACV20,MCV20 14V 3.78W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCV20 14V 1.4W,W(SOCKET),TYPE C OR TYPE D OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83120-02010 |
ACV20,MCV20 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCV20 14V 1.4W,W(SOCKET),TYPE C OR TYPE D OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-02030 |
SXV20;MCV20..ATM;MCV20..MTM..USA 14V 1.4W,W(SOCKET),TYPE C OR TYPE D OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83119-24290 |
SXV20;MCV20..ATM;MCV20..MTM..USA 14V 3.78W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83119-24290 |
ACV20,MCV20 14V 3.78W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-02010 |
SXV20;MCV20..ATM;MCV20..MTM..USA 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-02010 |
ACV20,MCV20 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-24290 |
ACV20,MCV20 14V 3.78W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCV20 14V 1.4W,W(SOCKET),TYPE C OR TYPE D OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83120-02010 |
ACV20,MCV20 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCV20 14V 1.4W,W(SOCKET),TYPE C OR TYPE D OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-02030 |
SXV20;MCV20..ATM;MCV20..MTM..USA 14V 1.4W,W(SOCKET),TYPE C OR TYPE D OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83119-24290 |
SXV20;MCV20..ATM;MCV20..MTM..USA 14V 3.78W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83119-24290 |
ACV20,MCV20 14V 3.78W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-02010 |
SXV20;MCV20..ATM;MCV20..MTM..USA 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-02010 |
ACV20,MCV20 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-24290 |
ACV20,MCV20 14V 3.78W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCV20 14V 1.4W,W(SOCKET),TYPE C OR TYPE D OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83120-02010 |
ACV20,MCV20 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCV20 14V 1.4W,W(SOCKET),TYPE C OR TYPE D OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-02030 |
SXV20;MCV20..ATM;MCV20..MTM..USA 14V 1.4W,W(SOCKET),TYPE C OR TYPE D OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83119-24290 |
SXV20;MCV20..ATM;MCV20..MTM..USA 14V 3.78W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83119-24290 |
ACV20,MCV20 14V 3.78W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-02010 |
SXV20;MCV20..ATM;MCV20..MTM..USA 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-02010 |
ACV20,MCV20 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-24290 |
ACV20,MCV20 14V 3.78W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCV20 14V 1.4W,W(SOCKET),TYPE C OR TYPE D OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83120-02010 |
ACV20,MCV20 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCV20 14V 1.4W,W(SOCKET),TYPE C OR TYPE D OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
SXV20;MCV20..ATM;MCV20..MTM..USA TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101-14030 |
ACV20,MCV20 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101-14030 |
ACV20,MCV20 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
SXV20;MCV20..ATM;MCV20..MTM..USA TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101-14030 |
ACV20,MCV20 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101-14030 |
ACV20,MCV20 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-06110 |
ACV20,MCV20..CND |
1 | ||
| 83220-06070 |
MCV20,SXV20..CND |
1 | ||
| 83220-06110 |
ACV20,MCV20..CND |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-06050 |
ACV20,MCV20,SXV20..ATM |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-06010 |
SXV20;MCV20..ATM;MCV20..MTM..USA |
1 | ||
| 83811-06010 |
ACV20,MCV20 |
1 | ||
| 83811-06010 |
ACV20,MCV20 |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-06010 |
SXV20;MCV20..ATM;MCV20..MTM..USA |
1 | ||
| 83852-06010 |
ACV20,MCV20 |
1 | ||
| 83852-06010 |
ACV20,MCV20 |
1 | ||
| 83159B - RELAY ASSY, METER | ||||
| 83159-22170 |
SXV20;MCV20..ATM;MCV20..MTM..USA |
1 | ||
| 83159-22170 |
ACV20,MCV20 |
1 | ||
| 83159-22170 |
ACV20,MCV20 |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-06740 |
MCV20..CND |
1 | ||
| 83881-06360 |
MCV20..ATM..CND |
1 | ||
| 83881-06740 |
MCV20..CND |
1 | ||
| 83881-06430 |
MCV20..ATM..CND SECURITY |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-06370 |
MCV20,SXV20..ATM |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-06050 |
MCV20,SXV20..ATM |
1 | ||
| Common parts | ||||
| 83193-87203 | ||||
| 83194-87501 | ||||
| 90099-00211 | ||||
| 90099-00225 | ||||
| 90099-00228 | ||||
| 90099-00917 | ||||
| 93567-55016 | ||||

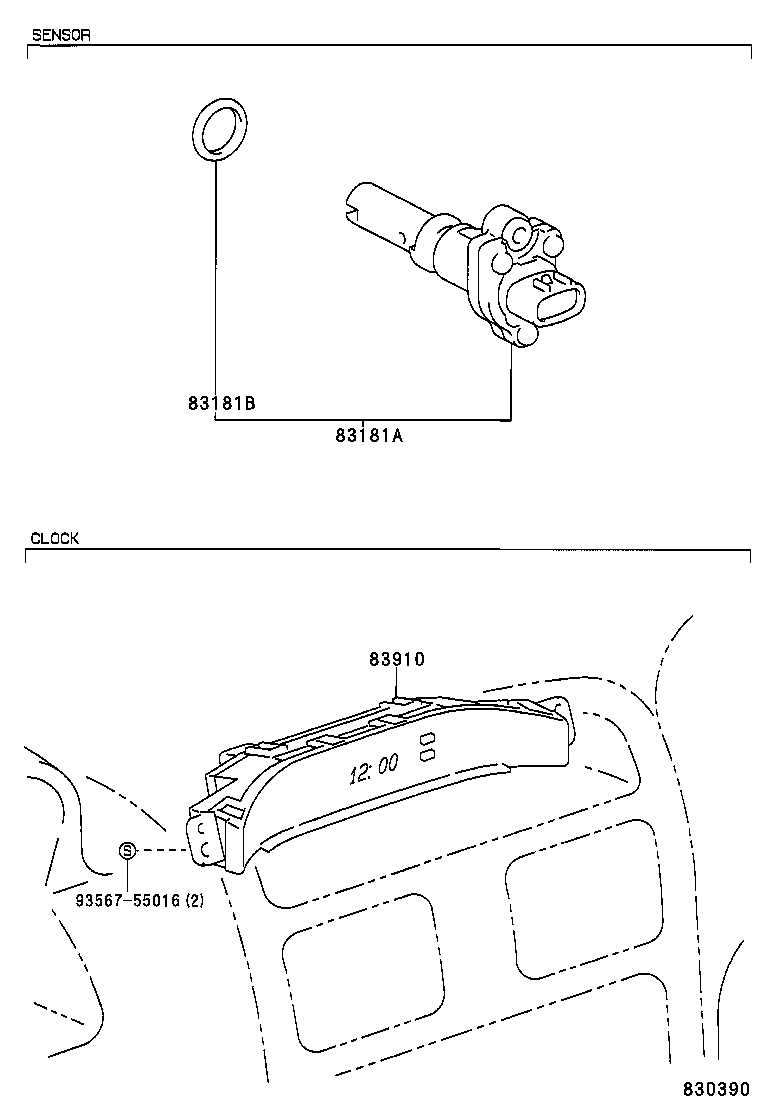

ILLUST NO. 2 OF 2(9806- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12040 |
ACV20,MCV20,SXV20..ATM |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24018 |
MCV20..ATM;ACV20,SXV20 |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-AA020 |
ACV20,MCV20,SXV20 |
1 | ||
| Common parts | ||||
| 93567-55016 | ||||
