MCV20L-GCPNKK (1998)
Toyota Solara
Production
Jun 1998
-
Dec 2002
Engine
1MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9806- )MCV20,SXV20

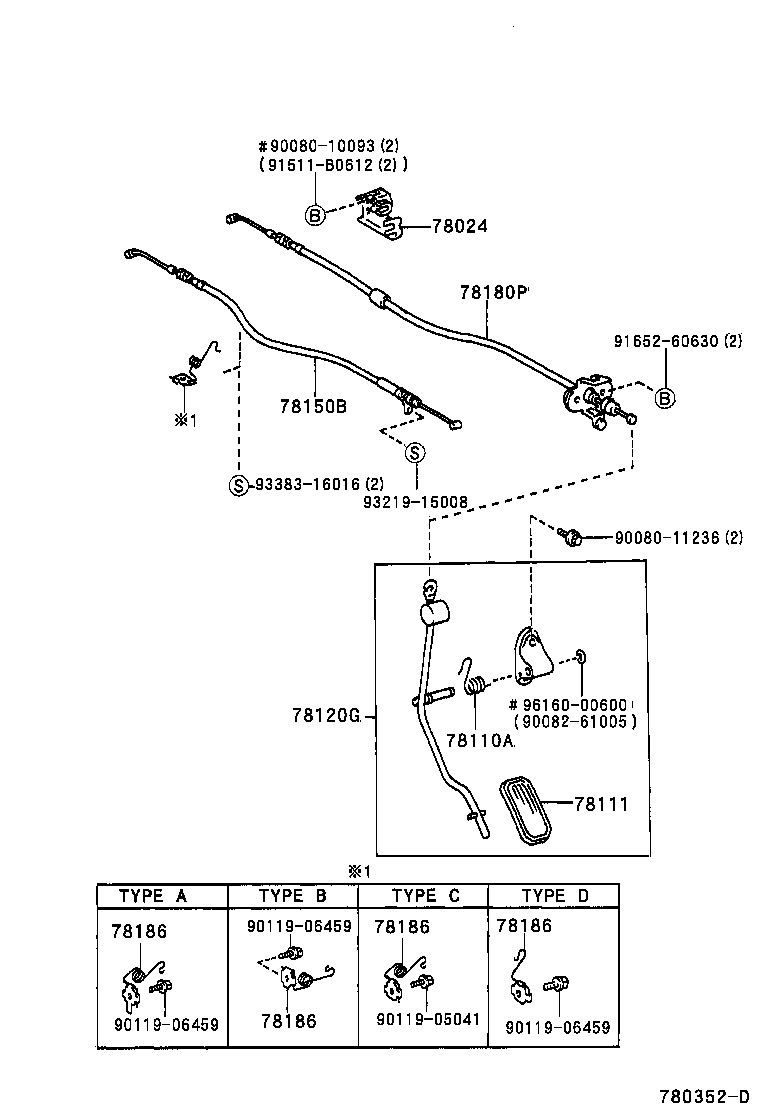

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90080-50169 |
MCV20,SXV20..ATM |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-06010 |
MCV20 |
1 | ||
| 78111-06010 |
MCV20,SXV20 |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-06010 |
MCV20,SXV20..ATM |
1 | ||
| 78150B - CABLE ASSY, ACCELERATOR AUTO DRIVE | ||||
| 78150-06010 |
MCV20 (L) |
1 | ||
| 78150-06010 |
MCV20 (L) |
1 | ||
| 78150-33080 |
MCV20 (J) |
1 | ||
| 78150-33080 |
MCV20 (J) |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-06140 |
MCV20 |
1 | ||
| 78180-06140 |
MCV20 |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-33060 |
MCV20..CP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 78186-33060 |
MCV20..CP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-33060 |
MCV20..CP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 78186-33060 |
MCV20..CP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-33060 |
MCV20..CP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 78186-33060 |
MCV20..CP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-33060 |
MCV20..CP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 78186-33060 |
MCV20..CP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| Common parts | ||||
| 90080-10093 | ||||
| 90080-11236 | ||||
| 90082-61005 | ||||
| 90119-05041 | ||||
| 90119-06459 | ||||
| 91511-B0612 | ||||
| 91652-60630 | ||||
| 93219-15008 | ||||
| 93383-16016 | ||||
| 96160-00600 | ||||
