MCV20L-GCPNKK (1998)

Toyota Solara

Production Jun 1998 - Dec 2002
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9806- )

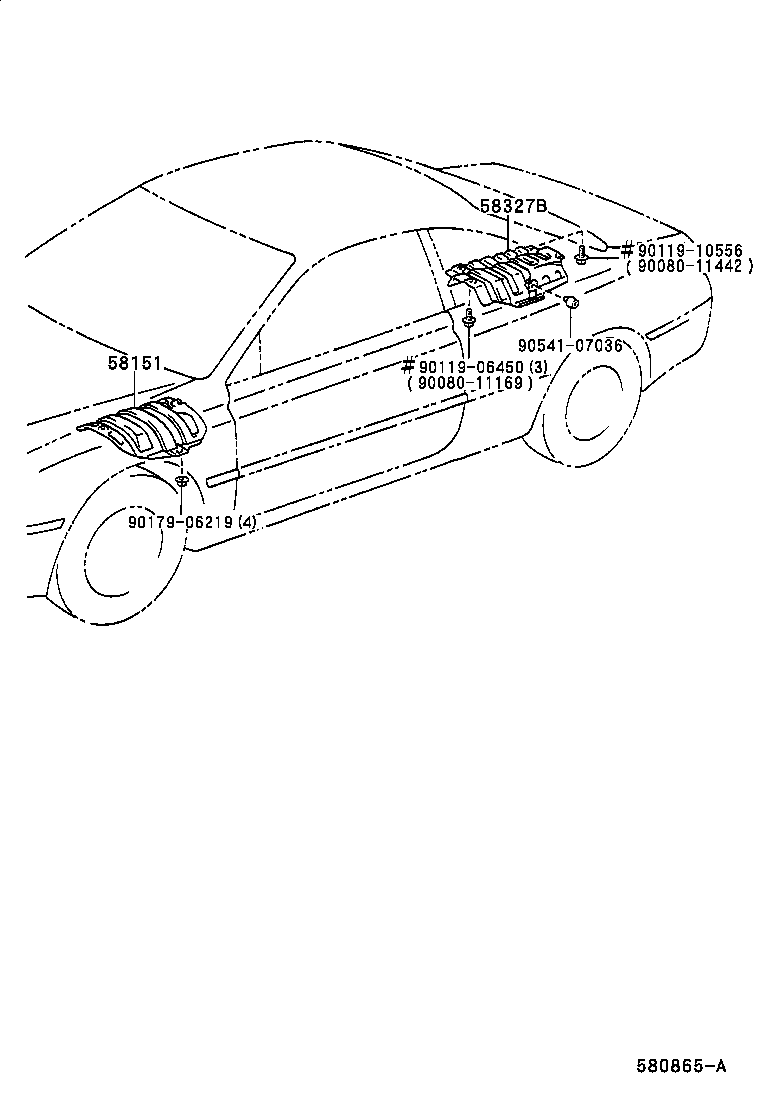

Click highlighted areas on diagram

diagram 58151 58327B 9008011169 9008011442 9011906450 9011910556 9017906219 9054107036
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58152-06010

ACV20,MCV20,SXV20

 1
58152-06010

ACV20,MCV20

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-06010

ACV20,MCV20

 1
58327-06010

ACV20,MCV20,SXV20

 1
Common parts
90080-11169
90080-11442
90119-06450
90119-10556
90179-06219
90541-07036
