MCV20L-GCPNKK (1998)
Toyota Solara
Production
Jun 1998
-
Dec 2002
Engine
1MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9806- )

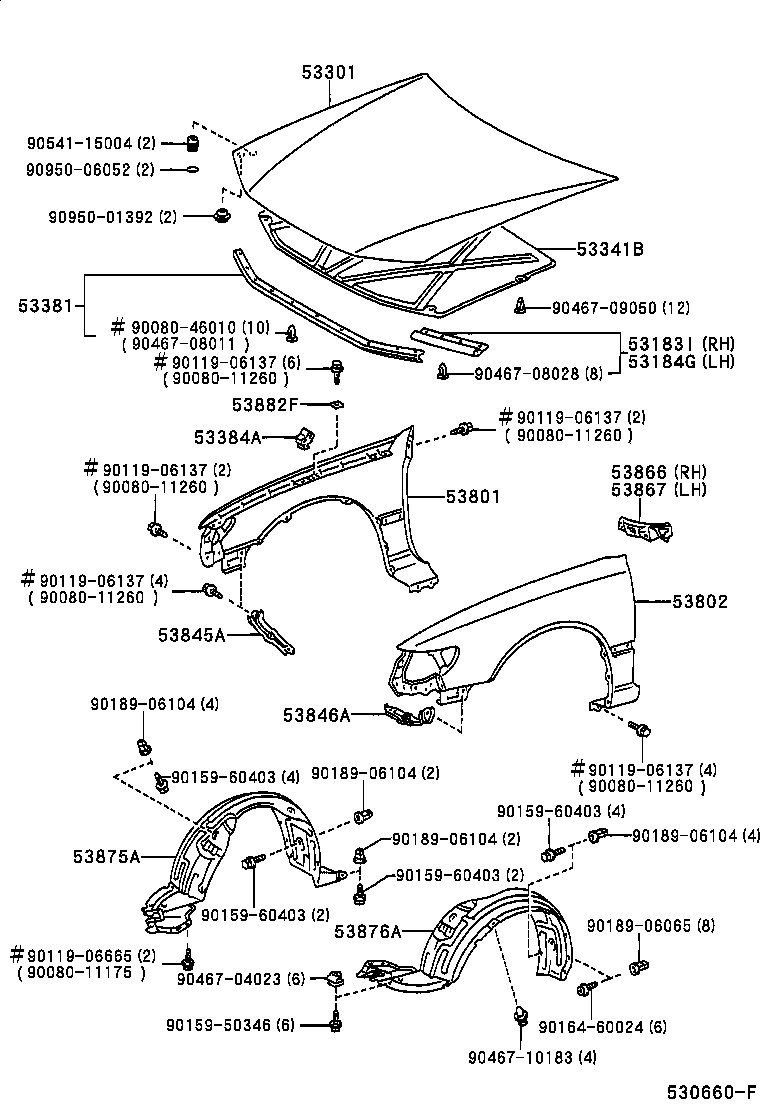

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53183I - SEAL, HEADLAMP COVER, RH | ||||
| 53183-06020 |
ACV20,MCV20 |
1 | ||
| 53183-06020 |
ACV20,MCV20,SXV20 |
1 | ||
| 53184G - SEAL, HEADLAMP COVER, LH | ||||
| 53184-06020 |
ACV20,MCV20 |
1 | ||
| 53184-06020 |
ACV20,MCV20,SXV20 |
1 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-06030 |
ACV20,MCV20,SXV20 |
1 | ||
| 53301-06030 |
ACV20,MCV20 |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-06050 |
MCV20 |
1 | ||
| 53341-06050 |
MCV20,SXV20 |
1 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-06020 |
ACV20,MCV20,SXV20 |
1 | ||
| 53381-06020 |
ACV20,MCV20 |
1 | ||
| 53384A - BUMPER, FENDER TO HOOD | ||||
| 53384-AA010 |
ACV20,MCV20,SXV20 |
2 | ||
| 53384-AA010 |
ACV20,MCV20 |
2 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-06050 |
ACV20,MCV20,SXV20..CP |
1 | ||
| 53801-06050 |
ACV20,MCV20..CP |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-06050 |
ACV20,MCV20,SXV20..CP |
1 | ||
| 53802-06050 |
ACV20,MCV20..CP |
1 | ||
| 53845A - BRACE, FRONT WHEEL OPENING APRON, RH | ||||
| 53845-06010 |
ACV20,MCV20,SXV20 |
1 | ||
| 53845-06010 |
ACV20,MCV20 |
1 | ||
| 53846A - BRACE, FRONT WHEEL OPENING APRON, LH | ||||
| 53846-06010 |
ACV20,MCV20,SXV20 |
1 | ||
| 53846-06010 |
ACV20,MCV20 |
1 | ||
| 53866 - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-06010 |
ACV20,MCV20,SXV20..CP |
1 | ||
| 53866-06010 |
ACV20,MCV20..CP |
1 | ||
| 53867 - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-06010 |
ACV20,MCV20,SXV20..CP |
1 | ||
| 53867-06010 |
ACV20,MCV20..CP |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-06030 |
MCV20,SXV20 |
1 | ||
| 53875-06040 |
ACV20,MCV20 |
1 | ||
| 53875-06040 |
ACV20,MCV20 |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-06040 |
ACV20,MCV20 |
1 | ||
| 53876-06040 |
ACV20,MCV20 |
1 | ||
| 53876-06030 |
MCV20,SXV20 |
1 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
ACV20,MCV20 |
10 | ||
| 53882-16030 |
ACV20,MCV20,SXV20 |
10 | ||
| Common parts | ||||
| 90080-11175 | ||||
| 90080-11260 | ||||
| 90080-46010 | ||||
| 90119-06137 | ||||
| 90119-06665 | ||||
| 90159-50346 | ||||
| 90159-60403 | ||||
| 90164-60024 | ||||
| 90189-06065 | ||||
| 90189-06104 | ||||
| 90467-04023 | ||||
| 90467-08011 | ||||
| 90467-08028 | ||||
| 90467-09050 | ||||
| 90467-10183 | ||||
| 90541-15004 | ||||
| 90950-01392 | ||||
| 90950-06052 | ||||
