MCV20L-GCPNKK (1998)
Toyota Solara

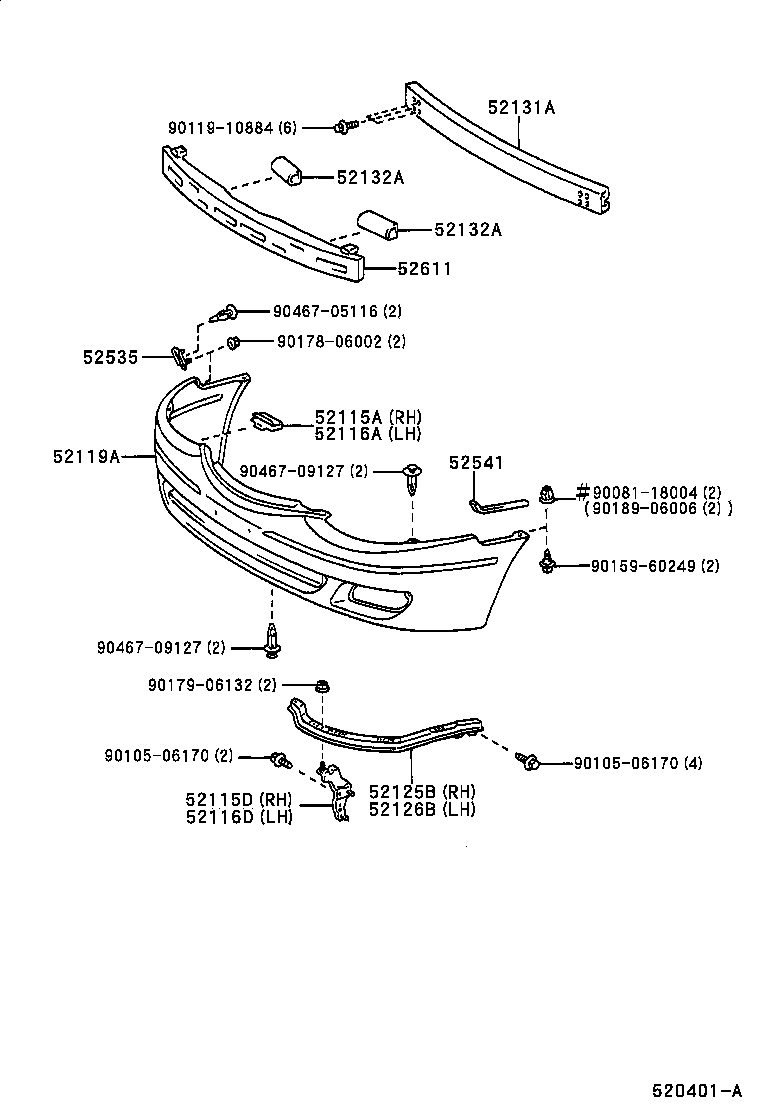

(9806-0107)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-14130 |
MCV20,SXV20 |
2 | ||
| 52115D - SUPPORT, FRONT BUMPER SIDE, NO.2 RH | ||||
| 52115-AA030 |
ACV20,MCV20 |
1 | ||
| 52115-AA030 |
ACV20,MCV20 |
1 | ||
| 52115-06010 |
MCV20,SXV20 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52115-14130 |
MCV20,SXV20 |
2 | ||
| 52116D - SUPPORT, FRONT BUMPER SIDE, NO.2 LH | ||||
| 52116-AA030 |
ACV20,MCV20 |
1 | ||
| 52116-AA030 |
ACV20,MCV20 |
1 | ||
| 52116-06010 |
MCV20,SXV20 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-AA906 |
ACV20,MCV20 |
1 | ||
| 52119-AA906 |
ACV20,MCV20 |
1 | ||
| 52119-06901 |
MCV20,SXV20 |
1 | ||
| 52125B - EXTENSION, FRONT BUMPER REINFORCEMENT, RH | ||||
| 52125-06020 |
MCV20,SXV20 |
1 | ||
| 52125-AA030 |
ACV20,MCV20 |
1 | ||
| 52125-AA030 |
ACV20,MCV20 |
1 | ||
| 52126B - EXTENSION, FRONT BUMPER REINFORCEMENT, LH | ||||
| 52126-06020 |
MCV20,SXV20 |
1 | ||
| 52126-AA030 |
ACV20,MCV20 |
1 | ||
| 52126-AA030 |
ACV20,MCV20 |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-06030 |
ACV20,MCV20 |
1 | ||
| 52131-06030 |
ACV20,MCV20,SXV20 |
1 | ||
| 52132A - REINFORCEMENT, FRONT BUMPER, NO.2 | ||||
| 52132-AA020 |
ACV20,MCV20 |
2 | ||
| 52132-AA020 |
ACV20,MCV20,SXV20 |
2 | ||
| 52132A - REINFORCEMENT, FRONT BUMPER, NO.2 | ||||
| 52132-AA020 |
ACV20,MCV20 |
2 | ||
| 52132-AA020 |
ACV20,MCV20,SXV20 |
2 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-06020 |
ACV20,MCV20 |
1 | ||
| 52535-06020 |
MCV20,SXV20 |
2 | ||
| 52535-06020 |
ACV20,MCV20 |
1 | ||
| 52541 - PROTECTOR, FRONT BUMPER | ||||
| 52541-06010 |
ACV20,MCV20,SXV20 |
2 | ||
| 52541-06010 |
ACV20,MCV20 |
2 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-AA050 |
ACV20,MCV20 |
1 | ||
| 52611-06020 |
MCV20,SXV20 |
1 | ||
| 52611-AA050 |
ACV20,MCV20 |
1 | ||
| Common parts | ||||
| 90081-18004 | ||||
| 90105-06170 | ||||
| 90119-10884 | ||||
| 90159-60249 | ||||
| 90178-06002 | ||||
| 90179-06132 | ||||
| 90189-06006 | ||||
| 90467-05116 | ||||
| 90467-09127 | ||||

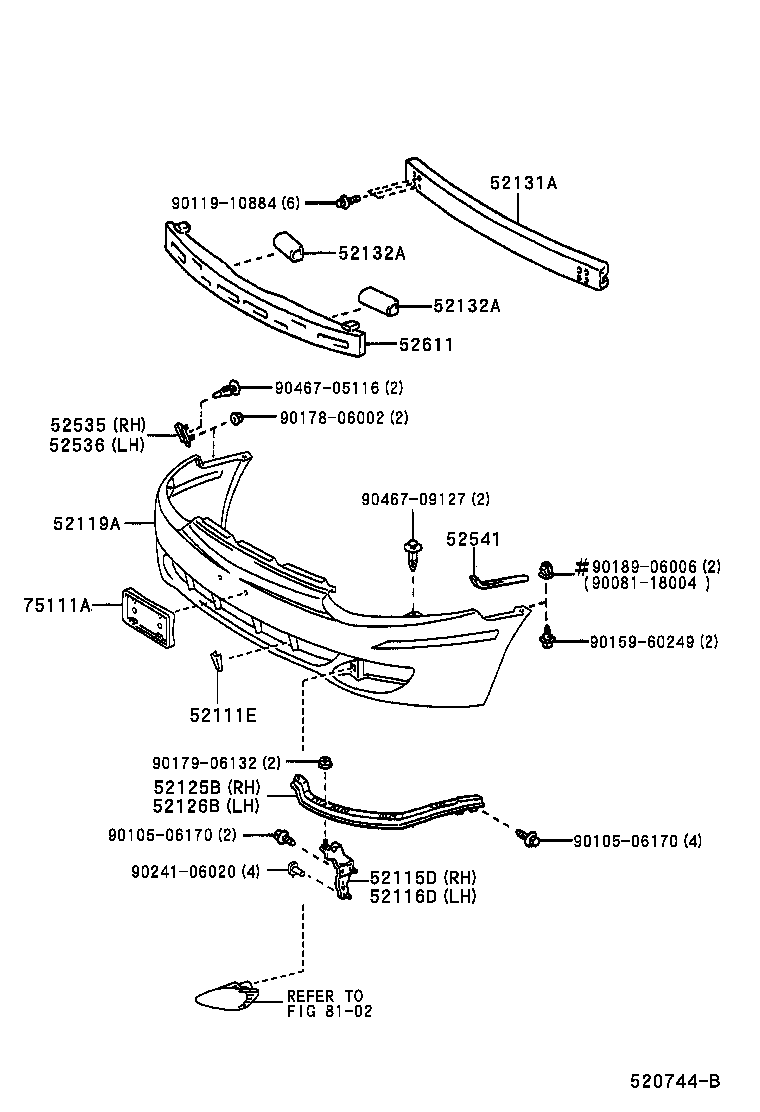

(0107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52111E - BAR, FRONT BUMPER | ||||
| 52111-AA010C0 |
ACV20,MCV20 BLACK,051 ,1C8 ,3N5 ,4Q5 |
4 | ||
| 52115D - SUPPORT, FRONT BUMPER SIDE, NO.2 RH | ||||
| 52115-AA030 |
ACV20,MCV20 |
1 | ||
| 52115-AA030 |
ACV20,MCV20 |
1 | ||
| 52115-06010 |
MCV20,SXV20 |
1 | ||
| 52116D - SUPPORT, FRONT BUMPER SIDE, NO.2 LH | ||||
| 52116-AA030 |
ACV20,MCV20 |
1 | ||
| 52116-AA030 |
ACV20,MCV20 |
1 | ||
| 52116-06010 |
MCV20,SXV20 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-AA906 |
ACV20,MCV20 |
1 | ||
| 52119-AA906 |
ACV20,MCV20 |
1 | ||
| 52119-06901 |
MCV20,SXV20 |
1 | ||
| 52125B - EXTENSION, FRONT BUMPER REINFORCEMENT, RH | ||||
| 52125-06020 |
MCV20,SXV20 |
1 | ||
| 52125-AA030 |
ACV20,MCV20 |
1 | ||
| 52125-AA030 |
ACV20,MCV20 |
1 | ||
| 52126B - EXTENSION, FRONT BUMPER REINFORCEMENT, LH | ||||
| 52126-06020 |
MCV20,SXV20 |
1 | ||
| 52126-AA030 |
ACV20,MCV20 |
1 | ||
| 52126-AA030 |
ACV20,MCV20 |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-06030 |
ACV20,MCV20 |
1 | ||
| 52131-06030 |
ACV20,MCV20,SXV20 |
1 | ||
| 52132A - REINFORCEMENT, FRONT BUMPER, NO.2 | ||||
| 52132-AA020 |
ACV20,MCV20 |
2 | ||
| 52132-AA020 |
ACV20,MCV20,SXV20 |
2 | ||
| 52132A - REINFORCEMENT, FRONT BUMPER, NO.2 | ||||
| 52132-AA020 |
ACV20,MCV20 |
2 | ||
| 52132-AA020 |
ACV20,MCV20,SXV20 |
2 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-06020 |
ACV20,MCV20 |
1 | ||
| 52535-06020 |
MCV20,SXV20 |
2 | ||
| 52535-06020 |
ACV20,MCV20 |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52535-06020 |
ACV20,MCV20 |
1 | ||
| 52535-06020 |
ACV20,MCV20 |
1 | ||
| 52541 - PROTECTOR, FRONT BUMPER | ||||
| 52541-06010 |
ACV20,MCV20,SXV20 |
2 | ||
| 52541-06010 |
ACV20,MCV20 |
2 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-AA050 |
ACV20,MCV20 |
1 | ||
| 52611-06020 |
MCV20,SXV20 |
1 | ||
| 52611-AA050 |
ACV20,MCV20 |
1 | ||
| 75111A - BRACKET, FRONT LICENSE PLATE | ||||
| 75101-AA030 |
ACV20,MCV20 |
1 | ||
| 75101-AA030 |
ACV20,MCV20 |
1 | ||
| Common parts | ||||
| 90081-18004 | ||||
| 90105-06170 | ||||
| 90119-10884 | ||||
| 90159-60249 | ||||
| 90178-06002 | ||||
| 90179-06132 | ||||
| 90189-06006 | ||||
| 90241-06020 | ||||
| 90467-05116 | ||||
| 90467-09127 | ||||
| Linked diagrams | ||||
| 8102 | ||||
