MCV20L-GCPNKK (1998)
Toyota Solara

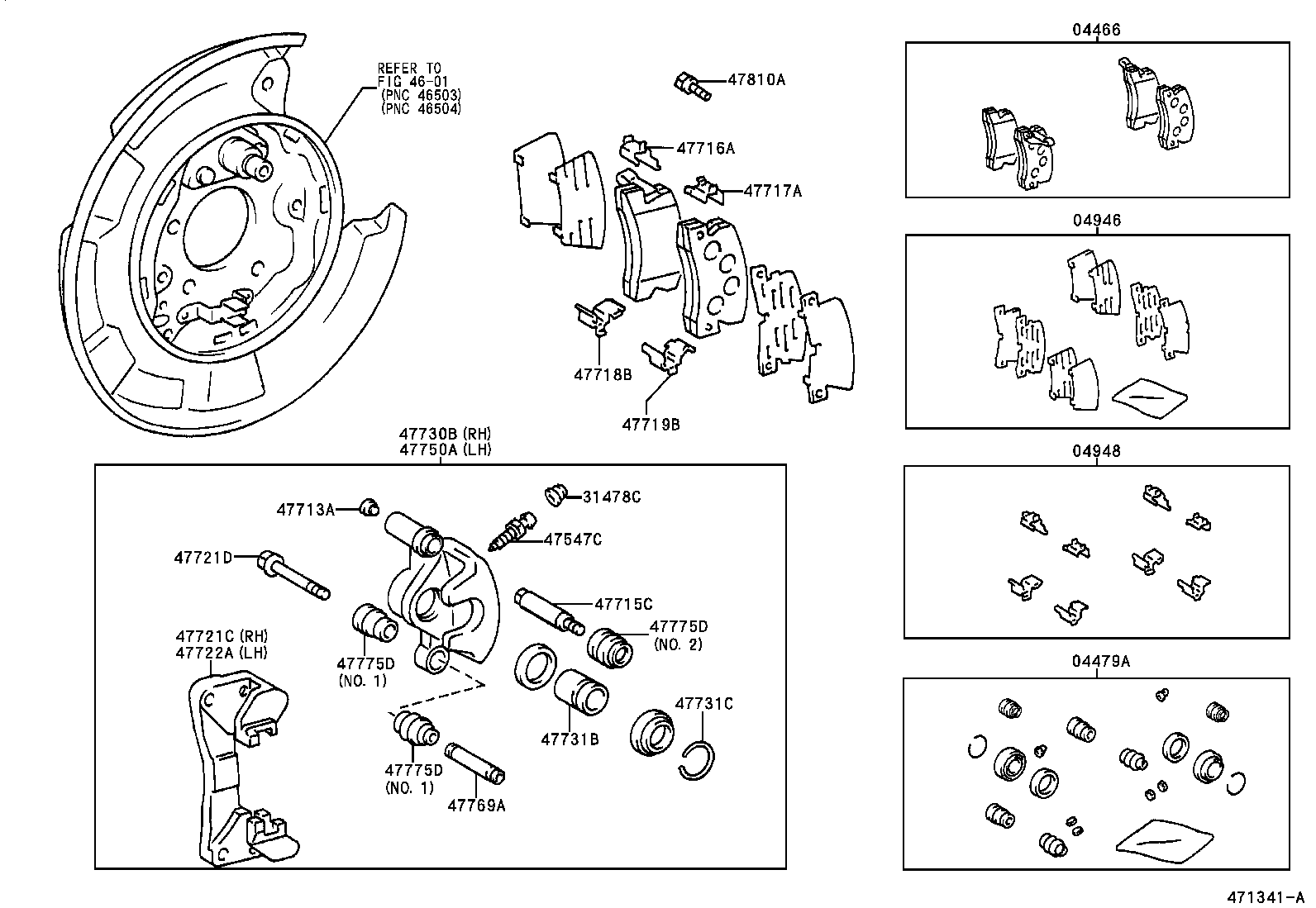

(9806-9908)MCV20
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-33060 |
MCV20;ACV20,SXV20..CVT MARK AK PA544 |
1 | ||
| 04466-33040 |
MCV20 |
1 | ||
| 04466-33060 |
MCV20;ACV20..CVT MARK AK PA544 |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-06050 |
MCV20;ACV20,SXV20..CVT |
1 | ||
| 04479-33041 |
MCV20 |
1 | ||
| 04479-06050 |
MCV20;ACV20..CVT |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-07020 |
MCV20;ACV20,SXV20..CVT |
1 | ||
| 04946-33010 |
MCV20 |
1 | ||
| 04946-07020 |
MCV20;ACV20..CVT |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-07020 |
MCV20;ACV20,SXV20..CVT |
1 | ||
| 04948-33010 |
MCV20 |
1 | ||
| 04948-07020 |
MCV20;ACV20..CVT |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
MCV20;ACV20,SXV20..CVT |
2 | ||
| 31478-30010 |
MCV20;ACV20..CVT |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-20010 |
MCV20 |
2 | ||
| 47547-06010 |
MCV20;ACV20,SXV20..CVT |
2 | ||
| 47547-06010 |
MCV20;ACV20..CVT |
2 | ||
| 47713A - PLUG, HOLE(FOR REAR DISC BRAKE CYLINDER) | ||||
| 90950-01538 |
MCV20 |
2 | ||
| 47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE) | ||||
| 47715-33020 |
MCV20 |
2 | ||
| 47715-07060 |
MCV20;ACV20,SXV20..CVT NO.2 |
2 | ||
| 47715-07050 |
MCV20;ACV20,SXV20..CVT NO.1 |
2 | ||
| 47715-07060 |
MCV20;ACV20..CVT NO.2 |
2 | ||
| 47715-07050 |
MCV20;ACV20..CVT NO.1 |
2 | ||
| 47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47716-33070 |
MCV20 |
2 | ||
| 47716-07020 |
MCV20;ACV20,SXV20..CVT |
4 | ||
| 47716-07020 |
MCV20;ACV20..CVT |
4 | ||
| 47717A - PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE) | ||||
| 47717-33050 |
MCV20 |
2 | ||
| 47717-07020 |
MCV20;ACV20..CVT |
4 | ||
| 47717-07020 |
MCV20;ACV20,SXV20..CVT |
4 | ||
| 47718B - PLATE, PAD SUPPORT, NO.3(FOR REAR DISK BRAKE) | ||||
| 47718-33010 |
MCV20 |
2 | ||
| 47719B - PLATE, PAD SUPPORT, NO.4(FOR REAR DISK BRAKE) | ||||
| 47719-33010 |
MCV20 |
2 | ||
| 47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47721-06060 |
MCV20;ACV20..CVT |
1 | ||
| 47721-06060 |
MCV20;ACV20,SXV20..CVT |
1 | ||
| 47721-33070 |
MCV20 |
1 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90119-08A98 |
MCV20 *8-1.25PX68-30 |
2 | ||
| 47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47721-06060 |
MCV20;ACV20,SXV20..CVT |
1 | ||
| 47721-06060 |
MCV20;ACV20..CVT |
1 | ||
| 47721-33070 |
MCV20 |
1 | ||
| 47730B - CYLINDER ASSY, REAR DISC BRAKE, RH | ||||
| 47730-33100 |
MCV20 |
1 | ||
| 47730-06060 |
MCV20;ACV20,SXV20..CVT |
1 | ||
| 47730-06060 |
MCV20;ACV20..CVT |
1 | ||
| 47731B - PISTON, REAR DISC BRAKE | ||||
| 47731-06050 |
MCV20;ACV20..CVT |
2 | ||
| 47731-06050 |
MCV20;ACV20,SXV20..CVT |
2 | ||
| 47731-20130 |
MCV20 |
2 | ||
| 47731C - RING, SET(FOR REAR DISC BRAKE PISTON) | ||||
| 90522-43003 |
MCV20 |
2 | ||
| 90080-52111 |
MCV20;ACV20,SXV20..CVT |
2 | ||
| 90080-52111 |
MCV20;ACV20..CVT |
2 | ||
| 47750A - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47750-06060 |
MCV20;ACV20,SXV20..CVT |
1 | ||
| 47750-33100 |
MCV20 |
1 | ||
| 47750-06060 |
MCV20;ACV20..CVT |
1 | ||
| 47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47769-32020 |
MCV20 |
2 | ||
| 47769-06020 |
MCV20;ACV20,SXV20..CVT |
2 | ||
| 47769-06020 |
MCV20;ACV20..CVT |
2 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47775-41030 |
MCV20;ACV20,SXV20..CVT |
4 | ||
| 47775-16020 |
MCV20 NO.1 |
4 | ||
| 47775-32020 |
MCV20 NO.2 |
2 | ||
| 47775-41030 |
MCV20;ACV20..CVT |
4 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47775-41030 |
MCV20;ACV20,SXV20..CVT |
4 | ||
| 47775-16020 |
MCV20 NO.1 |
4 | ||
| 47775-32020 |
MCV20 NO.2 |
2 | ||
| 47775-41030 |
MCV20;ACV20..CVT |
4 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47775-41030 |
MCV20;ACV20,SXV20..CVT |
4 | ||
| 47775-16020 |
MCV20 NO.1 |
4 | ||
| 47775-32020 |
MCV20 NO.2 |
2 | ||
| 47775-41030 |
MCV20;ACV20..CVT |
4 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90119-10379 |
MCV20;SXV20..CVT |
4 | ||
| 90119-10379 |
MCV20;ACV20..CVT (J) |
4 | ||
| 90080-11440 |
MCV20;ACV20..CVT (L) |
4 | ||
| 90119-10379 |
MCV20;ACV20..CVT (J) |
4 | ||
| 90080-11440 |
MCV20;ACV20..CVT (L) |
4 | ||
| Linked diagrams | ||||
| 4601 | ||||

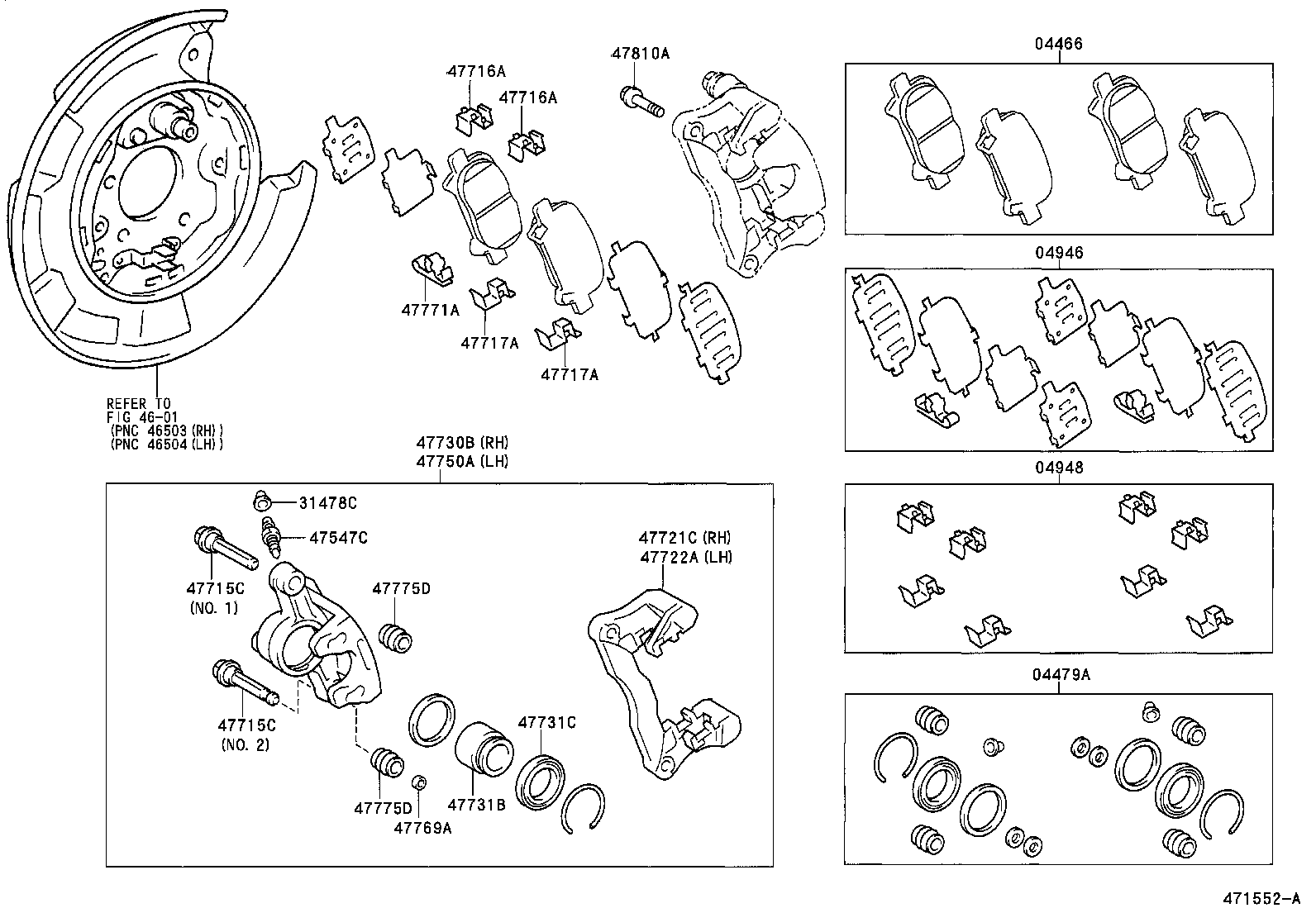

(9908- )MCV20 ; (0002- )ACV20,SXV20..CVT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-33060 |
MCV20;ACV20,SXV20..CVT MARK AK PA544 |
1 | ||
| 04466-33040 |
MCV20 |
1 | ||
| 04466-33060 |
MCV20;ACV20..CVT MARK AK PA544 |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-06050 |
MCV20;ACV20,SXV20..CVT |
1 | ||
| 04479-33041 |
MCV20 |
1 | ||
| 04479-06050 |
MCV20;ACV20..CVT |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-07020 |
MCV20;ACV20,SXV20..CVT |
1 | ||
| 04946-33010 |
MCV20 |
1 | ||
| 04946-07020 |
MCV20;ACV20..CVT |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-07020 |
MCV20;ACV20,SXV20..CVT |
1 | ||
| 04948-33010 |
MCV20 |
1 | ||
| 04948-07020 |
MCV20;ACV20..CVT |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
MCV20;ACV20,SXV20..CVT |
2 | ||
| 31478-30010 |
MCV20;ACV20..CVT |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-20010 |
MCV20 |
2 | ||
| 47547-06010 |
MCV20;ACV20,SXV20..CVT |
2 | ||
| 47547-06010 |
MCV20;ACV20..CVT |
2 | ||
| 47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE) | ||||
| 47715-33020 |
MCV20 |
2 | ||
| 47715-07060 |
MCV20;ACV20,SXV20..CVT NO.2 |
2 | ||
| 47715-07050 |
MCV20;ACV20,SXV20..CVT NO.1 |
2 | ||
| 47715-07060 |
MCV20;ACV20..CVT NO.2 |
2 | ||
| 47715-07050 |
MCV20;ACV20..CVT NO.1 |
2 | ||
| 47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE) | ||||
| 47715-33020 |
MCV20 |
2 | ||
| 47715-07060 |
MCV20;ACV20,SXV20..CVT NO.2 |
2 | ||
| 47715-07050 |
MCV20;ACV20,SXV20..CVT NO.1 |
2 | ||
| 47715-07060 |
MCV20;ACV20..CVT NO.2 |
2 | ||
| 47715-07050 |
MCV20;ACV20..CVT NO.1 |
2 | ||
| 47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47716-33070 |
MCV20 |
2 | ||
| 47716-07020 |
MCV20;ACV20,SXV20..CVT |
4 | ||
| 47716-07020 |
MCV20;ACV20..CVT |
4 | ||
| 47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47716-33070 |
MCV20 |
2 | ||
| 47716-07020 |
MCV20;ACV20,SXV20..CVT |
4 | ||
| 47716-07020 |
MCV20;ACV20..CVT |
4 | ||
| 47717A - PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE) | ||||
| 47717-33050 |
MCV20 |
2 | ||
| 47717-07020 |
MCV20;ACV20..CVT |
4 | ||
| 47717-07020 |
MCV20;ACV20,SXV20..CVT |
4 | ||
| 47717A - PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE) | ||||
| 47717-33050 |
MCV20 |
2 | ||
| 47717-07020 |
MCV20;ACV20..CVT |
4 | ||
| 47717-07020 |
MCV20;ACV20,SXV20..CVT |
4 | ||
| 47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47721-06060 |
MCV20;ACV20..CVT |
1 | ||
| 47721-06060 |
MCV20;ACV20,SXV20..CVT |
1 | ||
| 47721-33070 |
MCV20 |
1 | ||
| 47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47721-06060 |
MCV20;ACV20,SXV20..CVT |
1 | ||
| 47721-06060 |
MCV20;ACV20..CVT |
1 | ||
| 47721-33070 |
MCV20 |
1 | ||
| 47730B - CYLINDER ASSY, REAR DISC BRAKE, RH | ||||
| 47730-33100 |
MCV20 |
1 | ||
| 47730-06060 |
MCV20;ACV20,SXV20..CVT |
1 | ||
| 47730-06060 |
MCV20;ACV20..CVT |
1 | ||
| 47731B - PISTON, REAR DISC BRAKE | ||||
| 47731-06050 |
MCV20;ACV20..CVT |
2 | ||
| 47731-06050 |
MCV20;ACV20,SXV20..CVT |
2 | ||
| 47731-20130 |
MCV20 |
2 | ||
| 47731C - RING, SET(FOR REAR DISC BRAKE PISTON) | ||||
| 90522-43003 |
MCV20 |
2 | ||
| 90080-52111 |
MCV20;ACV20,SXV20..CVT |
2 | ||
| 90080-52111 |
MCV20;ACV20..CVT |
2 | ||
| 47750A - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47750-06060 |
MCV20;ACV20,SXV20..CVT |
1 | ||
| 47750-33100 |
MCV20 |
1 | ||
| 47750-06060 |
MCV20;ACV20..CVT |
1 | ||
| 47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47769-32020 |
MCV20 |
2 | ||
| 47769-06020 |
MCV20;ACV20,SXV20..CVT |
2 | ||
| 47769-06020 |
MCV20;ACV20..CVT |
2 | ||
| 47771A - PLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE) | ||||
| 47771-07030 |
MCV20;ACV20..CVT |
2 | ||
| 47771-07030 |
MCV20;ACV20,SXV20..CVT |
2 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47775-41030 |
MCV20;ACV20,SXV20..CVT |
4 | ||
| 47775-16020 |
MCV20 NO.1 |
4 | ||
| 47775-32020 |
MCV20 NO.2 |
2 | ||
| 47775-41030 |
MCV20;ACV20..CVT |
4 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47775-41030 |
MCV20;ACV20,SXV20..CVT |
4 | ||
| 47775-16020 |
MCV20 NO.1 |
4 | ||
| 47775-32020 |
MCV20 NO.2 |
2 | ||
| 47775-41030 |
MCV20;ACV20..CVT |
4 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90119-10379 |
MCV20;SXV20..CVT |
4 | ||
| 90119-10379 |
MCV20;ACV20..CVT (J) |
4 | ||
| 90080-11440 |
MCV20;ACV20..CVT (L) |
4 | ||
| 90119-10379 |
MCV20;ACV20..CVT (J) |
4 | ||
| 90080-11440 |
MCV20;ACV20..CVT (L) |
4 | ||
| Linked diagrams | ||||
| 4601 | ||||
