MCV20L-GCPNKK (1998)

Toyota Solara

Production Jun 1998 - Dec 2002
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9806- )

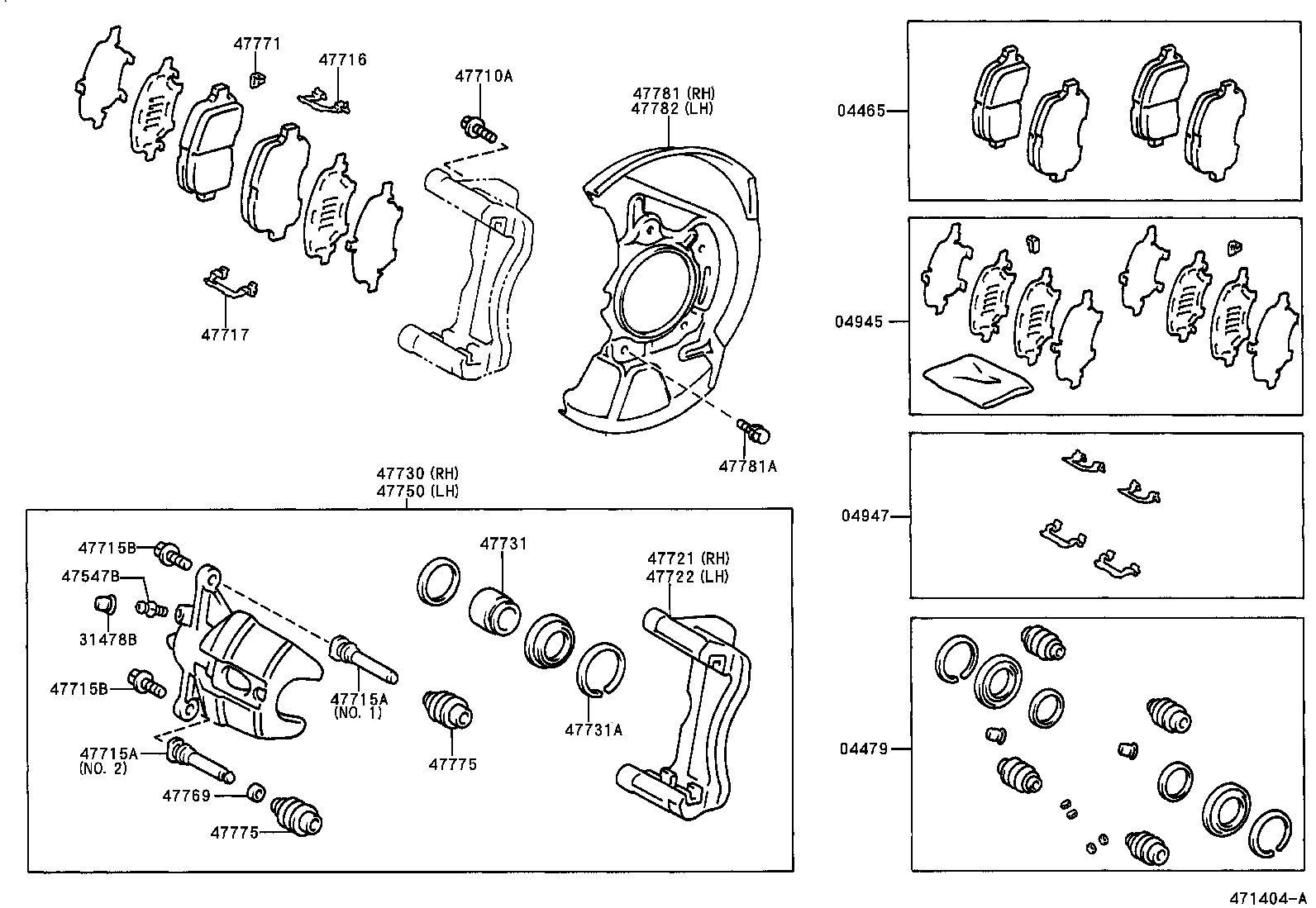

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47710A 47715A 47715A 47715B 47715B 47716 47717 47721 47722 47730 47731 47731A 47750 47769 47771 47775 47775 47781 47781A 47782
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-33120

MCV20,SXV20

 1
04465-33121

ACV20,MCV20,SXV20

MARK AK PA533

 1
04465-33121

ACV20,MCV20

MARK AK PA533

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-06040

ACV20,MCV20,SXV20

 1
04479-06040

ACV20,MCV20

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-06060

ACV20,MCV20,SXV20

 1
04945-06060

ACV20,MCV20

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-06040

MCV20,SXV20

 1
04947-06041

ACV20,MCV20,SXV20

 1
04947-06041

ACV20,MCV20

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

ACV20,MCV20,SXV20

 2
31478-30010

ACV20,MCV20

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20010

ACV20,MCV20,SXV20

 2
47547-20010

ACV20,MCV20

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90080-10067

ACV20,MCV20,SXV20

*12-1.25PX29.5-23,(L)

 4
90105-12208

ACV20,MCV20

*12-1.25PX29.5-23,(J)

 4
90080-10067

ACV20,MCV20

*12-1.25PX29.5-23,(L)

 4
90105-12208

ACV20,MCV20,SXV20

*12-1.25PX29.5-23,(J)

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-06060

ACV20,MCV20,SXV20

NO.1

 2
47715-06060

ACV20,MCV20

NO.1

 2
47715-06070

ACV20,MCV20

NO.2

 2
47715-06070

ACV20,MCV20,SXV20

NO.2

 2
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-06060

ACV20,MCV20,SXV20

NO.1

 2
47715-06060

ACV20,MCV20

NO.1

 2
47715-06070

ACV20,MCV20

NO.2

 2
47715-06070

ACV20,MCV20,SXV20

NO.2

 2
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90080-10075

ACV20,MCV20,SXV20

 4
90080-10075

ACV20,MCV20

 4
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90080-10075

ACV20,MCV20,SXV20

 4
90080-10075

ACV20,MCV20

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-06050

ACV20,MCV20

 2
47716-06050

ACV20,MCV20,SXV20

 2
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-06080

ACV20,MCV20

 2
47716-06050

MCV20,SXV20

 2
47717-06080

ACV20,MCV20,SXV20

 2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-06040

ACV20,MCV20

 1
47721-06040

ACV20,MCV20,SXV20

 1
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47721-06040

ACV20,MCV20

 1
47721-06040

ACV20,MCV20,SXV20

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-06040

ACV20,MCV20,SXV20

 1
47730-06040

ACV20,MCV20

 1
47731 - PISTON, FRONT DISC BRAKE
47731-06040

ACV20,MCV20,SXV20

 2
47731-06040

ACV20,MCV20

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90080-52086

ACV20,MCV20,SXV20

 2
90080-52086

ACV20,MCV20

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-06040

ACV20,MCV20

 1
47750-06040

ACV20,MCV20,SXV20

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-06020

ACV20,MCV20,SXV20

 2
47769-06020

ACV20,MCV20

 2
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-06020

ACV20,MCV20

 2
47771-06020

ACV20,MCV20,SXV20

 2
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-02040

ACV20,MCV20

 4
47775-02040

ACV20,MCV20,SXV20

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-02040

ACV20,MCV20

 4
47775-02040

ACV20,MCV20,SXV20

 4
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-06020

ACV20,MCV20

 1
47781-06020

ACV20,MCV20,SXV20

 1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90119-06227

MCV20,SXV20

 8
90080-11429

ACV20,MCV20

(L)

 8
90080-11429

ACV20,MCV20

(L)

 8
90119-06227

ACV20,MCV20

(J)

 8
90119-06227

ACV20,MCV20

(J)

 8
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-06020

ACV20,MCV20,SXV20

 1
47782-06020

ACV20,MCV20

 1
