MCV20L-GCPNKK (1998)
Toyota Solara
Production
Jun 1998
-
Dec 2002
Engine
1MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9806- )MCV20..ATM

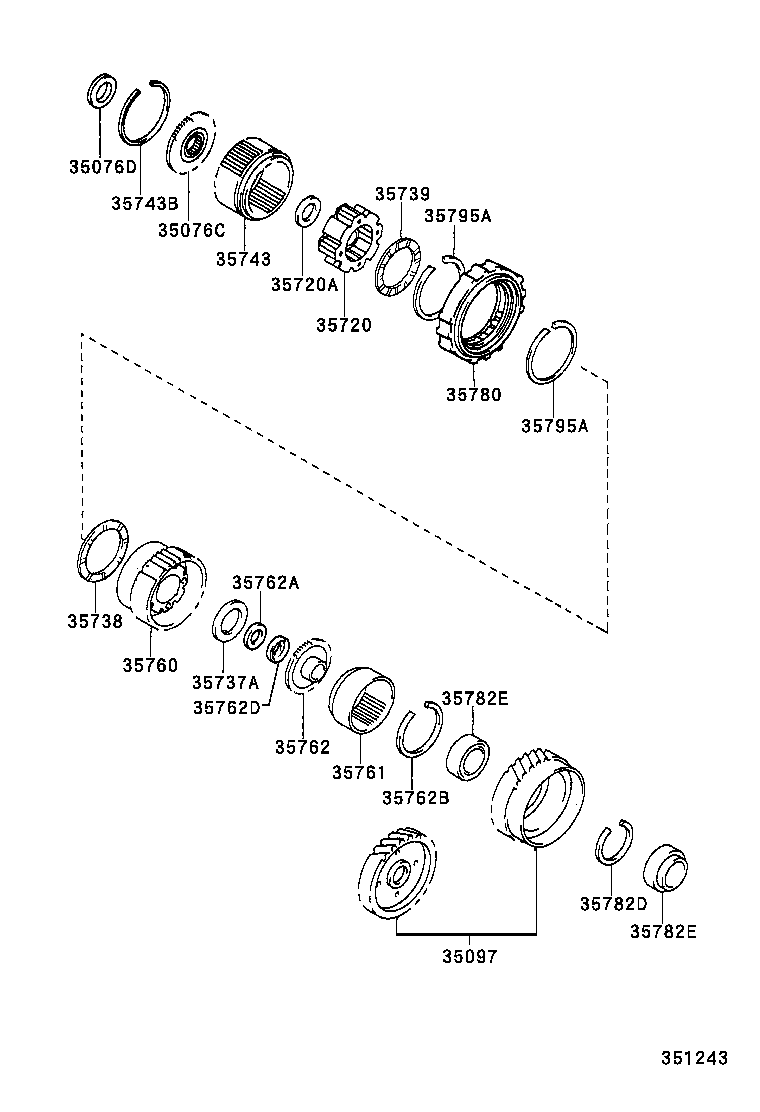

Click highlighted areas on diagram
A541E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35076C - FLANGE SUB-ASSY, FRONT PLANETARY RING GEAR | ||||
| 35076-33011 |
MCV20..ATM |
1 | ||
| 35076D - BEARING, THRUST NEEDLE ROLLER(FOR FRONT PLANETARY FLANG | ||||
| 90374-31003 |
MCV20..ATM |
1 | ||
| 35097 - COUNTER GEAR KIT, AUTOMATIC TRANSAXLE | ||||
| 35097-33010 |
MCV20..ATM |
1 | ||
| 35720 - GEAR ASSY, FRONT PLANETARY | ||||
| 35720-32020 |
MCV20..ATM |
1 | ||
| 35720-33010 |
MCV20..ATM |
1 | ||
| 35720A - BEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR | ||||
| 90374-30015 |
MCV20..ATM |
1 | ||
| 35737A - WASHER, PLANETARY CARRIER THRUST, NO.1 | ||||
| 35738-33010 |
MCV20..ATM |
1 | ||
| 35738 - WASHER, PLANETARY CARRIER THRUST, NO.2 | ||||
| 35738-33020 |
MCV20..ATM |
1 | ||
| 35739 - WASHER, PLANETARY CARRIER THRUST, NO.3 | ||||
| 35739-33010 |
MCV20..ATM |
1 | ||
| 35743 - GEAR, FRONT PLANETARY RING | ||||
| 35743-33020 |
MCV20..ATM |
1 | ||
| 35743B - RING, HOLE SNAP (FOR FRONT PLANETARY RING GEAR) | ||||
| 90520-90002 |
MCV20..ATM |
1 | ||
| 35760 - GEAR ASSY, REAR PLANETARY | ||||
| 35760-33020 |
MCV20..ATM |
1 | ||
| 35761 - GEAR, REAR PLANETARY RING | ||||
| 35761-32020 |
MCV20..ATM |
1 | ||
| 35762 - FLANGE, REAR PLANETARY RING GEAR | ||||
| 35762-33010 |
MCV20..ATM |
1 | ||
| 35762A - BEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANG | ||||
| 90374-22006 |
MCV20..ATM |
1 | ||
| 35762B - RING, HOLE SNAP (FOR REAR PLANETARY RING GEAR FLANGE) | ||||
| 90520-82002 |
MCV20..ATM |
1 | ||
| 35762D - RACE, THRUST BEARING (FOR REAR PLANETARY FLANGE) | ||||
| 35789-33020 |
MCV20..ATM |
1 | ||
| 35780 - CLUTCH ASSY, 1 WAY NO.2 | ||||
| 35780-33010 |
MCV20..ATM |
1 | ||
| 35782D - RING, HOLE SNAP(FOR COUNTER DRIVE GEAR) | ||||
| 90521-67001 |
MCV20,SXV20..ATM |
1 | ||
| 35782E - BEARING(FOR COUNTER DRIVE GEAR) | ||||
| 90366-40077 |
MCV20,SXV20..ATM |
2 | ||
| 35782E - BEARING(FOR COUNTER DRIVE GEAR) | ||||
| 90366-40077 |
MCV20,SXV20..ATM |
2 | ||
| 35795A - RING, HOLE SNAP (FOR 1 WAY CLUTCH OUTER RACE) | ||||
| 90520-99017 |
MCV20..ATM |
2 | ||
| 35795A - RING, HOLE SNAP (FOR 1 WAY CLUTCH OUTER RACE) | ||||
| 90520-99017 |
MCV20..ATM |
2 | ||
