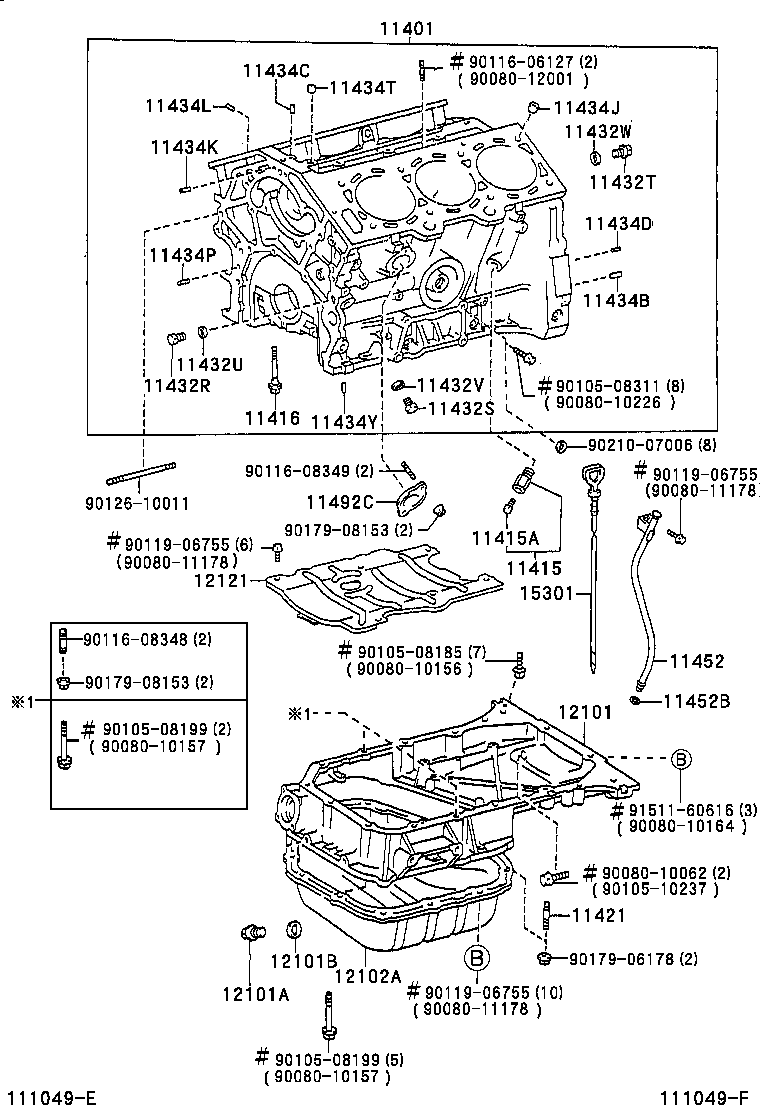

MCV20L-GCPNKK (1998)
Toyota Solara
(9806- )1MZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-09100 |
1MZFE..MCV20..ATM (L) |
1 | ||
| 11401-09102 |
1MZFE..MCV20..ATM (L) |
1 | ||
| 11401-09101 |
1MZFE..MCV20..ATM (L) |
1 | ||
| 11401-29516 |
1MZFE..MCV20 (J) |
1 | ||
| 11401-09102 |
1MZFE..MCV20 (L) |
1 | ||
| 11401-29515 |
1MZFE..MCV20..ATM (J) |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-09095 |
1MZFE..MCV20 |
1 | ||
| 90910-09095 |
1MZFE..MCV20 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90910-09087 |
1MZFE..MCV20 |
1 | ||
| 90910-09087 |
1MZFE..MCV20 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02114 |
1MZFE..MCV20 |
16 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 90116-06098 |
1MZFE..MCV20 |
2 | ||
| 90116-06098 |
1MZFE..MCV20 |
2 | ||
| 11432R - PLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK) | ||||
| 90341-16013 |
1MZFE..MCV20 |
1 | ||
| 11432S - PLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR CYLINDER BLOCK) | ||||
| 90341-16013 |
1MZFE..MCV20 |
1 | ||
| 11432T - PLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR CYLINDER BLOCK) | ||||
| 90341-20013 |
1MZFE..MCV20 |
1 | ||
| 11432U - GASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK) | ||||
| 90430-16009 |
1MZFE..MCV20 |
1 | ||
| 11432V - GASKET, STRAIGHT SCREW PLUG NO.2(FOR CYLINDER BLOCK) | ||||
| 90430-16009 |
1MZFE..MCV20 |
1 | ||
| 11432W - GASKET, STRAIGHT SCREW PLUG NO.3(FOR CYLINDER BLOCK) | ||||
| 90430-20004 |
1MZFE..MCV20 |
1 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10113 |
1MZFE..MCV20 L=22,OD=10 |
2 | ||
| 90250-10113 |
1MZFE..MCV20 L=22,OD=10 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-04097 |
1MZFE..MCV20 L=12,OD=4.0 |
1 | ||
| 90250-04097 |
1MZFE..MCV20 L=12,OD=4.0 |
1 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-04097 |
1MZFE..MCV20 L=12,OD=4.0 |
2 | ||
| 90250-04097 |
1MZFE..MCV20 L=12,OD=4.0 |
2 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-16001 |
1MZFE..MCV20 |
4 | ||
| 11434K - PIN, STRAIGHT(FOR WATER PUMP) | ||||
| 90250-04097 |
1MZFE..MCV20 |
2 | ||
| 90250-04097 |
1MZFE..MCV20 |
2 | ||
| 11434L - PIN, STRAIGHT(FOR ENGINE MOUNTING) | ||||
| 90250-04097 |
1MZFE..MCV20 |
2 | ||
| 90250-04097 |
1MZFE..MCV20 |
2 | ||
| 11434P - PIN, STRAIGHT(FOR OIL PUMP SET) | ||||
| 90250-04097 |
1MZFE..MCV20 L=12,OD=4.0 |
2 | ||
| 90250-04097 |
1MZFE..MCV20 L=12,OD=4.0 |
2 | ||
| 11434T - PIN, RING(FOR TIMING BELT IDLER BRACKET SET) | ||||
| 90253-11021 |
1MZFE..MCV20 |
1 | ||
| 90253-11021 |
1MZFE..MCV20 |
1 | ||
| 11434Y - PIN, STRAIGHT(FOR OIL PAN) | ||||
| 90250-04097 |
1MZFE..MCV20 |
2 | ||
| 90250-04097 |
1MZFE..MCV20 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-0A020 |
1MZFE..MCV20..ATM (L) |
1 | ||
| 11452-20020 |
1MZFE..MCV20 (J) |
1 | ||
| 11452-20020 |
1MZFE..MCV20..ATM (J) |
1 | ||
| 11452-0A020 |
1MZFE..MCV20 (L) |
1 | ||
| 11452-0A020 |
1MZFE..MCV20 (L) |
1 | ||
| 11452-20020 |
1MZFE..MCV20 (J) |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 96721-19010 |
1MZFE..MCV20 |
1 | ||
| 96721-19010 |
1MZFE..MCV20 |
1 | ||
| 11492C - PLATE, WATER SEAL | ||||
| 11492-20010 |
1MZFE..MCV20 |
1 | ||
| 11492-50010 |
1MZFE..MCV20 |
1 | ||
| 11492-20010 |
1MZFE..MCV20 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12111-20032 |
1MZFE..MCV20 (J) |
1 | ||
| 12111-0A020 |
1MZFE..MCV20..ATM (L) |
1 | ||
| 12111-20032 |
1MZFE..MCV20 (J) |
1 | ||
| 12111-20032 |
1MZFE..MCV20..ATM (J) |
1 | ||
| 12111-0A030 |
1MZFE..MCV20 (L) |
1 | ||
| 12111-0A030 |
1MZFE..MCV20 (L) |
1 | ||
| 12111-0A021 |
1MZFE..MCV20 (L) |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12026 |
1MZFE..MCV20 |
1 | ||
| 90341-12026 |
1MZFE..MCV20 |
1 | ||
| 90341-12012 |
1MZFE..MCV20 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
1MZFE..MCV20 |
1 | ||
| 90430-12031 |
1MZFE..MCV20 |
1 | ||
| 12102A - PAN SUB-ASSY, OIL, NO.2 | ||||
| 12102-0A010 |
1MZFE..MCV20..ATM |
1 | ||
| 12102-0A010 |
1MZFE..MCV20 |
1 | ||
| 12102-0A010 |
1MZFE..MCV20 |
1 | ||
| 12121 - PLATE, OIL PAN BAFFLE, NO.1 | ||||
| 12121-0A010 |
1MZFE..MCV20..ATM |
1 | ||
| 12121-0A011 |
1MZFE..MCV20 |
1 | ||
| 12121-0A011 |
1MZFE..MCV20..ATM |
1 | ||
| 12121-0A011 |
1MZFE..MCV20 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-20021 |
1MZFE..MCV20 |
1 | ||
| 15301-20021 |
1MZFE..MCV20 |
1 | ||
| Common parts | ||||
| 90080-10062 | ||||
| 90080-10156 | ||||
| 90080-10157 | ||||
| 90080-10164 | ||||
| 90080-10226 | ||||
| 90080-11178 | ||||
| 90080-12001 | ||||
| 90105-08185 | ||||
| 90105-08199 | ||||
| 90105-08311 | ||||
| 90105-10237 | ||||
| 90116-06127 | ||||
| 90116-08348 | ||||
| 90116-08349 | ||||
| 90119-06755 | ||||
| 90126-10011 | ||||
| 90179-06178 | ||||
| 90179-08153 | ||||
| 90210-07006 | ||||
| 91511-60616 | ||||
