ACV30L-GCPNKA (2003)

Toyota Solara

Production Jul 2003 - Mar 2005
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0307- )

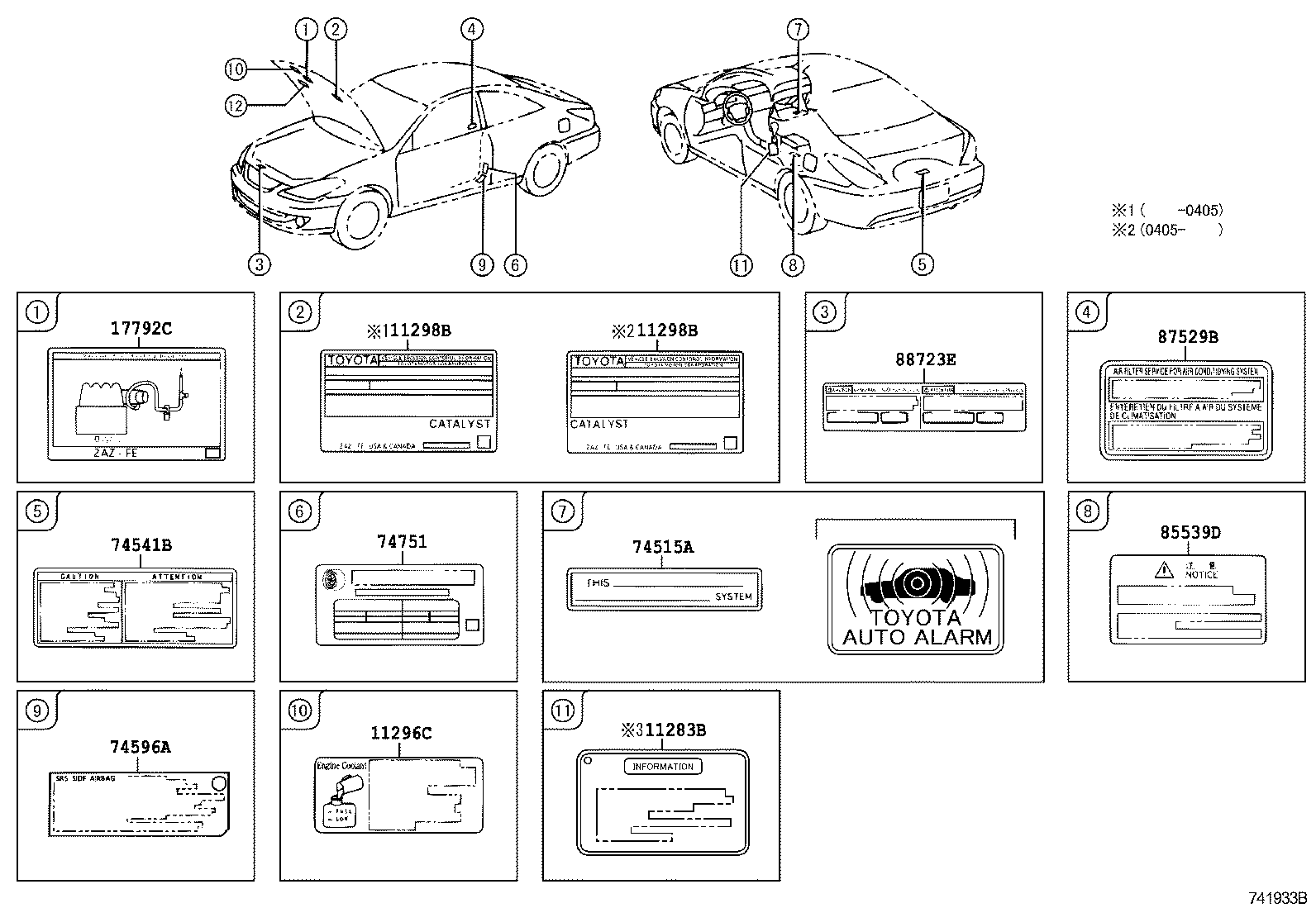

Click highlighted areas on diagram

diagram 11283B 11296C 11298B 11298B 17792C 74515A 74541B 74596A 74751 85539D 87529B 88723E
Part # Description Qty Price
11296C - LABEL, ENGINE SERVICE INFORMATION
11296-27020

2AZFE..ACV30..4FC

 1
11298B - LABEL, EMISSION CONTROL INFORMATION
11298-28270

2AZFE..ACV30

 1
11298-28330

2AZFE..ACV30

 1
11298B - LABEL, EMISSION CONTROL INFORMATION
11298-28270

2AZFE..ACV30

 1
11298-28330

2AZFE..ACV30

 1
17792C - LABEL, ENGINE VACUUM HOSE INFORMATION
17792-28150

2AZFE..ACV30..4FC

 1
74541B - PLATE, COMPACT SPARE TIRE CAUTION
42668-06010

ACV30..4FC

 1
74596A - LABEL, SIDE AIR BAG CAUTION
74596-02010

ACV30..4FC

 2
85539D - LABEL, POWER OUTLET NOTICE
85539-33010

ACV30,MCV31

 1
87529B - LABEL, A/C FILTER INFORMATION
87529-50010

ACV30,MCV31

 1
87529-0E010

ACV30..4FC

 1
88723E - LABEL, COOLER SERVICE CAUTION
88723-06050

ACV30..4FC

 1
