ACV30L-GCPGKA (2003)
Toyota Solara
Production
Jul 2003
-
Mar 2005
Engine
2AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0307-0605)2AZFE ; (0307- )3MZFE

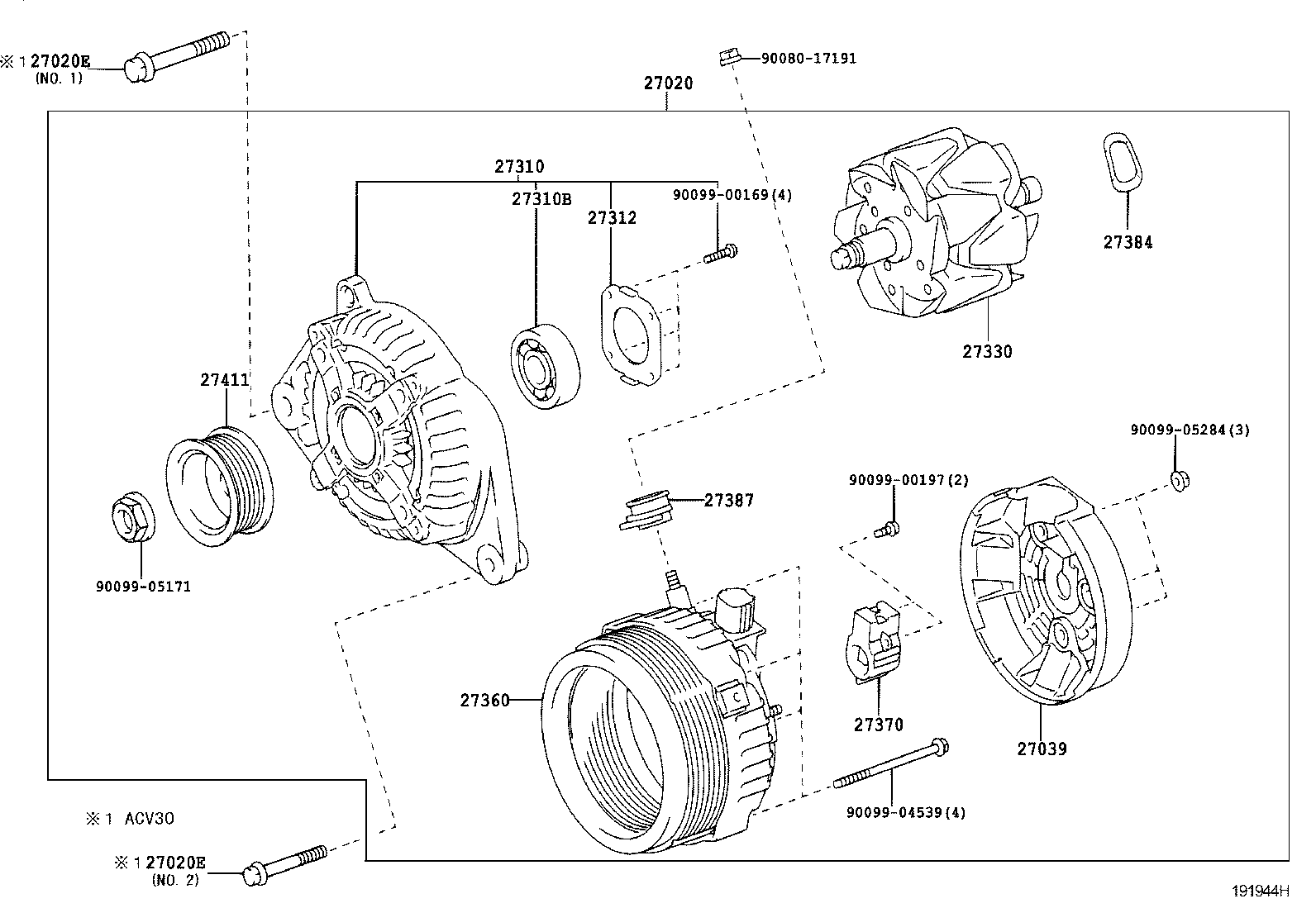

Click highlighted areas on diagram
12V 100A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-0H100 |
2AZFE..ACV30..4FC 12V 100A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90080-10111 |
2AZFE..ACV30 NO.1,(L) |
1 | ||
| 91512-81085 |
2AZFE..ACV30 NO.1,(J) |
1 | ||
| 90080-10250 |
2AZFE..ACV30 NO.2,(L) |
1 | ||
| 91511-J0840 |
2AZFE..ACV30 NO.2,(J) |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90080-10111 |
2AZFE..ACV30 NO.1,(L) |
1 | ||
| 91512-81085 |
2AZFE..ACV30 NO.1,(J) |
1 | ||
| 90080-10250 |
2AZFE..ACV30 NO.2,(L) |
1 | ||
| 91511-J0840 |
2AZFE..ACV30 NO.2,(J) |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-0A110 |
2AZFE..ACV30..4FC |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-0H060 |
2AZFE..ACV30..4FC |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90068-10142 |
2AZFE,3MZFE..ACV30,MCV31 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
2AZFE..ACV30..4FC |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-0F060 |
2AZFE..ACV30..4FC |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-0H060 |
2AZFE..ACV30..4FC |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-0F060 |
2AZFE..ACV30..4FC |
1 | ||
| 27384 - WASHER | ||||
| 27384-0A020 |
2AZFE..ACV30..4FC |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-0F060 |
2AZFE..ACV30..4FC |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-28060 |
2AZFE..ACV30..4FC |
1 | ||
| Common parts | ||||
| 90080-17191 | ||||
| 90099-00169 | ||||
| 90099-00197 | ||||
| 90099-04539 | ||||
| 90099-05171 | ||||
| 90099-05284 | ||||
