ACV30L-GCMNKA (2003)
Toyota Solara
Production
Jul 2003
-
May 2006
Engine
2AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0307- )ACV30

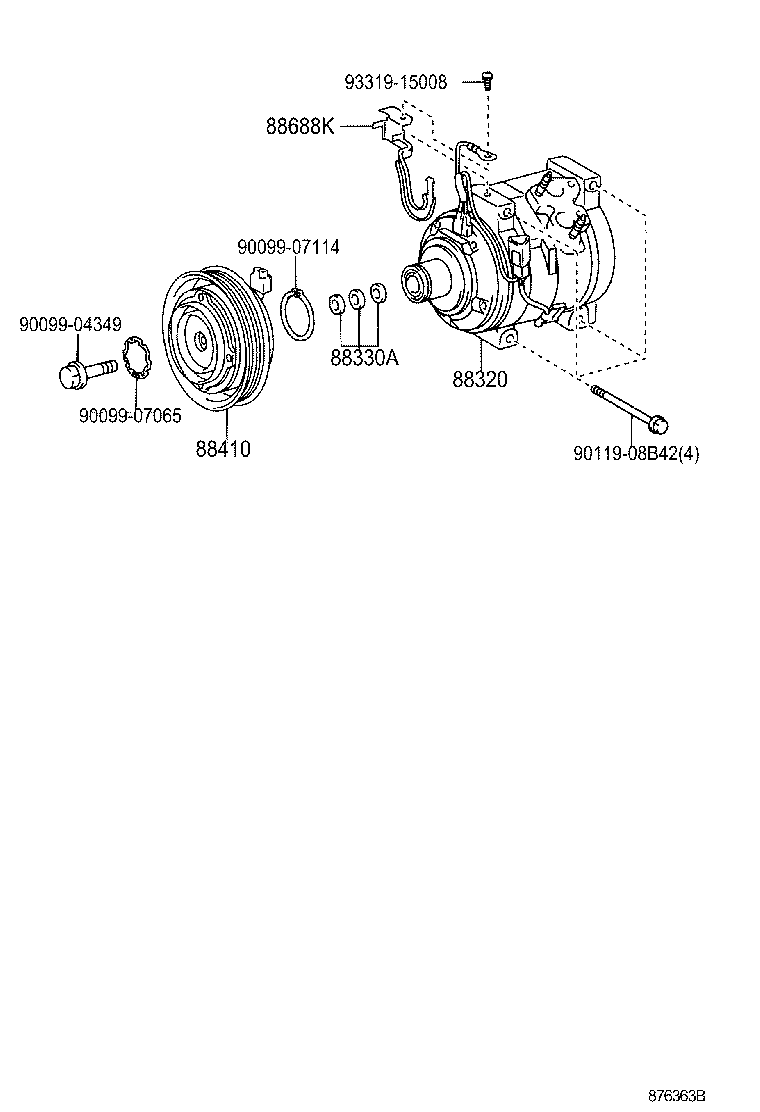

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-06080 |
ACV30..5F,5FC |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
ACV30,MCV31..5F,5FC |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-06090 |
ACV30..5F,5FC |
1 | ||
| 88688K - BRACKET, COOLER COMPRESSOR | ||||
| 88688-48070 |
ACV30..5F,5FC |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90119-08B42 | ||||
| 93319-15008 | ||||
