ACV30L-GCMNKA (2003)

Toyota Solara

Production Jul 2003 - May 2006
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0307- )ACV30

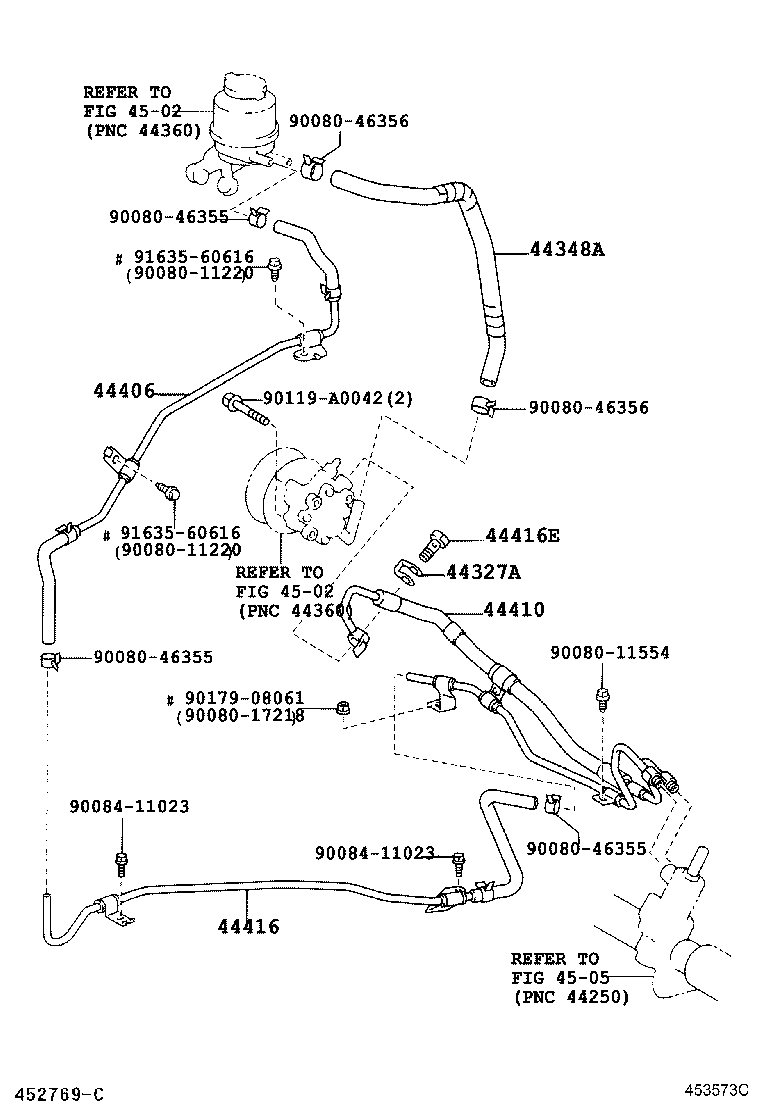

Click highlighted areas on diagram

diagram 44327A 44348A 44406 44410 44416 44416E 4502 4502 4505 9008011220 9008011220 9008011554 9008017218 9008046355 9008046355 9008046355 9008046356 9008046356 9008411023 9008411023 90119A0042 9017908061 9163560616 9163560616
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-30030

ACV30,MCV31

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-06170

ACV30

 1
44406 - TUBE SUB-ASSY, RETURN
44406-06100

ACV30,MCV31..5F,5FC

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-06140

ACV30

 1
44410-06141

ACV30

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-06100

ACV30,MCV31..5F,5FC

 1
44416E - BOLT, UNION(FOR RETURN TUBE)
96341-41603

ACV30..5F,5FC

 1
Common parts
90080-11220
90080-11554
90080-17218
90080-46355
90080-46356
90084-11023
90119-A0042
90179-08061
91635-60616
Linked diagrams
4502
4505
