ACV30L-GCAGKA (2005)
Toyota Solara
Production
Mar 2005
-
May 2006
Engine
2AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0307-0605)

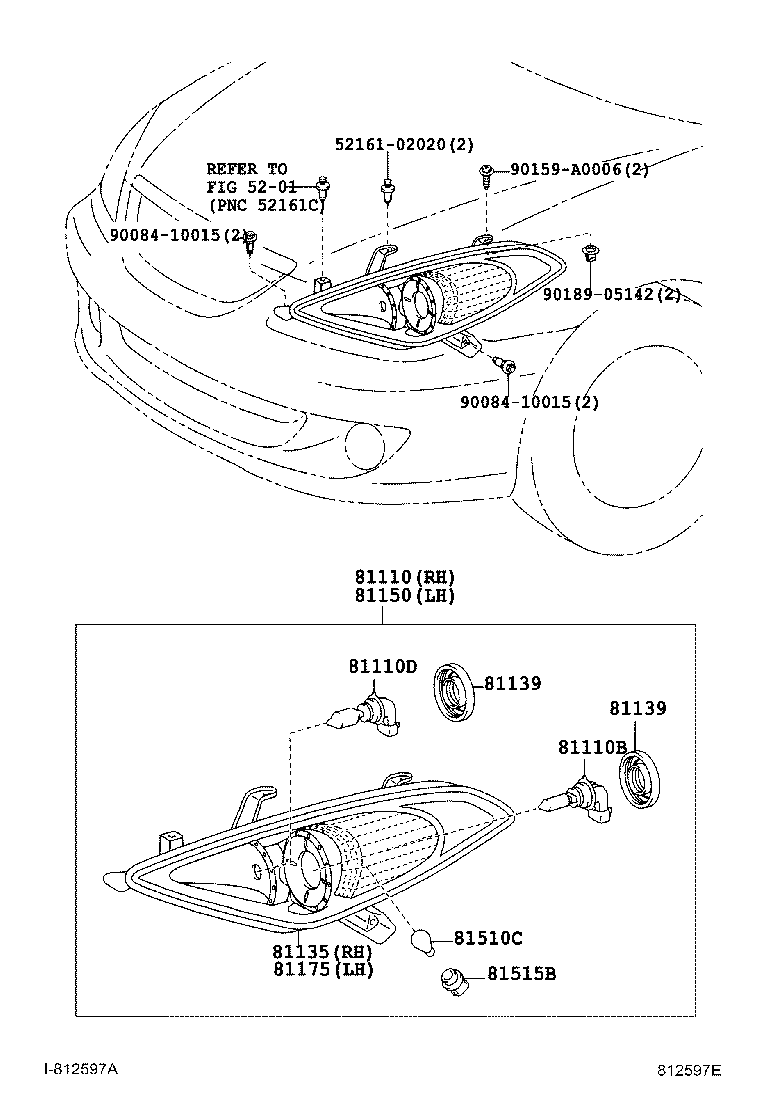

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-AA080 |
ACV30,MCV31 |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-AD001 |
ACV30,MCV31..5F,5FC 12V 55W |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90080-81041 |
ACV30,MCV31..5F,5FC 12V 65W |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-AA080 |
ACV30,MCV31..5F,5FC |
1 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 90069-91008 |
ACV30,MCV31..5F,5FC |
4 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 90069-91008 |
ACV30,MCV31..5F,5FC |
4 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-AA080 |
ACV30,MCV31 |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-AA080 |
ACV30,MCV31..5F,5FC |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-AF001 |
ACV30,MCV31..5F,5FC 12V 30/8W |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60060 |
ACV30,MCV31..5F,5FC |
2 | ||
| Common parts | ||||
| 52161-02020 | ||||
| 90084-10015 | ||||
| 90159-A0006 | ||||
| 90189-05142 | ||||
| Linked diagrams | ||||
| 5201 | ||||
