ACV20L-GCPNKK (2001)

Toyota Solara

Production Jul 2001 - Dec 2002
Engine 2AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 6(0107- )

Click highlighted areas on diagram

INSTRUMENT PANEL SWITCH

diagram 55902A 84118 84119 84330 84330B 84660C 84730 84751 84751B 84751B 84751B 84751B 84751C 84751C 84751F 84790 84790B 84790B 84810 84810D 84820 84840 84860A 84870A 84930 84988F 85500 85513 85515 85520 85530 85535B 8715 8715 8715 8715 87290 9017009002 9354013012 9354044012
Part # Description Qty Price
55902A - KNOB SUB-ASSY, CONTROL
55902-33220

ACV20,MCV20

 1
84118 - KNOB, LIGHT CONTROL RHEOSTAT
84118-06010

ACV20,MCV20,SXV20

 1
84119 - RHEOSTAT, LIGHT CONTROL
84119-06020

ACV20,MCV20,SXV20

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-AC020

ACV20,MCV20,SXV20

 1
84330B - BULB, HAZARD WARNING SIGNAL SWITCH
90011-01001

ACV20,MCV20,SXV20

14V 0.91W

 1
84660C - SWITCH, COOLER
84660-06030

ACV20,MCV20,SXV20

 1
84660-06030

ACV20,MCV20

 1
84730 - SWITCH ASSY, HEATER BLOWER
84732-06040

ACV20,MCV20

 1
84732-06040

ACV20,MCV20,SXV20

 1
84751 - SWITCH, SEAT HEATER
84751-33030

ACV20,MCV20..CP

 1
84751B - BULB, SEAT HEATER SWITCH
84999-10320

ACV20,MCV20..CP

14V 0.84W

 4
84751B - BULB, SEAT HEATER SWITCH
84999-10320

ACV20,MCV20..CP

14V 0.84W

 4
84751B - BULB, SEAT HEATER SWITCH
84999-10320

ACV20,MCV20..CP

14V 0.84W

 4
84751B - BULB, SEAT HEATER SWITCH
84999-10320

ACV20,MCV20..CP

14V 0.84W

 4
84751C - CAP, SEAT HEATER SWITCH BULB
84998-10650

ACV20,MCV20..CP

 2
84751C - CAP, SEAT HEATER SWITCH BULB
84998-10650

ACV20,MCV20..CP

 2
84751F - SWITCH, SEAT HEATER
84751-33030

ACV20,MCV20..CP

 1
84790 - SWITCH ASSY, REAR WINDOW DEFOGGER
84790-06020

ACV20,MCV20

 1
84790-06020

ACV20,MCV20,SXV20

 1
84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH)
90010-01003

ACV20,MCV20

14V 0.84W

 1
90010-01002

ACV20,MCV20,SXV20

14V 1.4W

 1
90010-01002

ACV20,MCV20

14V 1.4W

 1
90010-01003

ACV20,MCV20,SXV20

14V 0.84W

 1
84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH)
90010-01003

ACV20,MCV20

14V 0.84W

 1
90010-01002

ACV20,MCV20,SXV20

14V 1.4W

 1
90010-01002

ACV20,MCV20

14V 1.4W

 1
90010-01003

ACV20,MCV20,SXV20

14V 0.84W

 1
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-AC010

ACV20,MCV20,SXV20

 1
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84820-08010

ACV20,MCV20,SXV20..CP

 1
84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING
84840-AA010

ACV20,MCV20

 1
84870A - SWITCH ASSY, OUTER MIRROR
84870-06020

ACV20,MCV20,SXV20

 1
84870-06020

ACV20,MCV20

 1
84930 - SWITCH ASSY, DOOR CONTROL
84930-AA010

ACV20,MCV20,SXV20

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-06020

ACV20,MCV20,SXV20

 1
85500-06020

ACV20,MCV20

 1
85513 - COVER, CIGARETTE LIGHTER
85513-02010

ACV20,MCV20,SXV20

 1
85513-02010

ACV20,MCV20

 1
85515 - STAY, CIGARETTE LIGHTER BEZEL
85515-06011

ACV20,MCV20,SXV20

 1
85515-06011

ACV20,MCV20

 1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-06020

ACV20,MCV20

 1
85520-06020

ACV20,MCV20,SXV20

 1
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-06010

ACV20,MCV20

 1
85530-06010

ACV20,MCV20,SXV20

 1
85535B - COVER, POWER OUTLET SOCKET, NO.1
85535-06010

ACV20,MCV20

 1
85535-06010

ACV20,MCV20

 1
87290 - SWITCH ASSY, HEATER
87290-06020

ACV20,MCV20

 1
87290-06020

ACV20,MCV20,SXV20

 1
Common parts
90170-09002
93540-13012
93540-44012
Linked diagrams
8715

ILLUST NO. 1 OF 6(0107- )ACV20

Click highlighted areas on diagram

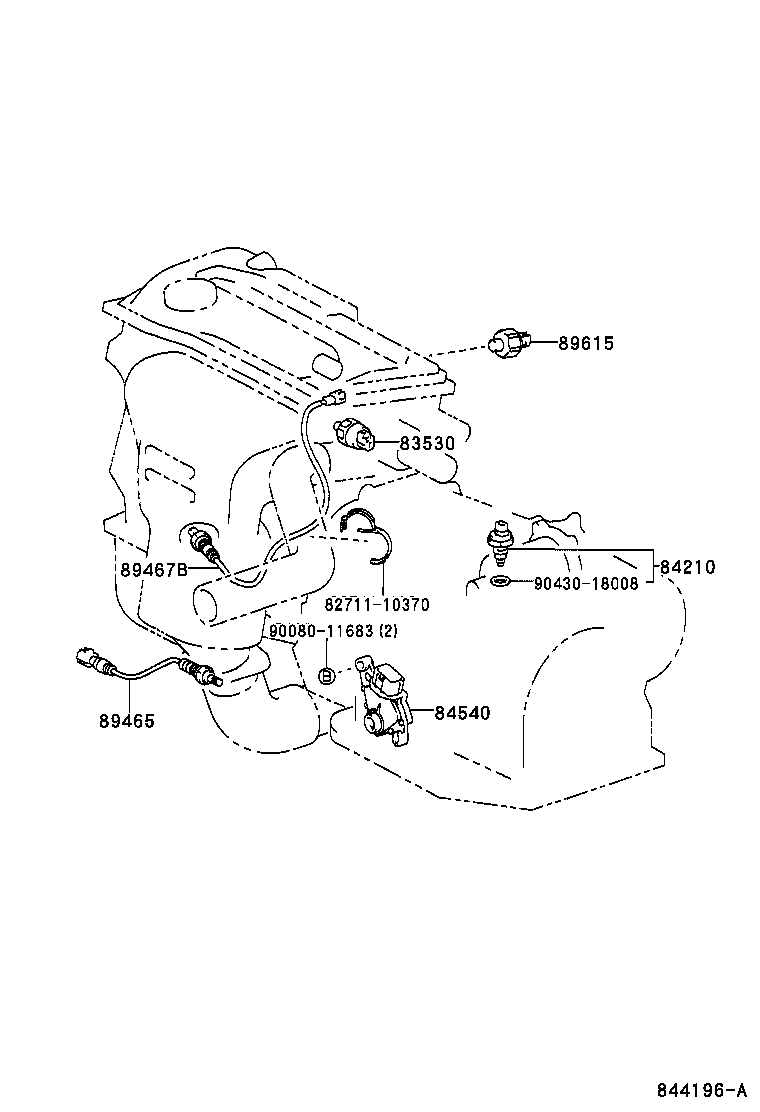

ENGINE & TRANSMISSION

diagram 8271110370 83530 84210 84540 89465 89467B 89615 9008011683 9043018008
Part # Description Qty Price
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-AA011

ACV20,MCV20,SXV20

FASCO

 1
83530-28020

ACV20,MCV20,SXV20

DENSO

 1
84540 - SWITCH ASSY, NEUTRAL START
84540-06010

ACV20..ATM

 1
89465 - SENSOR, OXYGEN
89465-06050

ACV20

 1
89467B - SENSOR, AIR FUEL RATIO
89467-33040

ACV20

 1
89615 - SENSOR, KNOCK CONTROL
89615-30080

ACV20

MATSUSHITA

 1
Common parts
82711-10370
90080-11683
90430-18008
