ACV20L-GCPNKK (2001)
Toyota Solara
Production
Jul 2001
-
Dec 2002
Engine
2AZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0107- )ACV20

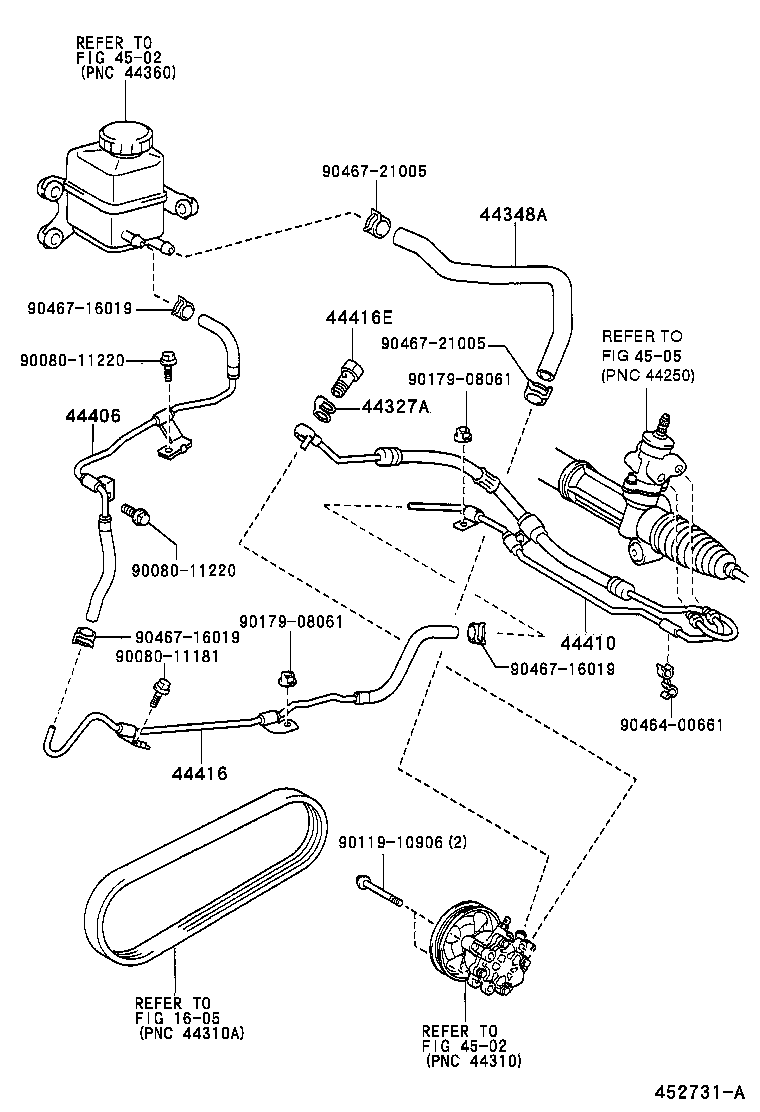

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-30030 |
ACV20,MCV20,SXV20 |
1 | ||
| 44327-30030 |
ACV20,MCV20 |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-06190 |
ACV20 |
1 | ||
| 44406 - TUBE SUB-ASSY, RETURN | ||||
| 44406-06050 |
ACV20,MCV20 |
1 | ||
| 44406-06050 |
ACV20,MCV20,SXV20 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-06160 |
ACV20 |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-06120 |
ACV20 |
1 | ||
| 44416E - BOLT, UNION(FOR RETURN TUBE) | ||||
| 96341-41603 |
ACV20 |
1 | ||
| Common parts | ||||
| 90080-11181 | ||||
| 90080-11220 | ||||
| 90119-10906 | ||||
| 90179-08061 | ||||
| 90464-00661 | ||||
| 90467-16019 | ||||
| 90467-21005 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 4502 | ||||
| 4505 | ||||
