ACV20L-GCPNKA (2001)
Toyota Solara
Production
Jul 2001
-
Dec 2002
Engine
2AZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0107- )2AZFE

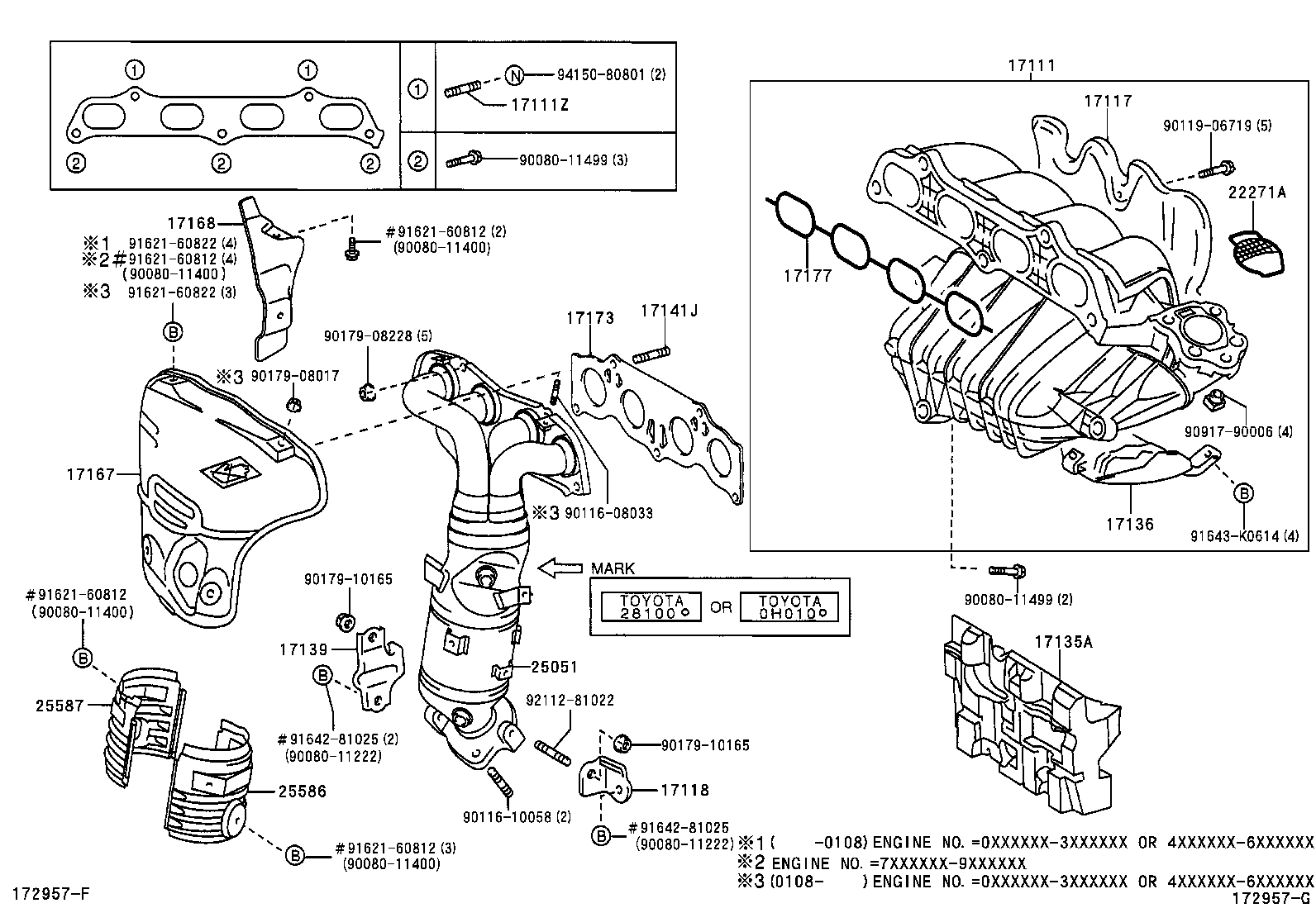

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17120-0H010 |
2AZFE..ACV20 |
1 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08026 |
2AZFE..ACV20 |
2 | ||
| 17117 - INSULATOR, INTAKE PIPE | ||||
| 17117-0H010 |
2AZFE..ACV20 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-28060 |
2AZFE..ACV20 |
1 | ||
| 17135A - INSULATOR, INTAKE MANIFOLD, NO.1 | ||||
| 17135-0H010 |
2AZFE..ACV20 |
1 | ||
| 17136 - INSULATOR, INTAKE MANIFOLD, NO.2 | ||||
| 17136-28020 |
2AZFE..ACV20 |
1 | ||
| 17139 - STAY, MANIFOLD, NO.2 | ||||
| 17139-28040 |
2AZFE..ACV20 MARK OF CONVERTER = 28XXX |
1 | ||
| 17139-28030 |
2AZFE..ACV20 MARK OF CONVERTER = 0HXXX |
1 | ||
| 17139-28040 |
2AZFE..ACV20 |
1 | ||
| 17141J - BOLT, STUD(FOR EXHAUST MANIFOLD, RH) | ||||
| 90126-08037 |
2AZFE..ACV20 |
5 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-28040 |
2AZFE..ACV20 (J) |
1 | ||
| 17167-0H010 |
2AZFE..ACV20 (L) |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-28011 |
2AZFE..ACV20 (J) |
1 | ||
| 17168-0H010 |
2AZFE..ACV20 (L) |
1 | ||
| 17168-28010 |
2AZFE..ACV20 (J) |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-28010 |
2AZFE..ACV20 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-0H010 |
2AZFE..ACV20 |
1 | ||
| 22271A - GASKET, THROTTLE BODY | ||||
| 22271-0H010 |
2AZFE..ACV20 |
1 | ||
| 25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD | ||||
| 25051-0H010 |
2AZFE..ACV20 MARK OF CONVERTER = 0HXXX |
1 | ||
| 25051-28101 |
2AZFE..ACV20 MARK OF CONVERTER = 28XXX |
1 | ||
| 25051-0H011 |
2AZFE..ACV20 MARK OF CONVERTER = 0HXXX |
1 | ||
| 25586 - INSULATOR, MANIFOLD CONVERTER, NO.1 | ||||
| 25586-0H010 |
2AZFE..ACV20 (L) |
1 | ||
| 25586-28030 |
2AZFE..ACV20 (J) |
1 | ||
| 25587 - INSULATOR, MANIFOLD CONVERTER, NO.2 | ||||
| 25587-28040 |
2AZFE..ACV20 (J) |
1 | ||
| 25587-0H010 |
2AZFE..ACV20 (L) |
1 | ||
| Common parts | ||||
| 90080-11222 | ||||
| 90080-11400 | ||||
| 90080-11499 | ||||
| 90116-08033 | ||||
| 90116-10058 | ||||
| 90119-06719 | ||||
| 90179-08017 | ||||
| 90179-08228 | ||||
| 90179-10165 | ||||
| 90917-90006 | ||||
| 91621-60812 | ||||
| 91621-60822 | ||||
| 91642-81025 | ||||
| 91643-K0614 | ||||
| 92112-81022 | ||||
| 94150-80801 | ||||
