ACV20L-GCMNKA (2001)
Toyota Solara
(0107- )ACV20..MTM

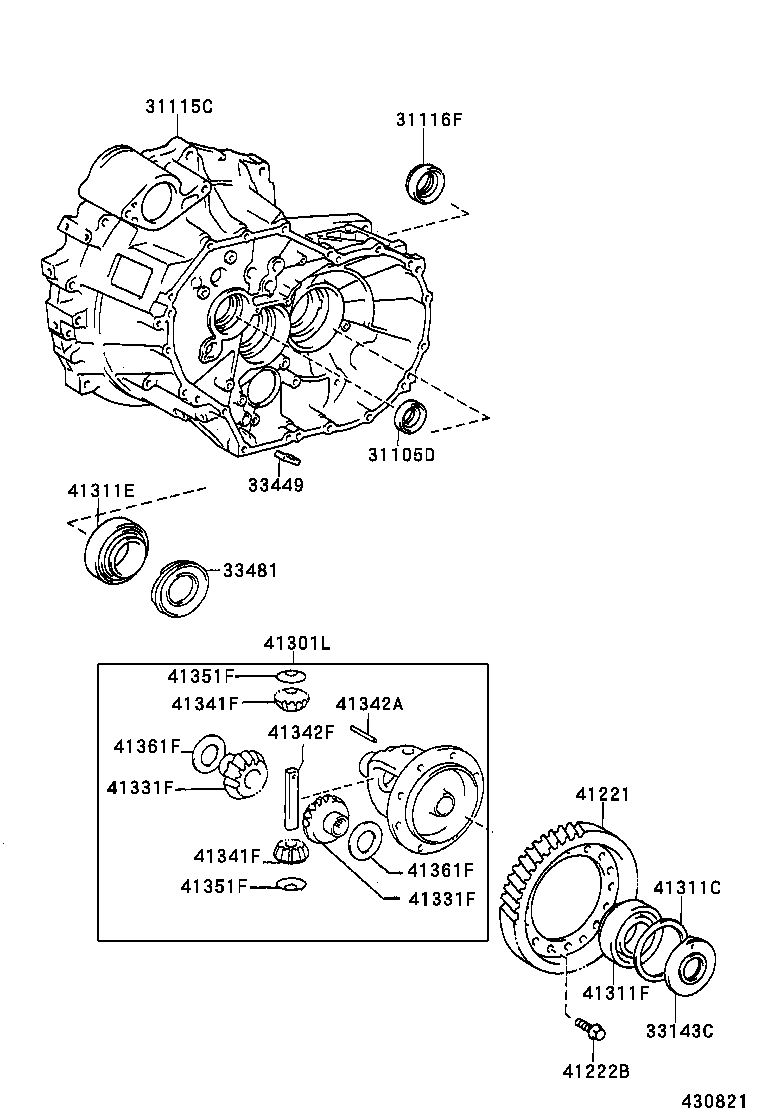

E351
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE) | ||||
| 90311-30006 |
ACV20,MCV20,SXV20..MTM |
1 | ||
| 90311-30006 |
ACV20..MTM |
1 | ||
| 31115C - CASE, FRONT TRANSAXLE(MTM) | ||||
| 31115-28021 |
ACV20..MTM |
1 | ||
| 31116F - SEAL, OIL(FOR FRONT TRANSAXLE CASE COVER) | ||||
| 90311-40025 |
ACV20..MTM |
1 | ||
| 33143C - BAFFLE, FRONT DIFFERENTIAL OIL | ||||
| 33143-28010 |
ACV20..MTM |
1 | ||
| 33449 - MAGNET, TRANSMISSION | ||||
| 33449-20010 |
ACV20..MTM |
1 | ||
| 33449-20010 |
ACV20,MCV20..MTM |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-28050 |
ACV20..MTM N=32 |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-28130 |
ACV20..MTM |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90105-12319 |
ACV20..MTM |
16 | ||
| 41301L - CASE SUB-ASSY, FRONT DIFFERENTIAL, NO.1 | ||||
| 41301-28070 |
ACV20..MTM |
1 | ||
| 41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-56058 |
ACV20..MTM T=2.15,MARK 3 |
1 | ||
| 90564-56059 |
ACV20..MTM T=2.20,MARK 4 |
1 | ||
| 90564-56056 |
ACV20..MTM T=2.05,MARK 1 |
1 | ||
| 90564-56066 |
ACV20..MTM T=2.55,MARK B |
1 | ||
| 90564-56065 |
ACV20..MTM T=2.50,MARK A |
1 | ||
| 90564-56064 |
ACV20..MTM T=2.45,MARK 9 |
1 | ||
| 90564-56069 |
ACV20..MTM T=2.70,MARK E |
1 | ||
| 90564-56061 |
ACV20..MTM T=2.30,MARK 6 |
1 | ||
| 90564-56057 |
ACV20..MTM T=2.10,MARK 2 |
1 | ||
| 90564-56067 |
ACV20..MTM T=2.60,MARK C |
1 | ||
| 90564-56063 |
ACV20..MTM T=2.40,MARK 8 |
1 | ||
| 90564-56070 |
ACV20..MTM T=2.75,MARK F |
1 | ||
| 90564-56060 |
ACV20..MTM T=2.25,MARK 5 |
1 | ||
| 90564-56068 |
ACV20..MTM T=2.65,MARK D |
1 | ||
| 90564-56055 |
ACV20..MTM T=2.00,MARK 0 |
1 | ||
| 90564-56072 |
ACV20..MTM T=2.85,MARK H |
1 | ||
| 90564-56062 |
ACV20..MTM T=2.35,MARK 7 |
1 | ||
| 90564-56071 |
ACV20..MTM T=2.80,MARK G |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-57001 |
ACV20..MTM |
1 | ||
| 90366-57001 |
ACV20,MCV20..MTM |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-50072 |
ACV20..MTM |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-28020 |
ACV20..MTM |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-28020 |
ACV20..MTM |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-28010 |
ACV20..MTM |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-28010 |
ACV20..MTM |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
MCV20..ATM;ACV20,SXV20 |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-28010 |
ACV20..MTM |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
ACV20..MTM |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
ACV20..MTM |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-28250 |
ACV20 T=1.2,MARK 3 |
2 | ||
| 41361-28240 |
ACV20 T=1.1,MARK 2 |
2 | ||
| 41361-28260 |
ACV20 T=1.3,MARK 4 |
2 | ||
| 41361-28230 |
ACV20 T=1.0,MARK 1 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-28250 |
ACV20 T=1.2,MARK 3 |
2 | ||
| 41361-28240 |
ACV20 T=1.1,MARK 2 |
2 | ||
| 41361-28260 |
ACV20 T=1.3,MARK 4 |
2 | ||
| 41361-28230 |
ACV20 T=1.0,MARK 1 |
2 | ||
