MCL25L-PFAQKK (2003)
Toyota Sienna
Production
Jan 2003
-
Sep 2005
Engine
3MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0301-0509)

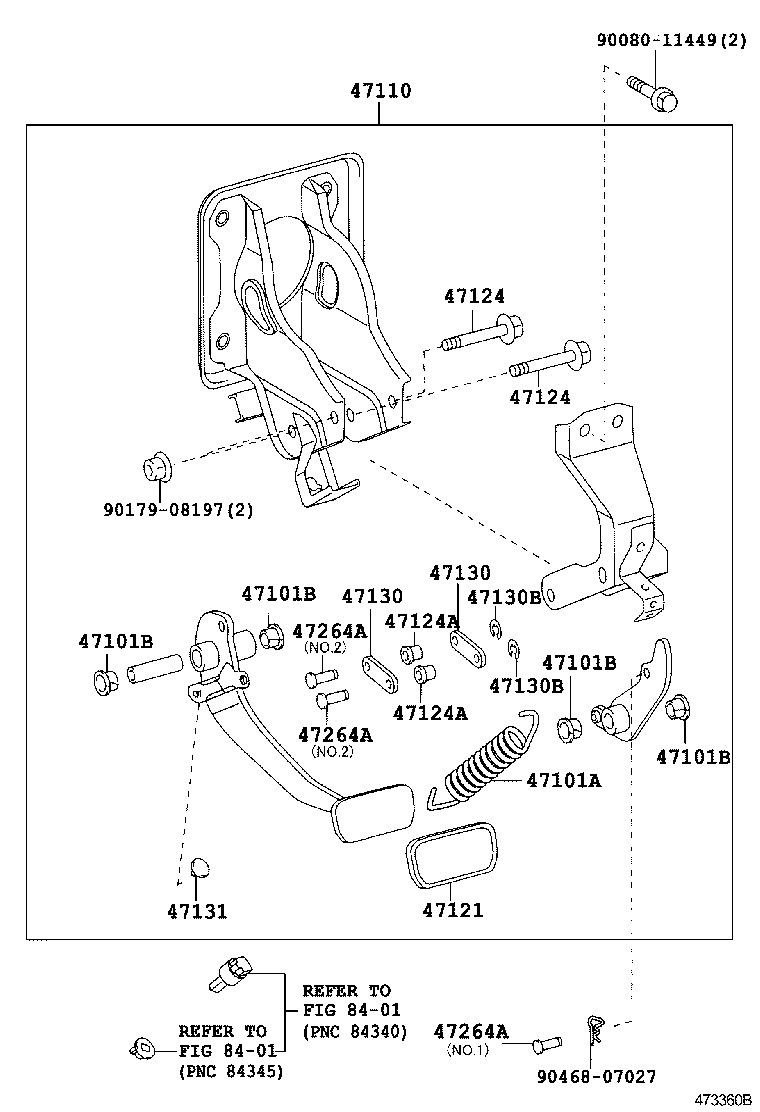

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90506-18083 |
MCL2# |
1 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-14015 |
MCL2# |
4 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-14015 |
MCL2# |
4 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-14015 |
MCL2# |
4 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-14015 |
MCL2# |
4 | ||
| 47110 - SUPPORT ASSY, BRAKE PEDAL | ||||
| 47110-08020 |
MCL2# |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-52010 |
MCL2# |
1 | ||
| 47124 - SHAFT, BRAKE PEDAL | ||||
| 90080-10297 |
MCL2# |
2 | ||
| 47124 - SHAFT, BRAKE PEDAL | ||||
| 90080-10297 |
MCL2# |
2 | ||
| 47124A - COLLAR(FOR BRAKE PEDAL SHAFT) | ||||
| 47144-34010 |
MCL2# |
2 | ||
| 47124A - COLLAR(FOR BRAKE PEDAL SHAFT) | ||||
| 47144-34010 |
MCL2# |
2 | ||
| 47130 - LINK ASSY, BRAKE PEDAL | ||||
| 47130-60020 |
MCL2# |
2 | ||
| 47130 - LINK ASSY, BRAKE PEDAL | ||||
| 47130-60020 |
MCL2# |
2 | ||
| 47130B - RING E, BRAKE PEDAL LINK PIN | ||||
| 96160-00400 |
MCL2# |
2 | ||
| 47130B - RING E, BRAKE PEDAL LINK PIN | ||||
| 96160-00400 |
MCL2# |
2 | ||
| 47131 - CUSHION(FOR STOP LAMP SWITCH) | ||||
| 90541-06049 |
MCL2# |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90240-06023 |
MCL2# NO.1 |
1 | ||
| 90249-06172 |
MCL2# NO.2 |
2 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90240-06023 |
MCL2# NO.1 |
1 | ||
| 90249-06172 |
MCL2# NO.2 |
2 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90240-06023 |
MCL2# NO.1 |
1 | ||
| 90249-06172 |
MCL2# NO.2 |
2 | ||
| Common parts | ||||
| 90080-11449 | ||||
| 90179-08197 | ||||
| 90468-07027 | ||||
| Linked diagrams | ||||
| 8401 | ||||
