MCL25L-PFAEKK (2003)
Toyota Sienna
Production
Jan 2003
-
Sep 2005
Engine
3MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(0301- )
Click highlighted areas on diagram
FLOOR & LOWER BACK PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52561C - RETAINER, REAR BUMPER, UPPER CENTER | ||||
| 52561-08020 |
MCL2# |
4 | ||
| 57645 - REINFORCEMENT, REAR SIDE MEMBER, RH | ||||
| 57645-08020 |
MCL2# |
1 | ||
| 57646A - REINFORCEMENT, REAR SIDE MEMBER, LH | ||||
| 57646-08020 |
MCL2# |
1 | ||
| 57665 - PANEL, LOWER BACK SIDE, RH | ||||
| 57665-08020 |
MCL2# |
1 | ||
| 57666 - PANEL, LOWER BACK SIDE, LH | ||||
| 57666-08020 |
MCL2# |
1 | ||
| 58249A - REINFORCEMENT, REAR SEAT MOUNTING | ||||
| 58205-08010 |
MCL2# |
1 | ||
| 58303E - REINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, RH | ||||
| 58303-08010 |
MCL2# |
1 | ||
| 58304E - REINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, LH | ||||
| 58304-08010 |
MCL2# |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-08031 |
MCL2# |
1 | ||
| 58311-08030 |
MCL2# |
1 | ||
| 58338A - REINFORCEMENT, REAR FLOOR PAN, NO.2 | ||||
| 58338-08020 |
MCL2# |
1 | ||
| 58351A - BRACKET, SPARE WHEEL CARRIER | ||||
| 58351-33010 |
MCL2# |
1 | ||
| 58354B - REINFORCEMENT, REAR FLOOR PANEL, NO.4 | ||||
| 58354-08010 |
MCL2# |
2 | ||
| 58354B - REINFORCEMENT, REAR FLOOR PANEL, NO.4 | ||||
| 58354-08010 |
MCL2# |
2 | ||
| 58361D - REINFORCEMENT, REAR FLOOR PANEL, NO.1 RH | ||||
| 58361-08010 |
MCL2# |
1 | ||
| 58371B - PANEL, BODY LOWER BACK, OUTER | ||||
| 58371-08020 |
MCL2# |
1 | ||
| 58372 - PANEL, BODY LOWER BACK, INNER | ||||
| 58372-08020 |
MCL2# |
1 | ||
| 58374A - REINFORCEMENT, BACK DOOR LOCK STRIKER | ||||
| 58374-08020 |
MCL2# |
1 | ||
| 58375E - REINFORCEMENT, BODY LOWER BACK PANEL | ||||
| 58375-08010 |
MCL2# |
1 | ||
| 58376D - REINFORCEMENT, BODY LOWER BACK, LH | ||||
| 58376-08010 |
MCL2# |
1 | ||
| 58377B - RETAINER, LOWER BACK TRIM | ||||
| 58377-08010 |
MCL2# |
3 | ||
| 58388C - PLATE, BODY LOWER BACK REINFORCEMENT, RH | ||||
| 58388-08020 |
MCL2# |
1 | ||
| 58389B - PLATE, BODY LOWER BACK REINFORCEMENT, LH | ||||
| 58389-08010 |
MCL2# |
1 | ||
| 58395E - GUSSET, BACK DOOR OPENING, LOWER RH | ||||
| 58395-08010 |
MCL2# |
1 | ||
| 58396K - GUSSET, BACK DOOR OPENING, LOWER LH | ||||
| 58396-08020 |
MCL2# |
1 | ||
| Common parts | ||||
| 61315-22020 | ||||
| Linked diagrams | ||||
| 5752 | ||||

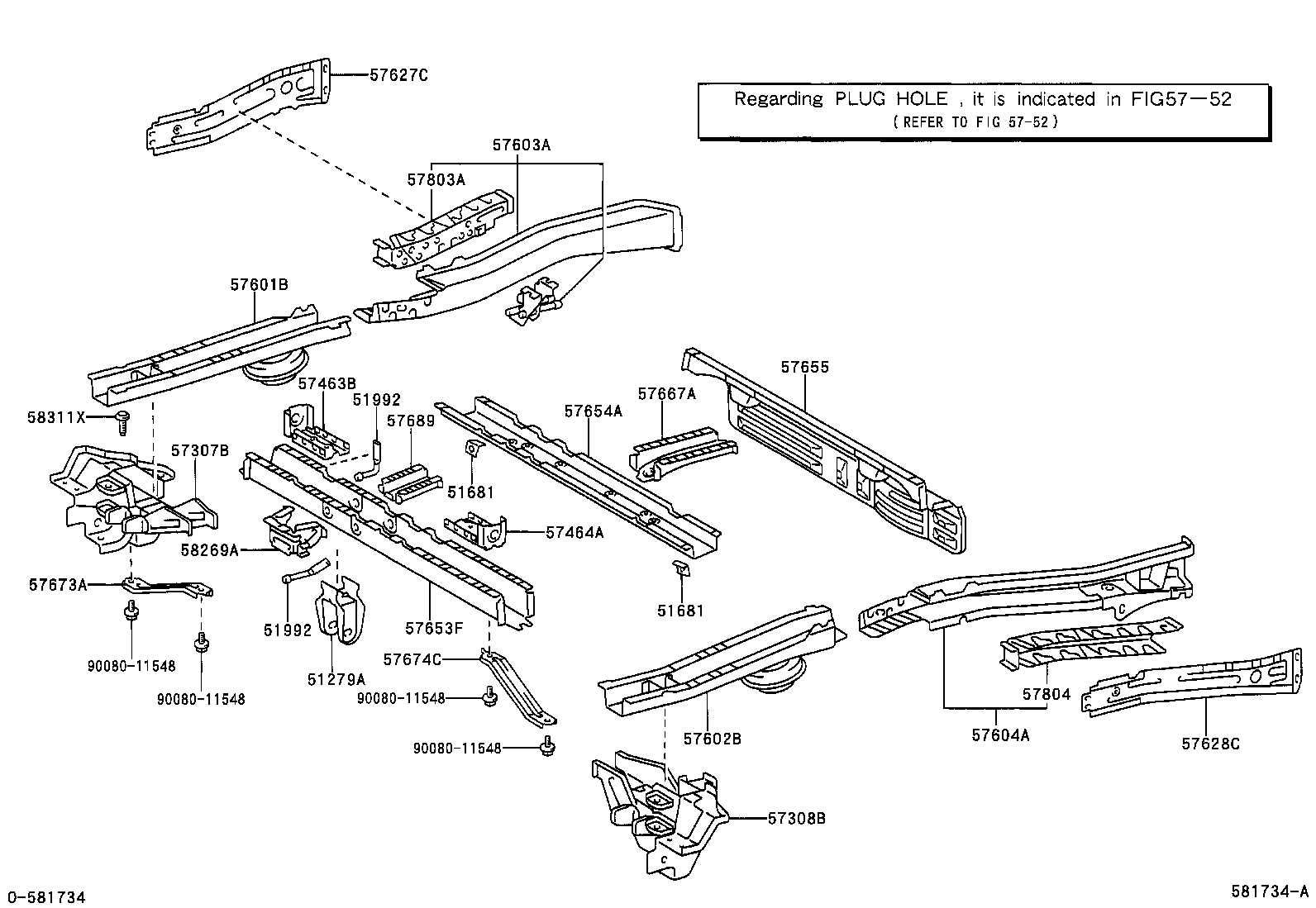

ILLUST NO. 2 OF 2(0301-0509)MCL25
Click highlighted areas on diagram
FLOOR MEMBER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51279A - BRACKET, DIFFERENTIAL SUPPORT | ||||
| 51205-08010 |
MCL25 |
1 | ||
| 51681 - BRACKET, FLEXIBLE HOSE | ||||
| 51681-08020 |
MCL2# |
2 | ||
| 51681 - BRACKET, FLEXIBLE HOSE | ||||
| 51681-08020 |
MCL2# |
2 | ||
| 51992 - HANGER, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17575-20030 |
MCL25 |
2 | ||
| 51992 - HANGER, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17575-20030 |
MCL25 |
2 | ||
| 57307B - OUTRIGGER SUB-ASSY, NO.4 RH | ||||
| 57307-08010 |
MCL2# |
1 | ||
| 57308B - OUTRIGGER SUB-ASSY, NO.4 LH | ||||
| 57308-08010 |
MCL2# |
1 | ||
| 57463B - REINFORCEMENT, CENTER FLOOR CROSSMEMBER, RH | ||||
| 57463-08010 |
MCL2# |
1 | ||
| 57464A - REINFORCEMENT, CENTER FLOOR CROSSMEMBER, LH | ||||
| 57464-08010 |
MCL2# |
1 | ||
| 57601B - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH | ||||
| 57601-08020 |
MCL2# |
1 | ||
| 57602B - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH | ||||
| 57602-08030 |
MCL25 |
1 | ||
| 57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH | ||||
| 57603-08020 |
MCL2# |
1 | ||
| 57603-08021 |
MCL2# |
1 | ||
| 57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH | ||||
| 57604-08020 |
MCL2# |
1 | ||
| 57627C - COVER, REAR FLOOR SIDE MEMBER, RH | ||||
| 57627-08010 |
MCL2# |
1 | ||
| 57628C - COVER, REAR FLOOR SIDE MEMBER, LH | ||||
| 57628-08020 |
MCL2# |
1 | ||
| 57653F - MEMBER, REAR FLOOR CROSS, NO.2 | ||||
| 57653-08020 |
MCL2# |
1 | ||
| 57654A - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57654-08020 |
MCL2# |
1 | ||
| 57655 - MEMBER, REAR FLOOR CROSS, NO.5 | ||||
| 57607-08020 |
MCL25 |
1 | ||
| 57667A - REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.4 | ||||
| 57667-08020 |
MCL2# |
1 | ||
| 57673A - BRACE, REAR FLOOR NO.2 CROSSMEMBER, RH | ||||
| 57673-08010 |
MCL2# |
1 | ||
| 57674C - BRACE, REAR FLOOR NO.2 CROSSMEMBER, LH | ||||
| 57673-08010 |
MCL2# |
1 | ||
| 57689 - REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2 | ||||
| 57689-08010 |
MCL2# |
1 | ||
| 57803A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH | ||||
| 57803-08010 |
MCL2# |
1 | ||
| 57804 - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH | ||||
| 57804-08010 |
MCL2# |
1 | ||
| 58269A - BRACKET, PARKING BRAKE CABLE GUIDE, NO.3 | ||||
| 58269-08020 |
MCL2# |
1 | ||
| 58311X - BOLT, REAR FLOOR WELD | ||||
| 90080-11610 |
MCL2# |
1 | ||
| Common parts | ||||
| 90080-11548 | ||||
| Linked diagrams | ||||
| 5752 | ||||
