MCL25L-PFAEKK (2003)

Toyota Sienna

Production Jan 2003 - Sep 2005
Engine 3MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0301-0612)3MZFE..MCL25

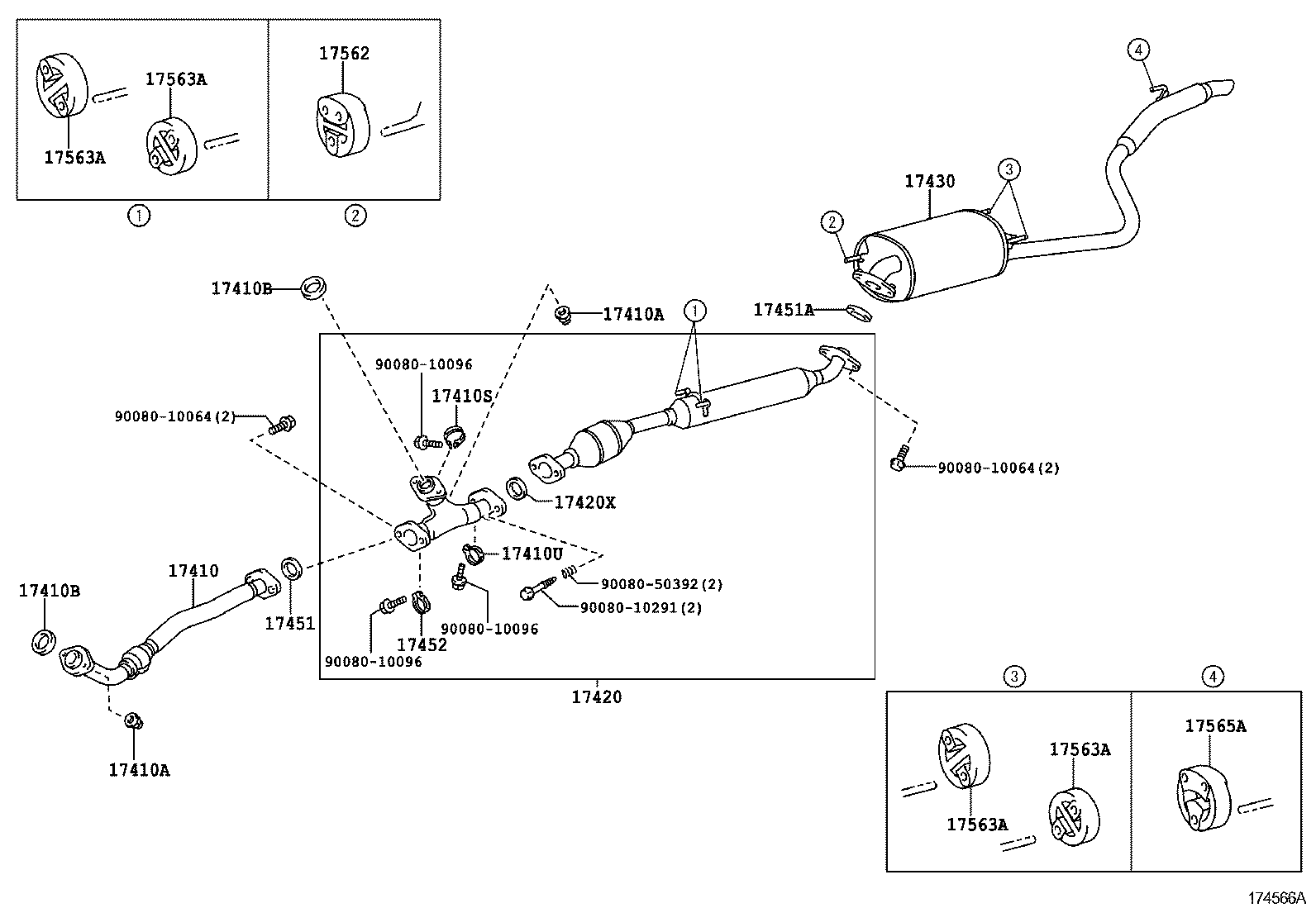

Click highlighted areas on diagram

diagram 17410 17410A 17410A 17410B 17410B 17410S 17410U 17420 17420X 17430 17451 17451A 17452 17562 17563A 17563A 17563A 17563A 17565A 9008010064 9008010064 9008010096 9008010096 9008010096 9008010291 9008050392
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-0A400

3MZFE..MCL25

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

3MZFE..MCL2#

 4
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

3MZFE..MCL2#

 4
17410B - GASKET, EXHAUST PIPE
90080-43036

3MZFE..MCL2#

 2
17410B - GASKET, EXHAUST PIPE
90080-43036

3MZFE..MCL2#

 2
17410S - CLAMP NO.1, EXHAUST PIPE FRONT (FOR CENTER)
90080-46088

3MZFE..MCL25

 1
17410U - CLAMP NO.2, EXHAUST PIPE FRONT (FOR CENTER)
90080-46121

3MZFE..MCL25

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-0A260

3MZFE..MCL25

 1
17420X - GASKET, EXHAUST PIPE, CENTER
17451-0A010

3MZFE..MCL25

(L)

 1
17451-0A010

3MZFE..MCL25

 1
17451-0D020

3MZFE..MCL25

 1
17451-20020

3MZFE..MCL25

(J)

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-0A280

3MZFE..MCL25

 1
17451 - GASKET, EXHAUST PIPE
90917-06083

3MZFE..MCL25

 1
17451A - GASKET, EXHAUST PIPE, NO.2
90080-43026

3MZFE..MCL2#

 1
17452 - CLAMP, EXHAUST PIPE
90461-12359

3MZFE..MCL25

 1
17562 - SUPPORT, EXHAUST PIPE, NO.2
17565-0A180

3MZFE..MCL25

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-0A160

3MZFE..MCL25

 4
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-0A160

3MZFE..MCL25

 4
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-0A160

3MZFE..MCL25

 4
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-0A160

3MZFE..MCL25

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0A100

3MZFE..MCL25

 1
17565-0A190

3MZFE..MCL25

 1
Common parts
90080-10064
90080-10096
90080-10291
90080-50392
