MCL25L-PFAEKA (2003)

Toyota Sienna

Production Jan 2003 - Sep 2005
Engine 3MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )3MZFE

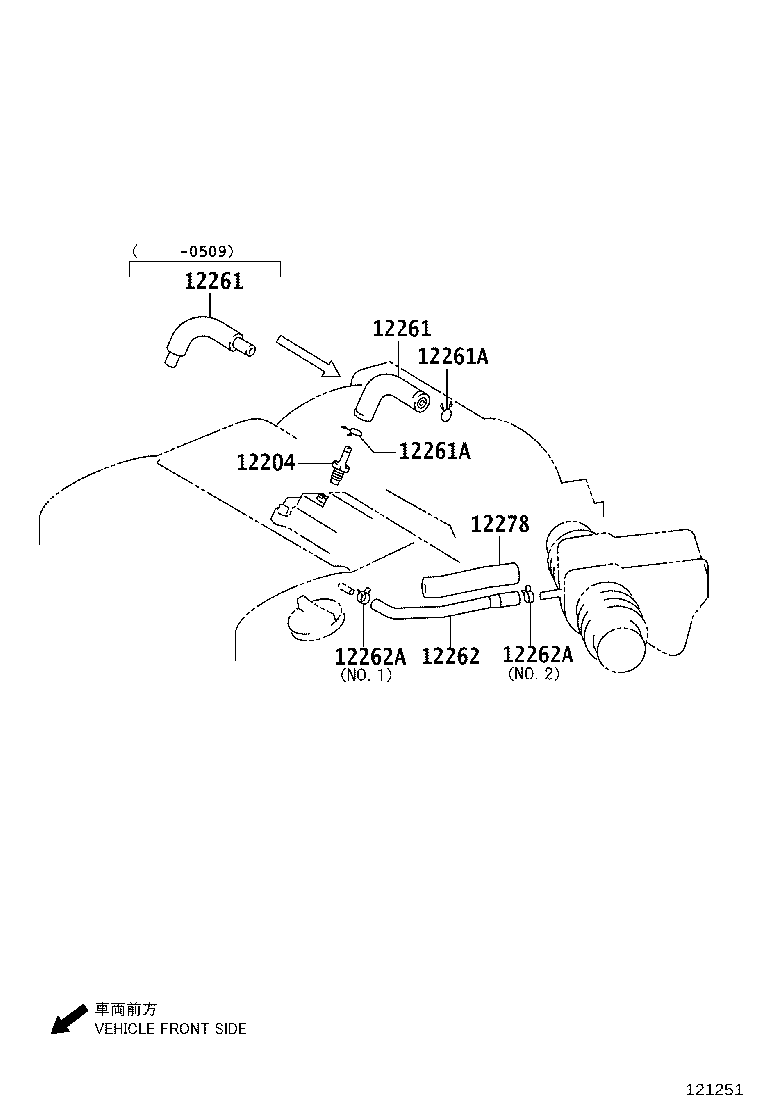

Click highlighted areas on diagram

diagram 12204 12261 12261 12261A 12261A 12262 12262A 12262A 12278
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-20060

3MZFE..MCL2#

 1
12204-20040

3MZFE..MCL2#

 1
12204-20040

3MZFE..MCL2#

 1
12261 - HOSE, VENTILATION
12261-20011

3MZFE..MCL2#

 1
12261-20090

3MZFE..MCL2#

 1
12261 - HOSE, VENTILATION
12261-20011

3MZFE..MCL2#

 1
12261-20090

3MZFE..MCL2#

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14017

3MZFE..MCL2#

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14017

3MZFE..MCL2#

 2
12262 - HOSE, VENTILATION, NO.2
12261-0A020

3MZFE..MCL2#

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
96134-41900

3MZFE..MCL2#

NO.2

 1
96134-51700

3MZFE..MCL2#

NO.1

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
96134-41900

3MZFE..MCL2#

NO.2

 1
96134-51700

3MZFE..MCL2#

NO.1

 1
12278 - INSULATOR, VENTILATION HOSE HEAT
12278-AA020

3MZFE..MCL2#

 1
