MCL25L-PFADKK (2005)
Toyota Sienna
Production
Sep 2005
-
Dec 2006
Engine
3MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0509- )GSL25,MCL25

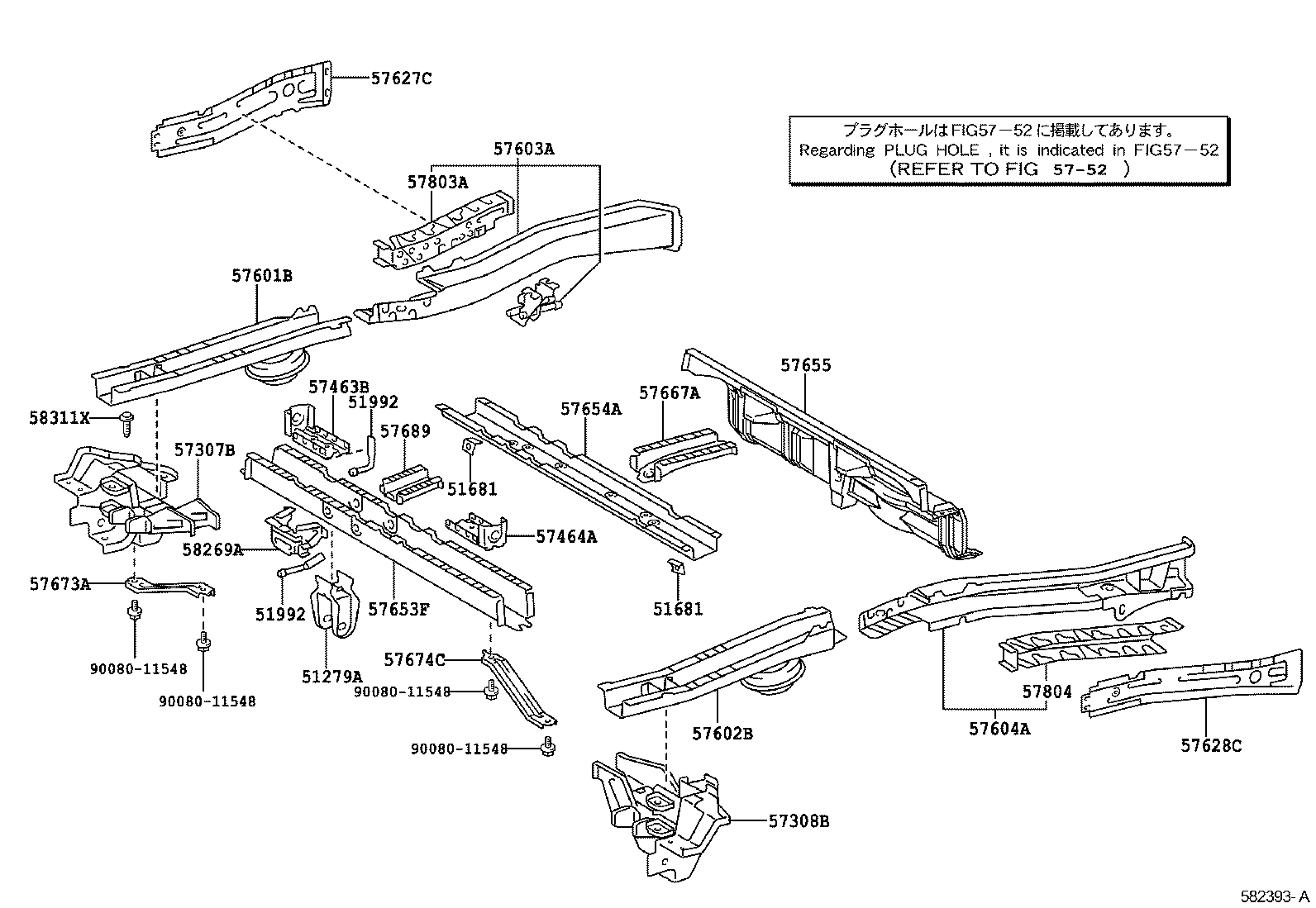

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51279A - BRACKET, DIFFERENTIAL SUPPORT | ||||
| 51205-08010 |
MCL25 |
1 | ||
| 51205-08010 |
MCL25 |
1 | ||
| 51681 - BRACKET, FLEXIBLE HOSE | ||||
| 51681-08020 |
MCL2# |
2 | ||
| 51681-08020 |
MCL2# |
2 | ||
| 51681 - BRACKET, FLEXIBLE HOSE | ||||
| 51681-08020 |
MCL2# |
2 | ||
| 51681-08020 |
MCL2# |
2 | ||
| 51992 - HANGER, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17575-20030 |
MCL25 |
2 | ||
| 17575-20030 |
MCL25 |
2 | ||
| 57307B - OUTRIGGER SUB-ASSY, NO.4 RH | ||||
| 57307-08010 |
MCL2# |
1 | ||
| 57307-08010 |
MCL2# |
1 | ||
| 57308B - OUTRIGGER SUB-ASSY, NO.4 LH | ||||
| 57308-08010 |
MCL2# |
1 | ||
| 57308-08010 |
MCL2# |
1 | ||
| 57463B - REINFORCEMENT, CENTER FLOOR CROSSMEMBER, RH | ||||
| 57463-08010 |
MCL2# |
1 | ||
| 57463-08010 |
MCL2# |
1 | ||
| 57464A - REINFORCEMENT, CENTER FLOOR CROSSMEMBER, LH | ||||
| 57464-08010 |
MCL2# |
1 | ||
| 57464-08010 |
MCL2# |
1 | ||
| 57601B - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH | ||||
| 57601-08020 |
MCL2# |
1 | ||
| 57601-08020 |
MCL2# |
1 | ||
| 57602B - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH | ||||
| 57602-08030 |
MCL25 |
1 | ||
| 57602-08030 |
MCL25 |
1 | ||
| 57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH | ||||
| 57603-08020 |
MCL2# |
1 | ||
| 57603-08022 |
MCL2# |
1 | ||
| 57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH | ||||
| 57604-08020 |
MCL2# |
1 | ||
| 57604-08021 |
MCL2# |
1 | ||
| 57627C - COVER, REAR FLOOR SIDE MEMBER, RH | ||||
| 57627-08010 |
MCL2# |
1 | ||
| 57627-08010 |
MCL2# |
1 | ||
| 57628C - COVER, REAR FLOOR SIDE MEMBER, LH | ||||
| 57628-08020 |
MCL2# |
1 | ||
| 57628-08020 |
MCL2# |
1 | ||
| 57653F - MEMBER, REAR FLOOR CROSS, NO.2 | ||||
| 57653-08020 |
MCL2# |
1 | ||
| 57653-08020 |
MCL2# |
1 | ||
| 57654A - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57654-08020 |
MCL2# |
1 | ||
| 57654-08020 |
MCL2# |
1 | ||
| 57655 - MEMBER, REAR FLOOR CROSS, NO.5 | ||||
| 57607-08020 |
MCL25 |
1 | ||
| 57607-08040 |
MCL25 |
1 | ||
| 57667A - REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.4 | ||||
| 57667-08020 |
MCL2# |
1 | ||
| 57667-08020 |
MCL2# |
1 | ||
| 57673A - BRACE, REAR FLOOR NO.2 CROSSMEMBER, RH | ||||
| 57673-08010 |
MCL2# |
1 | ||
| 57673-08010 |
MCL2# |
1 | ||
| 57674C - BRACE, REAR FLOOR NO.2 CROSSMEMBER, LH | ||||
| 57673-08010 |
MCL2# |
1 | ||
| 57673-08010 |
MCL2# |
1 | ||
| 57689 - REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2 | ||||
| 57689-08010 |
MCL2# |
1 | ||
| 57689-08010 |
MCL2# |
1 | ||
| 57803A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH | ||||
| 57803-08010 |
MCL2# |
1 | ||
| 57803-08010 |
MCL2# |
1 | ||
| 57804 - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH | ||||
| 57804-08010 |
MCL2# |
1 | ||
| 57804-08010 |
MCL2# |
1 | ||
| 58269A - BRACKET, PARKING BRAKE CABLE GUIDE, NO.3 | ||||
| 58269-08020 |
MCL2# |
1 | ||
| 58269-08020 |
MCL2# |
1 | ||
| 58311X - BOLT, REAR FLOOR WELD | ||||
| 90080-11610 |
MCL2# |
1 | ||
| 90080-11610 |
MCL2# |
1 | ||
| Common parts | ||||
| 90080-11548 | ||||
| Linked diagrams | ||||
| 5752 | ||||
