MCL25L-PFADKK (2004)

Toyota Sienna

Production Sep 2004 - Sep 2005
Engine 3MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

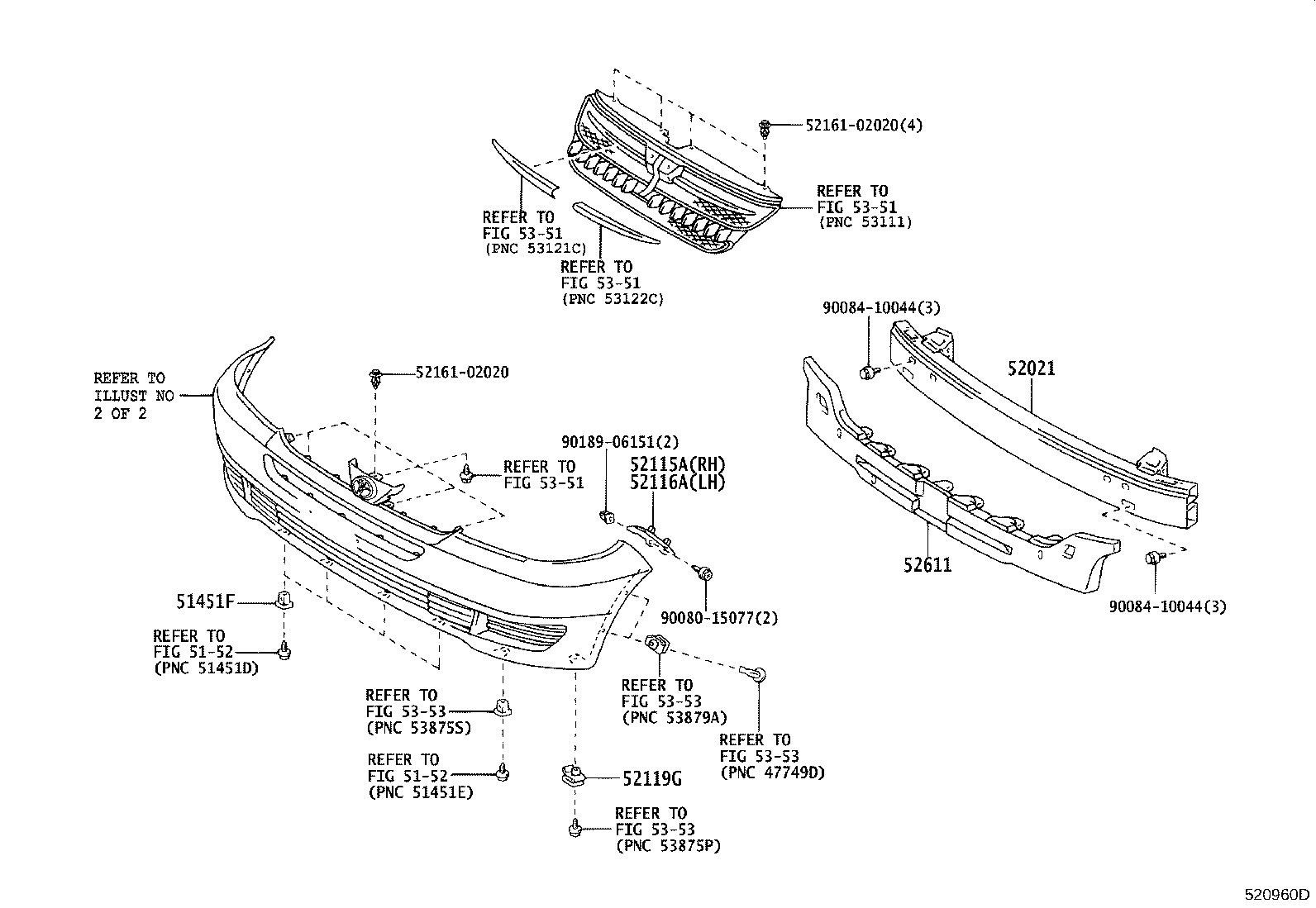

ILLUST NO. 1 OF 2(0301-0509)

Click highlighted areas on diagram

diagram 51451F 5152 5152 52021 52115A 52116A 52119G 5216102020 5216102020 52611 5351 5351 5351 5351 5353 5353 5353 5353 9008015077 9008410044 9008410044 9018906151
Part # Description Qty Price
51451F - GROMMET, NO.1
90189-06193

MCL2#

 4
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-AE010

MCL2#

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-AE010

MCL2#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-AE010

MCL2#

 1
52119G - CLIP, NO.1
90467-05114

MCL2#

 2
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-AE010

MCL2#

 1
Common parts
52161-02020
90080-15077
90084-10044
90189-06151
Linked diagrams
5152
5351
5353

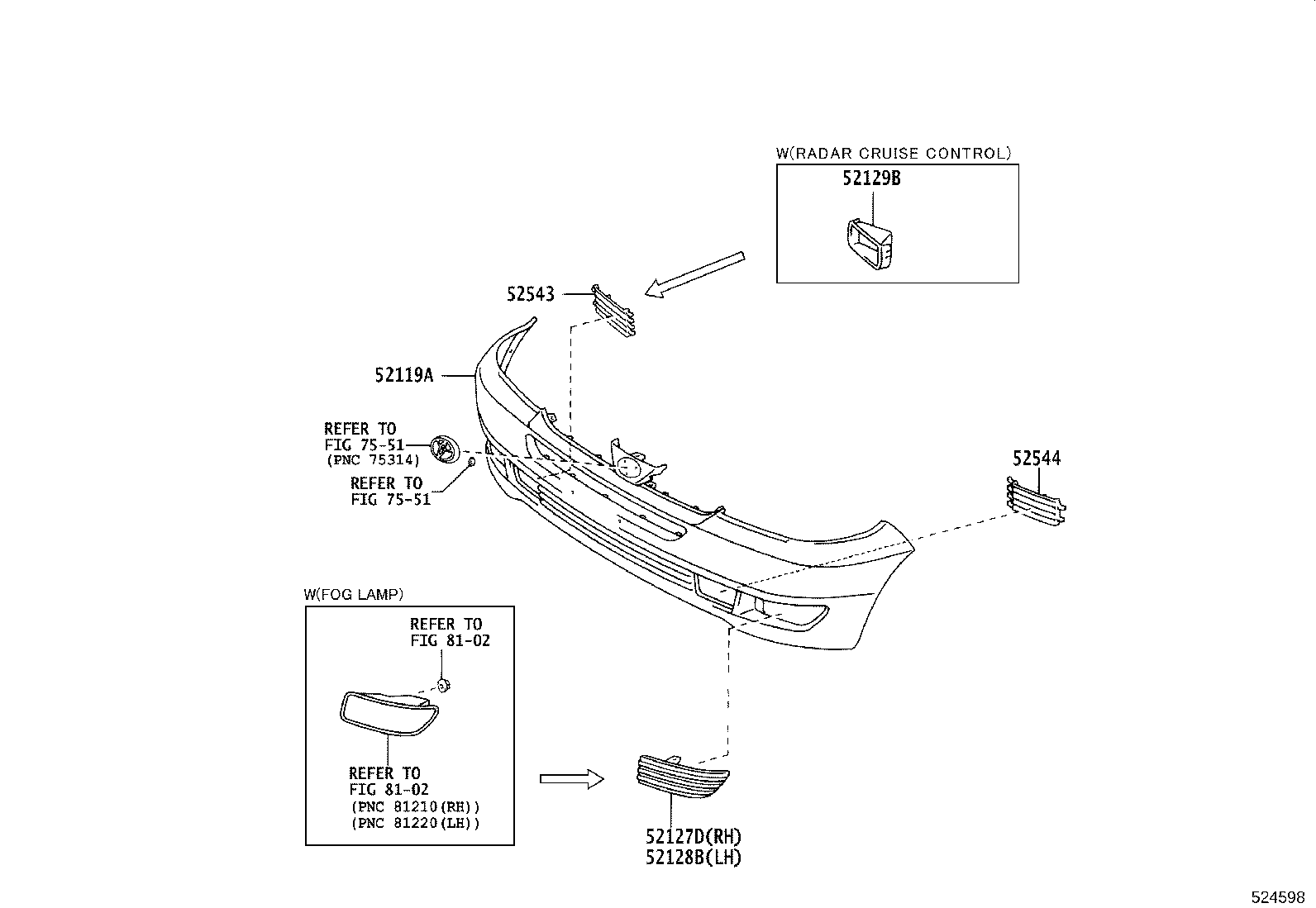

ILLUST NO. 2 OF 2(0301-0509)

Click highlighted areas on diagram

diagram 52119A 52127D 52128B 52129B 52543 52544 7551 7551 8102 8102
Part # Description Qty Price
52119A - COVER, FRONT BUMPER
52119-AE900

MCL2#

PAINT REQ.

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-AE010

MCL2#..CE,LE

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-AE010

MCL2#..CE,LE

 1
52543 - SEAL, FRONT BUMPER SIDE, RH
52543-AE010

MCL2#

 1
52544 - SEAL, FRONT BUMPER SIDE, LH
52544-AE010

MCL2#

 1
Linked diagrams
7551
8102
