MCL20L-PRAQKK (2003)

Toyota Sienna

Production Jan 2003 - Sep 2005
Engine 3MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )3MZFE

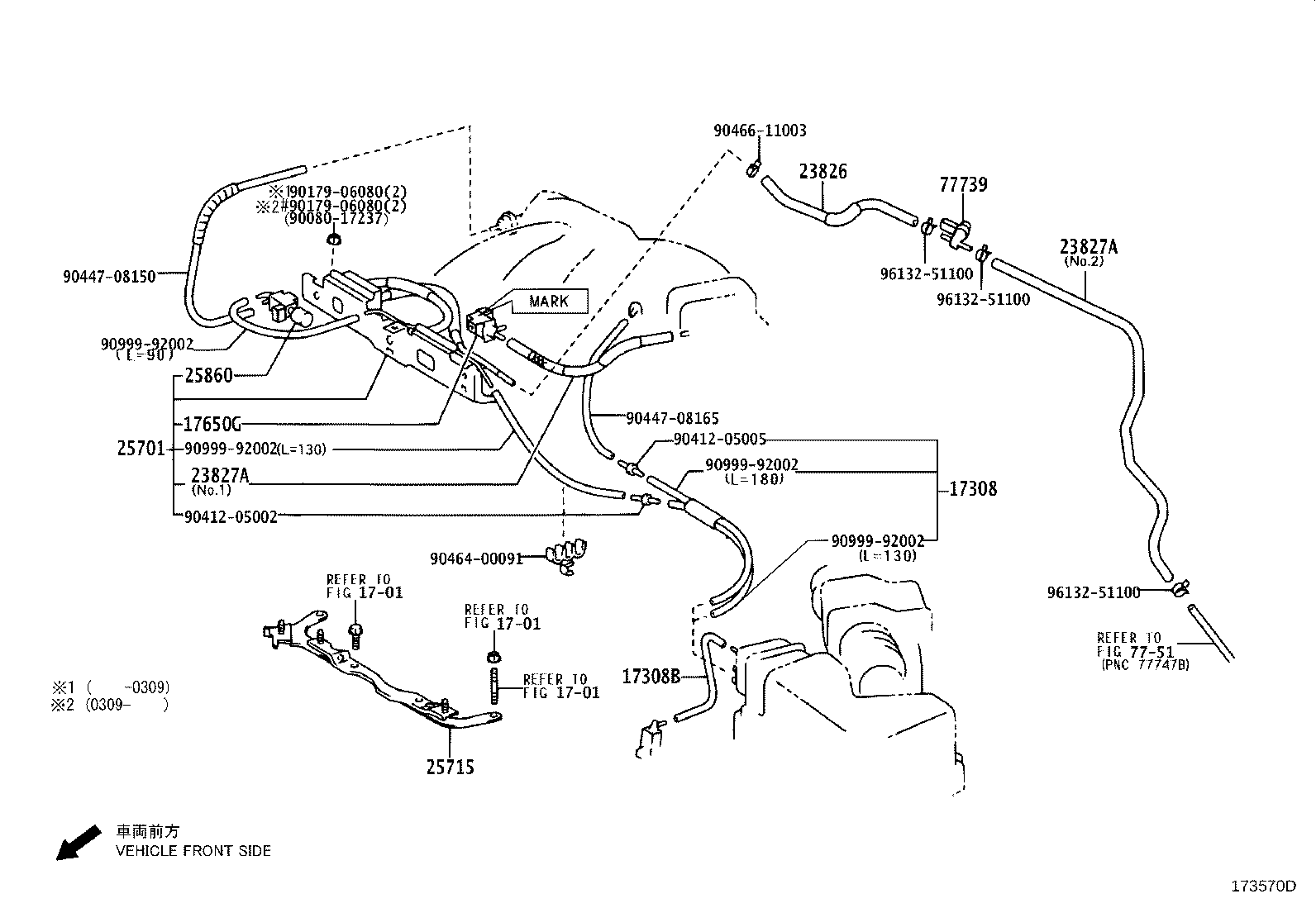

Click highlighted areas on diagram

diagram 1701 1701 1701 17308 17308B 17650G 23826 23827A 23827A 25701 25715 25860 7751 77739 9008017237 9017906080 9017906080 9041205002 9041205005 9044708150 9044708165 9046400091 9046611003 9099992002 9099992002 9099992002 9099992002 9613251100 9613251100 9613251100
Part # Description Qty Price
17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)
17308-0A050

3MZFE..MCL2#

 1
17308B - HOSE SUB-ASSY, VACUUM
17308-0A060

3MZFE..MCL2#

 1
17650G - VALVE, DUTY VACUUM SWITCHING
90910-12259

3MZFE..MCL2#

MARK 90910-12259

 1
90910-12272

3MZFE..MCL2#

MARK 90910-12272

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-AA010

3MZFE..MCL2#

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-20060

3MZFE..MCL2#

NO.1

 1
23827-AA010

3MZFE..MCL2#

NO.2

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-20060

3MZFE..MCL2#

NO.1

 1
23827-AA010

3MZFE..MCL2#

NO.2

 1
25701 - VALVE SET, EMISSION CONTROL
25701-20220

3MZFE..MCL2#

 1
25715 - BRACKET, EMISSION CONTROL VALVE
25715-20020

3MZFE..MCL2#

 1
25715-20021

3MZFE..MCL2#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-62010

3MZFE..MCL2#

 1
77739 - VALVE, EVAP SERVICE PORT
77739-06010

MCL2#

 1
Common parts
90080-17237
90179-06080
90412-05002
90412-05005
90447-08150
90447-08165
90464-00091
90466-11003
90999-92002
96132-51100
Linked diagrams
1701
7751
