MCL20L-PRAQKK (2005)

Toyota Sienna

Production Sep 2005 - Dec 2006
Engine 3MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

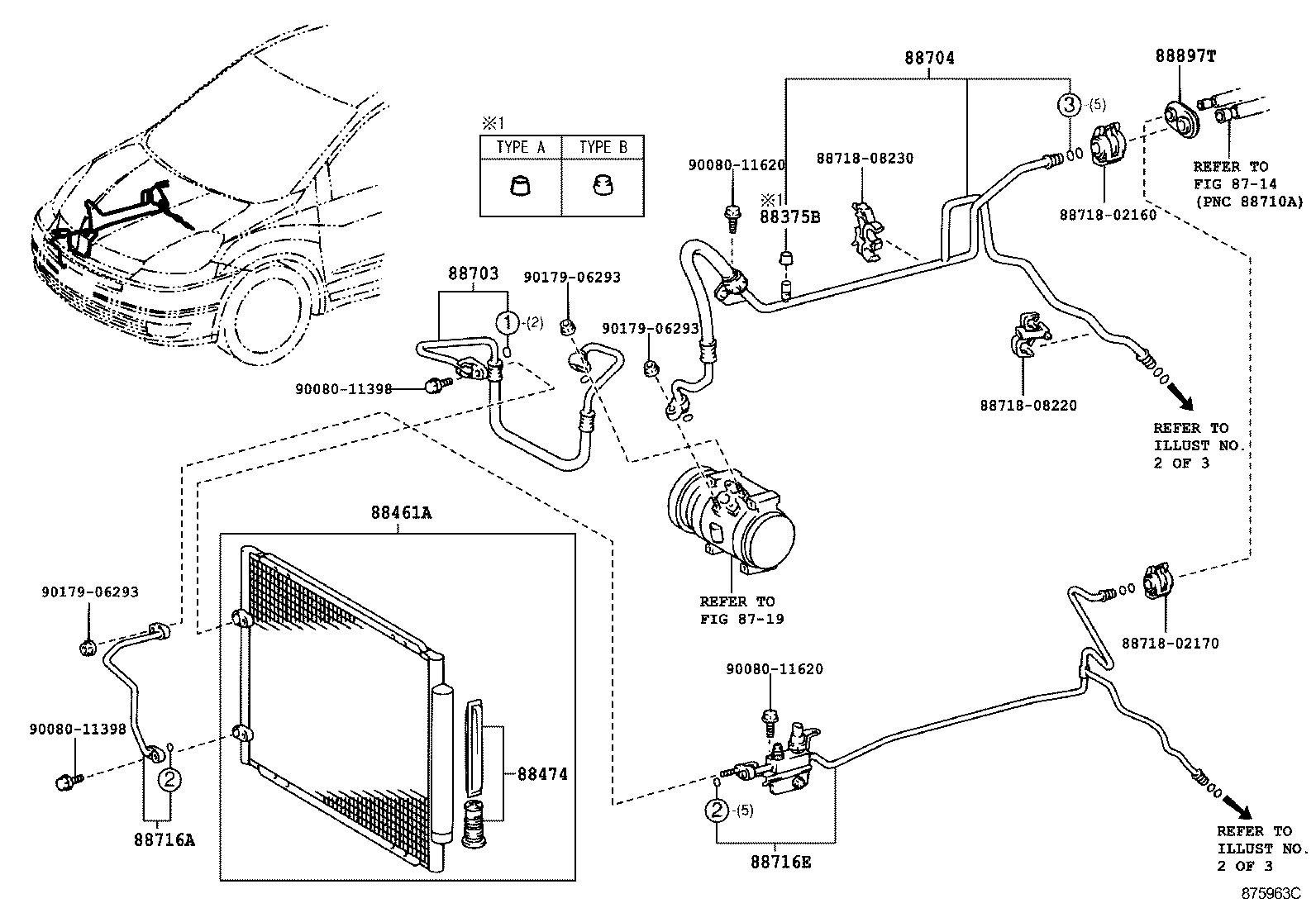

ILLUST NO. 1 OF 3(0301-0612)

Click highlighted areas on diagram

FRONT

diagram 8714 8719 88375B 88461A 88474 88703 88704 88716A 88716E 8871802160 8871802170 8871808220 8871808230 88897T 9008011398 9008011398 9008011620 9008011620 9017906293 9017906293 9017906293
Part # Description Qty Price
88375B - CAP, SERVICE VALVE, NO.1
88375-02070

MCL2#

TYPE B:REFER ILLUST.

 1
88375-02070

MCL2#

 1
88375-02050

MCL2#

TYPE A:REFER ILLUST.

 1
88461A - CORE, COOLER CONDENSER
88461-08010

MCL2#

 1
88461-08010

MCL2#

 1
88474 - DRYER, COOLER
88474-17010

MCL2#

 1
88474-17010

MCL2#

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-08030

MCL2#

 1
88703-08020

MCL2#

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-08130

MCL2#

 1
88704-08140

MCL2#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-08200

MCL2#

 1
88716-08270

MCL2#

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88706-08120

MCL2#

 1
88706-08130

MCL2#

 1
88897T - GROMMET, COOLER
88897-06010

MCL2#

 1
88897-06010

MCL2#

 1
Common parts
88718-02160
88718-02170
88718-08220
88718-08230
90080-11398
90080-11620
90179-06293
Linked diagrams
8714
8719
