Toyota Sienna MCL20 HEATING & AIR CONDITIONING - WATER PIPING

Manufacturers Home
Toyota
US
SIENNA
MCL20L-PRAQKK (2005)
8716 - HEATING & AIR CONDITIONING - WATER PIPING

MCL20L-PRAQKK (2005)

Toyota Sienna

Production Sep 2005 - Dec 2006

Engine 3MZFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

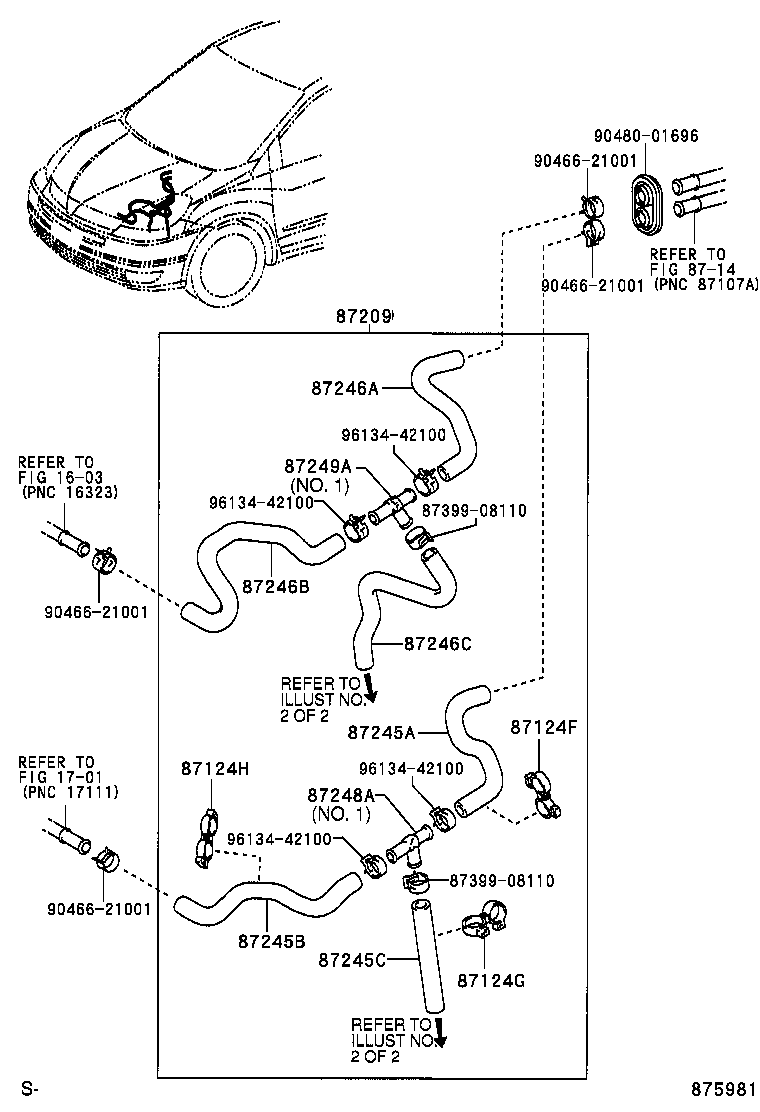

ILLUST NO. 1 OF 2(0301-0612)

Click highlighted areas on diagram

FRONT

Part #	Description	Period	Qty
87124F - CLAMP, HEATER HOSE, NO.1
87124-08070	MCL2#	09/2005 - 12/2006	1
87124-08070	MCL2#	01/2003 - 09/2005	1
87124G - CLAMP, HEATER HOSE, NO.2
87124-08080	MCL2#	01/2003 - 09/2005	1
87124-08080	MCL2#	09/2005 - 12/2006	1
87124H - CLAMP, HEATER HOSE, NO.3
87124-42030	MCL2#	09/2005 - 12/2006	1
87124-42030	MCL2#	01/2003 - 09/2005	1
87209 - HOSE SUB-ASSY, WATER
87209-08010	MCL2#	09/2005 - 12/2006	1
87209-08010	MCL2#	01/2003 - 09/2005	1
87245A - HOSE, HEATER WATER, INLET A
87245-08050	MCL2#	01/2003 - 09/2005	1
87245-08050	MCL2#	09/2005 - 12/2006	1
87245B - HOSE, HEATER WATER, INLET B
87245-08060	MCL2#	09/2005 - 12/2006	1
87245-08060	MCL2#	01/2003 - 09/2005	1
87245C - HOSE, HEATER WATER ,INLET C
87245-08070	MCL2#	01/2003 - 09/2005	1
87245-08070	MCL2#	09/2005 - 12/2006	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-08080	MCL2#	09/2005 - 12/2006	1
87245-08080	MCL2#	01/2003 - 09/2005	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-08090	MCL2#	01/2003 - 09/2005	1
87245-08090	MCL2#	09/2005 - 12/2006	1
87246C - HOSE, HEATER WATER, OUTLET C
87245-08100	MCL2#	09/2005 - 12/2006	1
87245-08100	MCL2#	01/2003 - 09/2005	1
87248A - PIPE, HEATER WATER INLET, A
87248-08100	MCL2# NO.2	09/2005 - 10/2005	1
87248-08100	MCL2# NO.2	01/2003 - 09/2005	1
87248-60460	MCL2# NO.1	01/2003 - 09/2005	1
87248-60460	MCL2# NO.1	09/2005 - 12/2006	1
87248-08100	MCL2# NO.2	11/2005 - 12/2006	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-60460	MCL2# NO.1	01/2003 - 09/2005	1
87248-08090	MCL2# NO.2	11/2005 - 12/2006	1
87248-08090	MCL2# NO.2	01/2003 - 09/2005	1
87248-60460	MCL2# NO.1	09/2005 - 12/2006	1
87248-08090	MCL2# NO.2	09/2005 - 10/2005	1
Common parts
87399-08110
90466-21001
90480-01696
96134-42100
Linked diagrams
1603
1701
8714

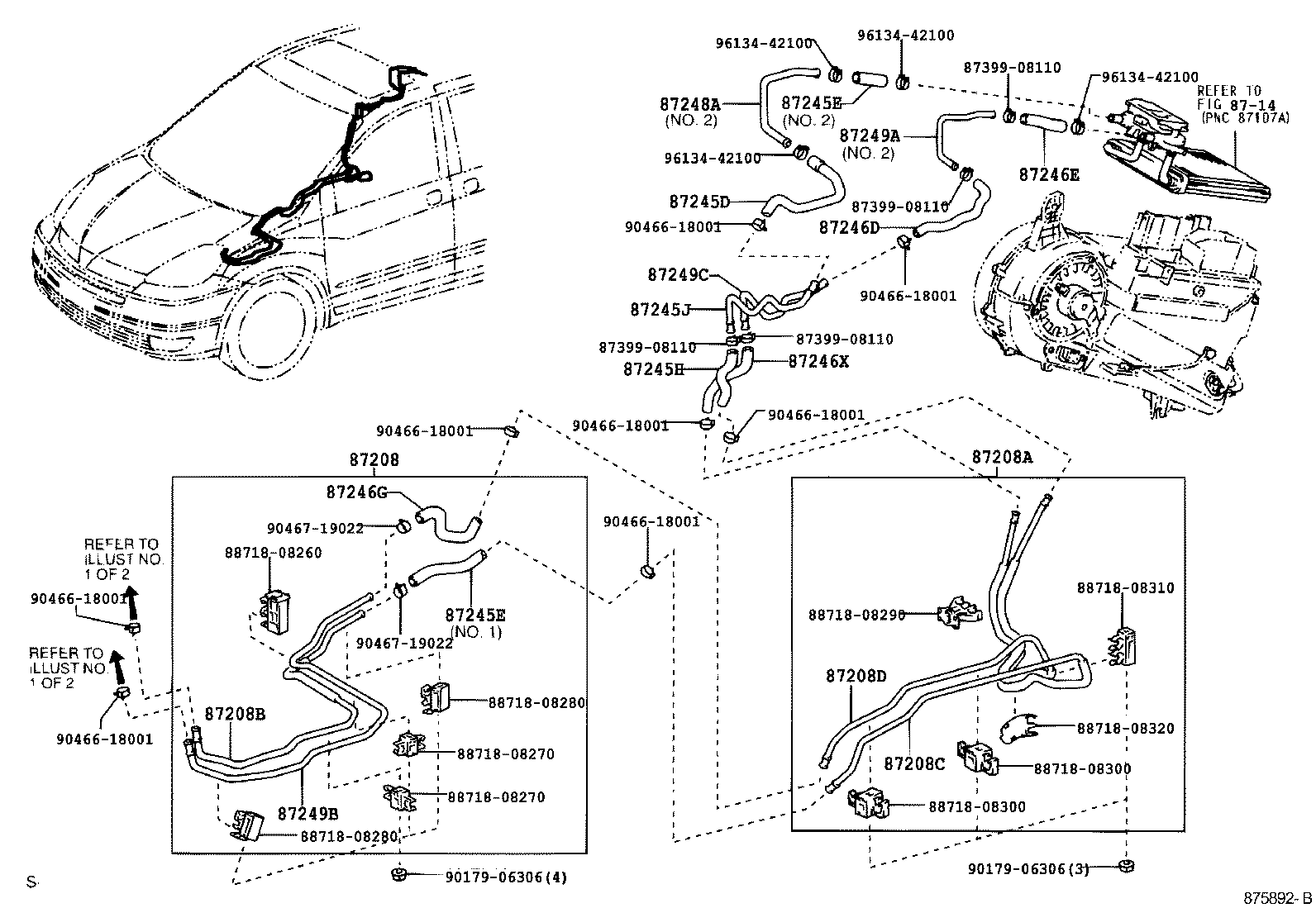

ILLUST NO. 2 OF 2(0301-0612)

Click highlighted areas on diagram

REAR

Part #	Description	Period	Qty
87208 - PIPE SUB-ASSY, HEATER WATER
87208-08030	MCL2#	09/2005 - 12/2006	1
87208-08030	MCL2#	01/2003 - 09/2005	1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-08040	MCL2#	01/2003 - 09/2005	1
87208-08040	MCL2#	09/2005 - 12/2006	1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-08050	MCL2#	01/2003 - 09/2005	1
87208-08050	MCL2#	09/2005 - 12/2006	1
87208C - PIPE SUB-ASSY, HEATER WATER, C
87208-08060	MCL2#	01/2003 - 09/2005	1
87208-08060	MCL2#	09/2005 - 12/2006	1
87208D - PIPE SUB-ASSY, HEATER WATER, D
87208-08070	MCL2#	01/2003 - 09/2005	1
87208-08070	MCL2#	09/2005 - 12/2006	1
87245D - HOSE, HEATER WATER, INLET D
87245-08170	MCL2#	01/2003 - 09/2005	1
87245-08170	MCL2#	11/2005 - 12/2006	1
87245-08170	MCL2#	09/2005 - 10/2005	1
87245E - HOSE, HEATER WATER, INLET E
99556-30100	MCL20,25..XLE *H,L=95,NO.2	11/2005 - 12/2006	1
87245-08120	MCL2# NO.1	09/2005 - 12/2006	1
87245-08120	MCL2# NO.1	01/2003 - 09/2005	1
99556-30100	MCL20,25..XLE *H,L=95,NO.2	01/2003 - 09/2004	1
99556-30100	MCL2#..CE,LE *H,L=95,NO.2	01/2003 - 09/2005	1
99556-30100	MCL2#..CE,LE *H,L=95,NO.2	09/2005 - 12/2006	1
99556-30100	MCL20,25..XLE *H,L=60,NO.2	09/2005 - 11/2005	1
87245E - HOSE, HEATER WATER, INLET E
99556-30100	MCL20,25..XLE *H,L=95,NO.2	11/2005 - 12/2006	1
87245-08120	MCL2# NO.1	09/2005 - 12/2006	1
87245-08120	MCL2# NO.1	01/2003 - 09/2005	1
99556-30100	MCL20,25..XLE *H,L=95,NO.2	01/2003 - 09/2004	1
99556-30100	MCL2#..CE,LE *H,L=95,NO.2	01/2003 - 09/2005	1
99556-30100	MCL2#..CE,LE *H,L=95,NO.2	09/2005 - 12/2006	1
99556-30100	MCL20,25..XLE *H,L=60,NO.2	09/2005 - 11/2005	1
87245H - HOSE, HEATER WATER, INLET H
87245-08130	MCL2#	09/2005 - 12/2006	1
87245-08130	MCL2#	01/2003 - 09/2005	1
87245J - HOSE, HEATER WATER, INLET J
87248-08070	MCL2#	01/2003 - 09/2005	1
87248-08070	MCL2#	09/2005 - 12/2006	1
87246D - HOSE, HEATER WATER, OUTLET D
87245-08150	MCL2#	01/2003 - 09/2005	1
87245-08150	MCL2#	11/2005 - 12/2006	1
87245-08150	MCL2#	09/2005 - 10/2005	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-08160	MCL2#	01/2003 - 09/2005	1
87245-08160	MCL2#	11/2005 - 12/2006	1
87245-08160	MCL2#	09/2005 - 10/2005	1
87246G - HOSE, HEATER WATER, OUTLET G
87245-08110	MCL2#	09/2005 - 12/2006	1
87245-08110	MCL2#	01/2003 - 09/2005	1
87246X - HOSE, HEATER WATER
87245-08140	MCL2#	01/2003 - 09/2005	1
87245-08140	MCL2#	09/2005 - 12/2006	1
87248A - PIPE, HEATER WATER INLET, A
87248-08100	MCL2# NO.2	09/2005 - 10/2005	1
87248-08100	MCL2# NO.2	01/2003 - 09/2005	1
87248-60460	MCL2# NO.1	01/2003 - 09/2005	1
87248-60460	MCL2# NO.1	09/2005 - 12/2006	1
87248-08100	MCL2# NO.2	11/2005 - 12/2006	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-60460	MCL2# NO.1	01/2003 - 09/2005	1
87248-08090	MCL2# NO.2	11/2005 - 12/2006	1
87248-08090	MCL2# NO.2	01/2003 - 09/2005	1
87248-60460	MCL2# NO.1	09/2005 - 12/2006	1
87248-08090	MCL2# NO.2	09/2005 - 10/2005	1
87249B - PIPE, HEATER WATER OUTLET, B
87248-08060	MCL2#	01/2003 - 09/2005	1
87248-08060	MCL2#	09/2005 - 12/2006	1
87249C - PIPE, HEATER WATER OUTLET, C
87248-08080	MCL2#	01/2003 - 09/2005	1
87248-08080	MCL2#	09/2005 - 12/2006	1
Common parts
87399-08110
88718-08260
88718-08270
88718-08280
88718-08290
88718-08300
88718-08310
88718-08320
90179-06306
90466-18001
90467-19022
96134-42100
Linked diagrams
8714
