MCL20L-PRAQKK (2005)

Toyota Sienna

Production Sep 2005 - Dec 2006
Engine 3MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(0301-0612)CE,LE

Click highlighted areas on diagram

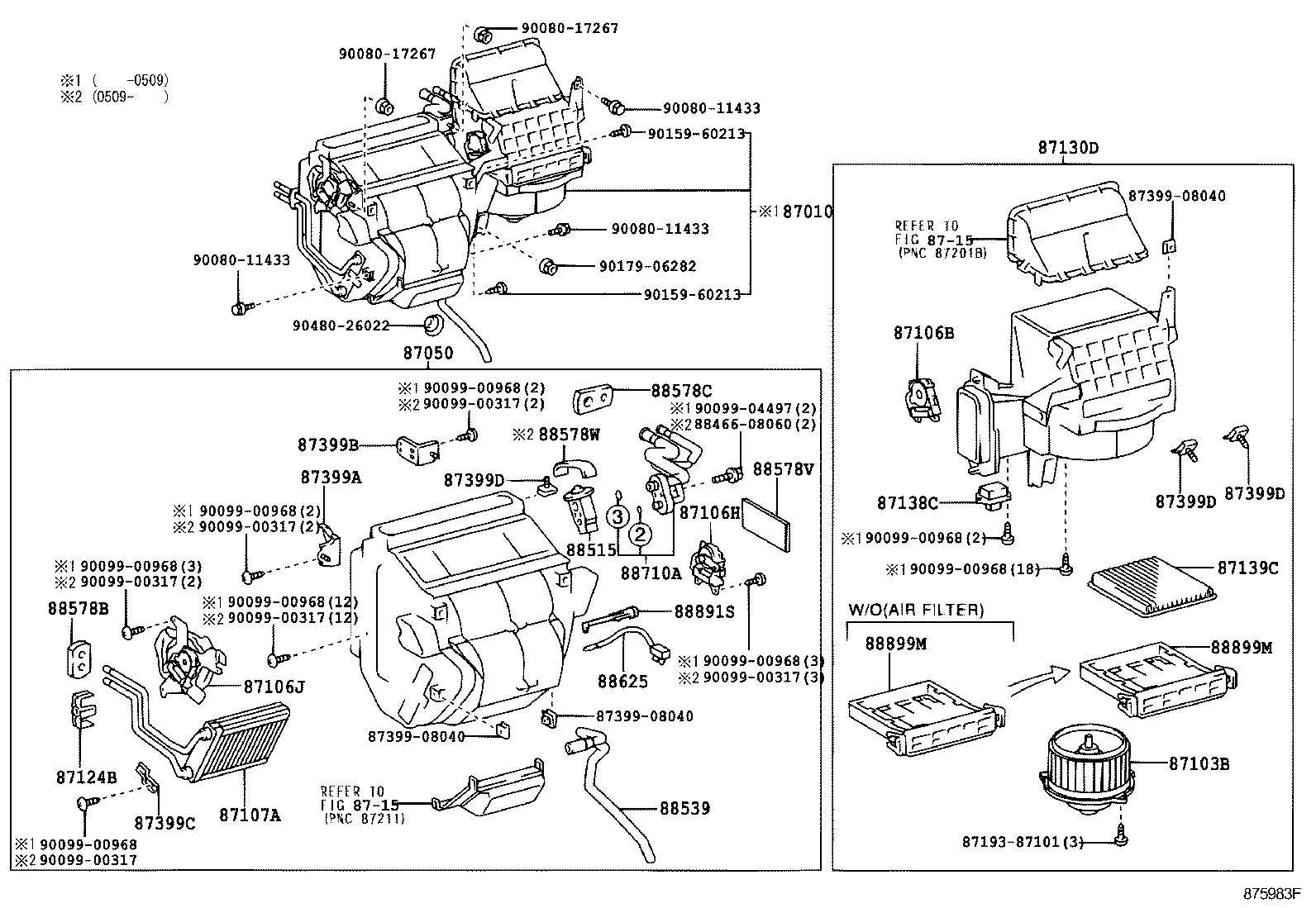

FRONT,MANUAL AIR CONDITIONER

diagram 87010 87050 87103B 87106B 87106H 87106J 87107A 87124B 87130D 87138C 87139C 8715 8715 8719387101 8739908040 8739908040 8739908040 87399A 87399B 87399C 87399D 87399D 87399D 8846608060 88515 88539 88578B 88578C 88578V 88578W 88625 88710A 88891S 88899M 88899M 9008011433 9008011433 9008011433 9008017267 9008017267 9009900317 9009900317 9009900317 9009900317 9009900317 9009900317 9009900968 9009900968 9009900968 9009900968 9009900968 9009900968 9009900968 9009900968 9009904497 9015960213 9015960213 9017906282 9048026022
Part # Description Qty Price
87010 - UNIT ASSY, AIR CONDITIONER
87010-08060

MCL20..LE;MCL25..CE,LE

 1
87010-08070

MCL20,25..XLE

 1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-08020

MCL20,25..XLE

 1
87050-08010

MCL20..LE;MCL25..CE,LE

 1
87050-08030

MCL2#..CE,LE

 1
87050-08040

MCL20,25..XLE

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-08050

MCL2#

 1
87103-08090

MCL2#

 1
87103-08080

MCL2#

 1
87106B - SERVO SUB-ASSY, DAMPER(FOR COOLING UNIT)
87106-08080

MCL20,25..XLE

 1
87106-08090

MCL2#..CE,LE

 1
87106-08090

MCL20..LE;MCL25..CE,LE

 1
87106-08080

MCL20,25..XLE

 1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-08060

MCL2#

 1
87106-08060

MCL25;MCL20..LE,XLE

 1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-08050

MCL25;MCL20..LE,XLE

 1
87106-08050

MCL2#

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-08051

MCL2#

REAR

 1
87107-08040

MCL2#

FRONT

 1
87107-08050

MCL2#

REAR

 1
87107-08040

MCL2#

FRONT

 1
87107-08050

MCL2#

REAR

 1
87124B - CLAMP, HEATER
87124-08060

MCL2#

 1
87130D - BLOWER ASSY
87130-08060

MCL20,25..XLE

 1
87130-08080

MCL20,25..XLE

 1
87130-08070

MCL2#..CE,LE

 1
87130-08050

MCL20..LE;MCL25..CE,LE

 1
87138C - RESISTOR, BLOWER
87138-08070

MCL2#..CE,LE

 1
87138-41020

MCL2#..CE,LE

 1
87139C - FILTER, CLEAN AIR
87139-47010

MCL2#..CE,LE

 1
87139-32010

MCL20,25..XLE

 1
87139-06040

MCL2#

 1
87399A - BRACKET, AIR CONDITIONER RADIATOR, NO.1
87399-08010

MCL2#

 1
87399B - BRACKET, AIR CONDITIONER RADIATOR, NO.2
87399-08020

MCL2#

 1
87399C - BRACKET, AIR CONDITIONER RADIATOR, NO.3
87399-08030

MCL2#

 1
87399D - BRACKET, AIR CONDITIONER RADIATOR, NO.4
87399-08050

MCL2#

 3
87399D - BRACKET, AIR CONDITIONER RADIATOR, NO.4
87399-08050

MCL2#

 3
87399D - BRACKET, AIR CONDITIONER RADIATOR, NO.4
87399-08050

MCL2#

 3
88515 - VALVE, COOLER EXPANSION
88515-08070

MCL2#

 1
88515-08090

MCL2#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-08060

MCL2#

REAR

 1
88539-08060

MCL2#

REAR

 1
88539-08050

MCL2#

FRONT

 1
88539-08090

MCL2#..CE,LE

FRONT

 1
88539-08050

MCL20,25..XLE

FRONT

 1
88578B - PACKING, COOLING UNIT, NO.1
88578-42050

MCL2#

 1
88578C - PACKING, COOLING UNIT, NO.2
88578-42060

MCL2#

 1
88578-42060

MCL2#

 1
88578V - PACKING, COOLING UNIT, NO.3
88578-44090

MCL2#

 1
88578-02050

MCL2#

 1
88578W - PACKING, COOLING UNIT, NO.4
88578-12520

MCL20,25..XLE

 1
88578-12520

MCL2#

 1
88625 - THERMISTOR, COOLER, NO.1
88625-08010

MCL2#

FRONT

 1
88625-08010

MCL2#

FRONT

 1
88625-0C010

MCL20,25..XLE

REAR

 1
88625-0C010

MCL20,25..XLE

REAR

 1
88625-0C010

MCL20,25..XLE

REAR

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-08040

MCL2#

 1
88710-08050

MCL2#

 1
88891S - COVER, COOLER, NO.1
88891-20240

MCL20,25..XLE

 1
88891-20240

MCL2#

 1
88899M - PLATE, COVER(FOR AIR FILTER)
88899-41010

MCL20..LE;MCL25..CE,LE

(J)

 1
88899-41010

MCL2#..CE,XLE

(J)

 1
88508-08020

MCL2#

 1
88899M - PLATE, COVER(FOR AIR FILTER)
88899-41010

MCL20..LE;MCL25..CE,LE

(J)

 1
88899-41010

MCL2#..CE,XLE

(J)

 1
88508-08020

MCL2#

 1
Common parts
87193-87101
87399-08040
88466-08060
90080-11433
90080-17267
90099-00317
90099-00968
90099-04497
90159-60213
90179-06282
90480-26022
Linked diagrams
8715

ILLUST NO. 1 OF 3(0301-0612)XLE

Click highlighted areas on diagram

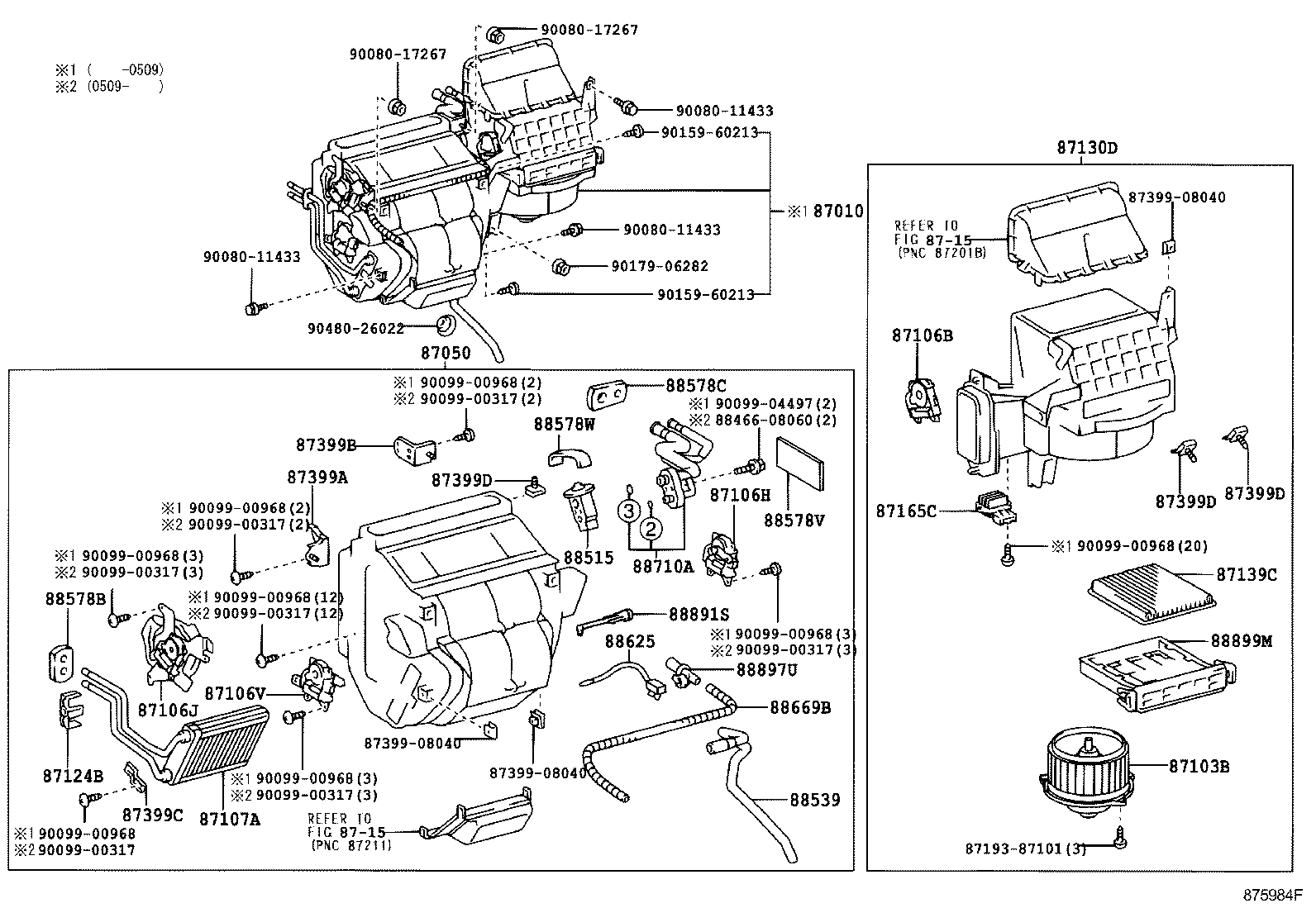

FRONT,AUTO AIR CONDITIONER

diagram 87010 87050 87103B 87106B 87106H 87106J 87106V 87107A 87124B 87130D 87139C 8715 8715 87165C 8719387101 8739908040 8739908040 8739908040 87399A 87399B 87399C 87399D 87399D 87399D 8846608060 88515 88539 88578B 88578C 88578V 88578W 88625 88669B 88710A 88891S 88897U 88899M 9008011433 9008011433 9008011433 9008017267 9008017267 9009900317 9009900317 9009900317 9009900317 9009900317 9009900317 9009900317 9009900968 9009900968 9009900968 9009900968 9009900968 9009900968 9009900968 9009900968 9009904497 9015960213 9015960213 9017906282 9048026022
Part # Description Qty Price
87010 - UNIT ASSY, AIR CONDITIONER
87010-08060

MCL20..LE;MCL25..CE,LE

 1
87010-08070

MCL20,25..XLE

 1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-08020

MCL20,25..XLE

 1
87050-08010

MCL20..LE;MCL25..CE,LE

 1
87050-08030

MCL2#..CE,LE

 1
87050-08040

MCL20,25..XLE

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-08050

MCL2#

 1
87103-08090

MCL2#

 1
87103-08080

MCL2#

 1
87106B - SERVO SUB-ASSY, DAMPER(FOR COOLING UNIT)
87106-08080

MCL20,25..XLE

 1
87106-08090

MCL2#..CE,LE

 1
87106-08090

MCL20..LE;MCL25..CE,LE

 1
87106-08080

MCL20,25..XLE

 1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-08060

MCL2#

 1
87106-08060

MCL25;MCL20..LE,XLE

 1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-08050

MCL25;MCL20..LE,XLE

 1
87106-08050

MCL2#

 1
87106V - SERVO SUB-ASSY, DAMPER(FOR AIRMIX NO.2)
87106-08070

MCL20,25..XLE

 1
87106-08070

MCL20,25..XLE

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-08051

MCL2#

REAR

 1
87107-08040

MCL2#

FRONT

 1
87107-08050

MCL2#

REAR

 1
87107-08040

MCL2#

FRONT

 1
87107-08050

MCL2#

REAR

 1
87124B - CLAMP, HEATER
87124-08060

MCL2#

 1
87130D - BLOWER ASSY
87130-08060

MCL20,25..XLE

 1
87130-08080

MCL20,25..XLE

 1
87130-08070

MCL2#..CE,LE

 1
87130-08050

MCL20..LE;MCL25..CE,LE

 1
87139C - FILTER, CLEAN AIR
87139-47010

MCL2#..CE,LE

 1
87139-32010

MCL20,25..XLE

 1
87139-06040

MCL2#

 1
87165C - CONTROL, BLOWER MOTOR
87165-41010

MCL20,25..XLE

 1
87165-45020

MCL20,25..XLE

 1
87399A - BRACKET, AIR CONDITIONER RADIATOR, NO.1
87399-08010

MCL2#

 1
87399B - BRACKET, AIR CONDITIONER RADIATOR, NO.2
87399-08020

MCL2#

 1
87399C - BRACKET, AIR CONDITIONER RADIATOR, NO.3
87399-08030

MCL2#

 1
87399D - BRACKET, AIR CONDITIONER RADIATOR, NO.4
87399-08050

MCL2#

 3
87399D - BRACKET, AIR CONDITIONER RADIATOR, NO.4
87399-08050

MCL2#

 3
87399D - BRACKET, AIR CONDITIONER RADIATOR, NO.4
87399-08050

MCL2#

 3
88515 - VALVE, COOLER EXPANSION
88515-08070

MCL2#

 1
88515-08090

MCL2#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-08060

MCL2#

REAR

 1
88539-08060

MCL2#

REAR

 1
88539-08050

MCL2#

FRONT

 1
88539-08090

MCL2#..CE,LE

FRONT

 1
88539-08050

MCL20,25..XLE

FRONT

 1
88578B - PACKING, COOLING UNIT, NO.1
88578-42050

MCL2#

 1
88578C - PACKING, COOLING UNIT, NO.2
88578-42060

MCL2#

 1
88578-42060

MCL2#

 1
88578V - PACKING, COOLING UNIT, NO.3
88578-44090

MCL2#

 1
88578-02050

MCL2#

 1
88578W - PACKING, COOLING UNIT, NO.4
88578-12520

MCL20,25..XLE

 1
88578-12520

MCL2#

 1
88625 - THERMISTOR, COOLER, NO.1
88625-08010

MCL2#

FRONT

 1
88625-08010

MCL2#

FRONT

 1
88625-0C010

MCL20,25..XLE

REAR

 1
88625-0C010

MCL20,25..XLE

REAR

 1
88625-0C010

MCL20,25..XLE

REAR

 1
88669B - HOSE, COOLER AIR
88669-08020

MCL20,25..XLE

 1
88669-08020

MCL20,25..XLE

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-08040

MCL2#

 1
88710-08050

MCL2#

 1
88891S - COVER, COOLER, NO.1
88891-20240

MCL20,25..XLE

 1
88891-20240

MCL2#

 1
88897U - PIPE, ASPIRATOR
88897-12210

MCL20,25..XLE

 1
88897-12210

MCL20,25..XLE

 1
88899M - PLATE, COVER(FOR AIR FILTER)
88899-41010

MCL20..LE;MCL25..CE,LE

(J)

 1
88899-41010

MCL2#..CE,XLE

(J)

 1
88508-08020

MCL2#

 1
Common parts
87193-87101
87399-08040
88466-08060
90080-11433
90080-17267
90099-00317
90099-00968
90099-04497
90159-60213
90179-06282
90480-26022
Linked diagrams
8715
