MCL20L-PRAQKK (2005)

Toyota Sienna

Production Sep 2005 - Dec 2006
Engine 3MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0301-0612)

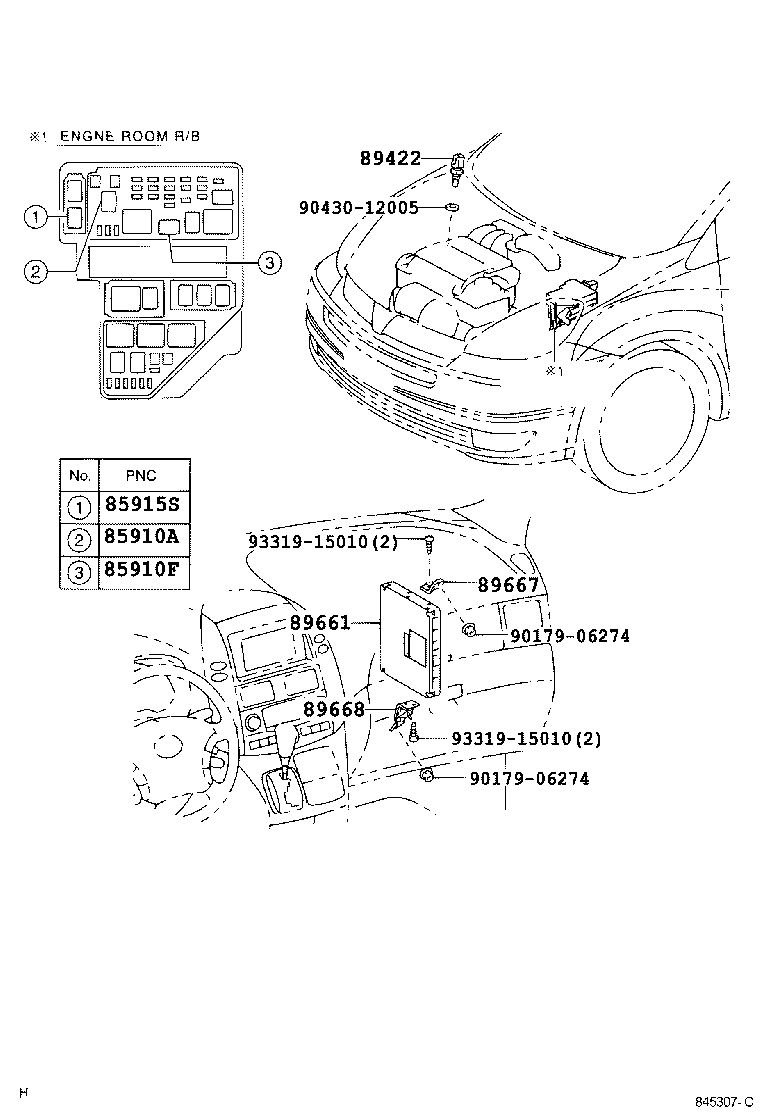

Click highlighted areas on diagram

diagram 85910A 85910F 85915S 89422 89661 89667 89668 9017906274 9017906274 9043012005 9331915010 9331915010
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90080-87026

MCL2#

 1
90080-87026

MCL2#

 1
85910F - RELAY, COMPUTER (FOR EFI)
90080-87026

MCL2#

 1
90080-87026

MCL2#

 1
85915S - RELAY, HEATER (FOR AIR FUEL RATIO SENSOR)
90080-87026

MCL2#

 1
90080-87026

MCL2#

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-35010

MCL2#

 1
89422-35010

MCL2#

 1
89661 - COMPUTER, ENGINE CONTROL
89661-08141

MCL20,23

 1
89661-08090

MCL20,23

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-08030

MCL2#

 1
89667-08030

MCL2#

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-08020

MCL2#

 1
89668-08020

MCL2#

 1
Common parts
90179-06274
90430-12005
93319-15010
