MCL20L-PRAQKK (2005)

Toyota Sienna

Production Sep 2005 - Dec 2006
Engine 3MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 8(0301-0612)

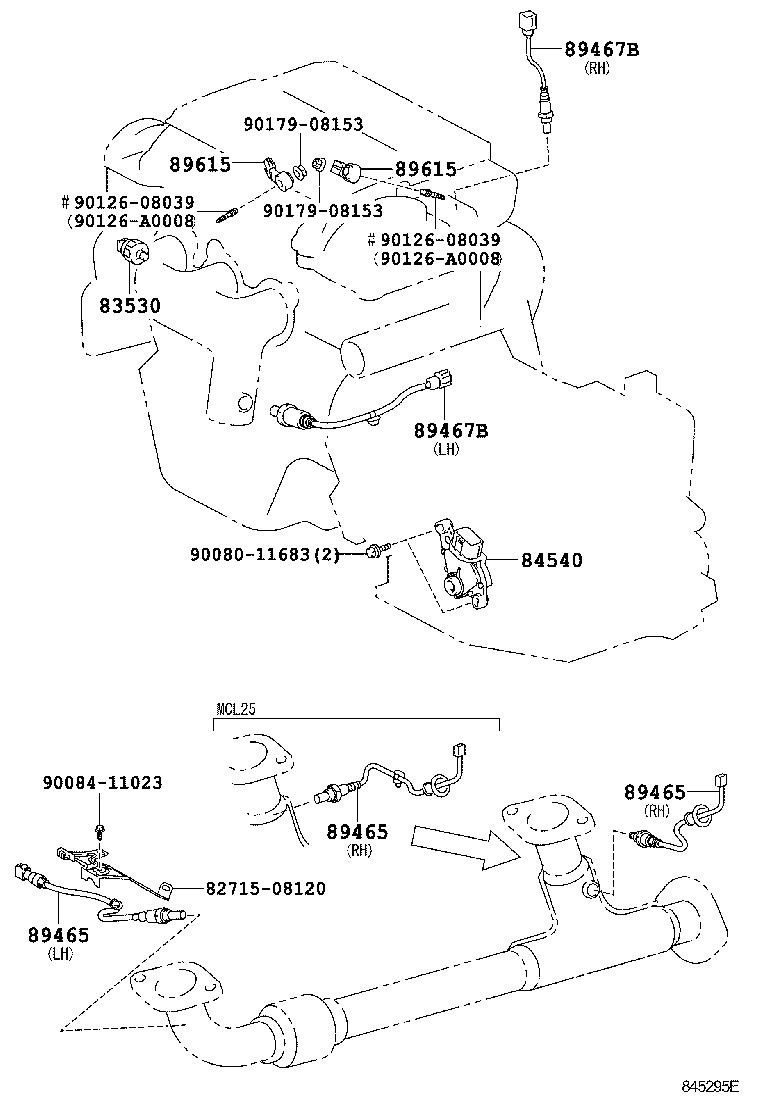

Click highlighted areas on diagram

ENGINE & TRANSMISSION

diagram 8271508120 83530 84540 89465 89465 89465 89467B 89467B 89615 89615 9008011683 9008411023 9012608039 9012608039 90126A0008 90126A0008 9017908153 9017908153
Part # Description Qty Price
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-AA011

MCL2#

 1
83530-AA011

MCL2#

FASCO

 1
83530-0E010

MCL2#

DENSO

 1
84540 - SWITCH ASSY, NEUTRAL START
84540-06010

MCL2#

 1
84540-0E010

MCL2#

 1
89465 - SENSOR, OXYGEN
89465-08030

MCL20,23

RH

 1
89465-08040

MCL2#

LH

 1
89465-08040

MCL2#

LH

 1
89465-08030

MCL20,23

RH

 1
89465 - SENSOR, OXYGEN
89465-08030

MCL20,23

RH

 1
89465-08040

MCL2#

LH

 1
89465-08040

MCL2#

LH

 1
89465-08030

MCL20,23

RH

 1
89465 - SENSOR, OXYGEN
89465-08030

MCL20,23

RH

 1
89465-08040

MCL2#

LH

 1
89465-08040

MCL2#

LH

 1
89465-08030

MCL20,23

RH

 1
89467B - SENSOR, AIR FUEL RATIO
89467-08010

MCL2#

LH

 1
89467-08010

MCL2#

LH

 1
89467-08020

MCL2#

RH

 1
89467-08020

MCL2#

RH

 1
89467B - SENSOR, AIR FUEL RATIO
89467-08010

MCL2#

LH

 1
89467-08010

MCL2#

LH

 1
89467-08020

MCL2#

RH

 1
89467-08020

MCL2#

RH

 1
89615 - SENSOR, KNOCK CONTROL
89615-06010

MCL2#

(L)

 2
89615-20090

MCL2#

(J)

 2
89615-20090

MCL2#

 2
89615 - SENSOR, KNOCK CONTROL
89615-06010

MCL2#

(L)

 2
89615-20090

MCL2#

(J)

 2
89615-20090

MCL2#

 2
Common parts
82715-08120
90080-11683
90084-11023
90126-08039
90126-A0008
90179-08153
