MCL20L-PRAQKK (2005)

Toyota Sienna

Production Sep 2005 - Dec 2006
Engine 3MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0509- )LE,XLE

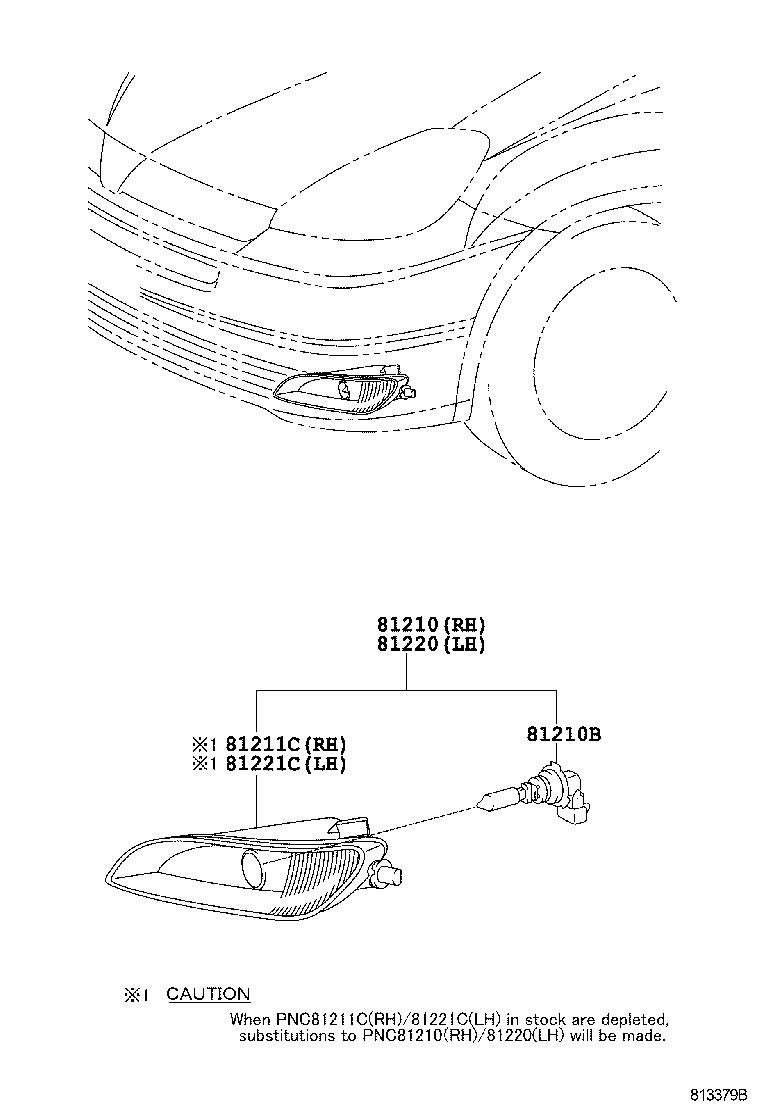

Click highlighted areas on diagram

diagram 81210 81210B 81211C 81220 81221C
Part # Description Qty Price
81210 - LAMP ASSY, FOG
81210-AE020

MCL20,25..LE..CND

FRONT FOG LAMP-WITH

 1
81210-AE010

MCL20,25..XLE

 1
81210-AE020

MCL20,25..XLE

 1
81210-AE010

MCL20,25..LE..CND

FRONT FOG LAMP--WITH

 1
81210B - BULB, FOG LAMP
90080-81084

MCL20,25..XLE

12V 55W

 4
90981-13047

MCL20,25..XLE

12V 51W,HALOGEN

 4
90981-13047

MCL20,25..LE..CND

12V 51W,HALOGEN,FRONT FOG LAMP-WITH

 4
90080-81084

MCL20,25..LE..CND

12V 55W,FRONT FOG LAMP--WITH

 4
81211C - LAMP UNIT, FOG LAMP, RH
81211-AE010

MCL20,25..XLE

 1
81211-AE020

MCL20,25..LE..CND

FRONT FOG LAMP-WITH

 1
81211-AE020

MCL20,25..XLE

 1
81211-AE010

MCL20,25..LE..CND

FRONT FOG LAMP--WITH

 1
81220 - LAMP ASSY, FOG, LH
81220-AE020

MCL20,25..XLE

 1
81220-AE010

MCL20,25..LE..CND

FRONT FOG LAMP--WITH

 1
81220-AE010

MCL20,25..XLE

 1
81220-AE020

MCL20,25..LE..CND

FRONT FOG LAMP-WITH

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-AE010

MCL20,25..XLE

 1
81221-AE020

MCL20,25..XLE

 1
81221-AE010

MCL20,25..LE..CND

FRONT FOG LAMP--WITH

 1
81221-AE020

MCL20,25..LE..CND

FRONT FOG LAMP-WITH

 1
