MCL20L-PRAQKK (2005)

Toyota Sienna

Production Sep 2005 - Dec 2006
Engine 3MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0509- )

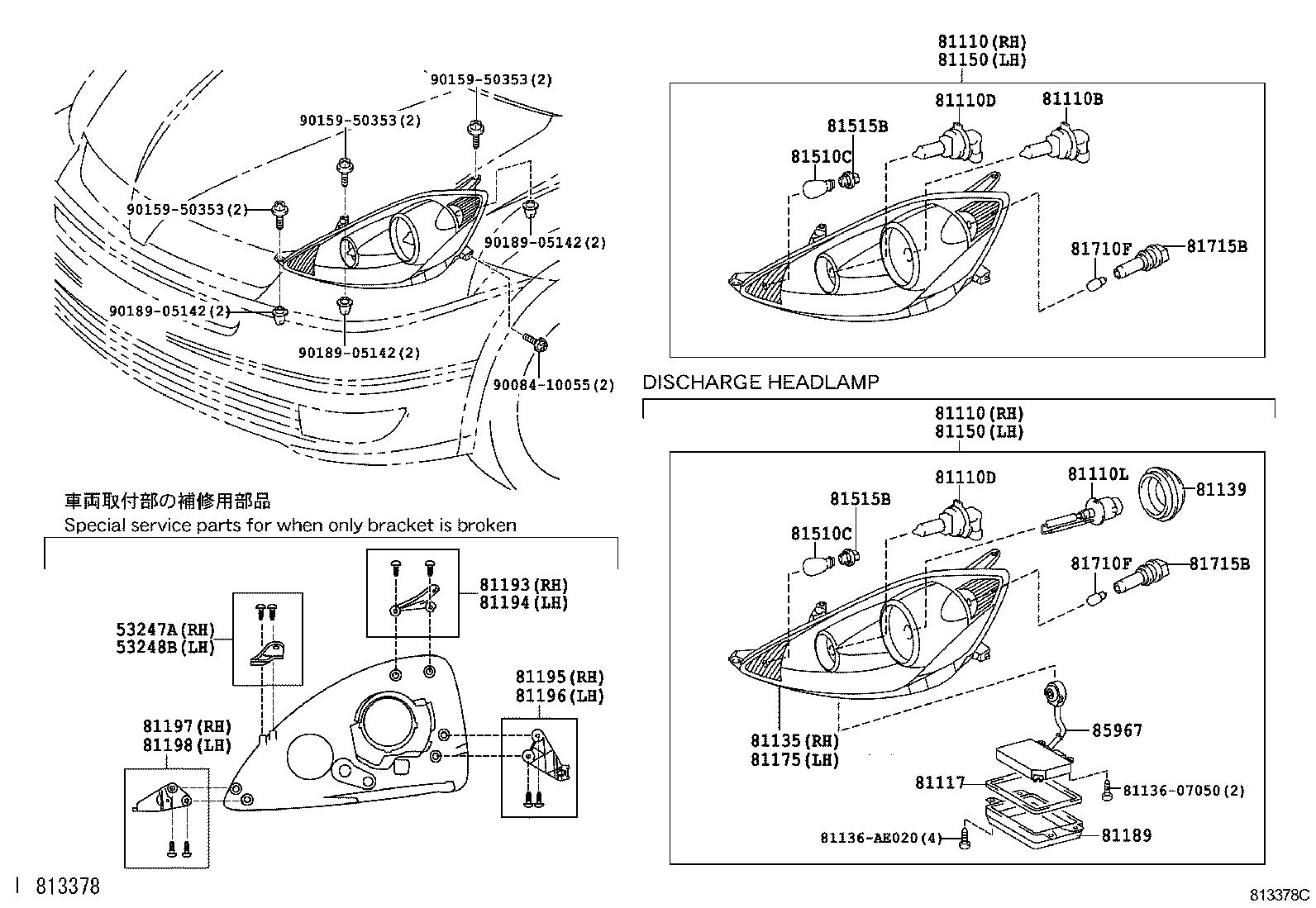

Click highlighted areas on diagram

diagram 53247A 53248B 81110 81110 81110B 81110D 81110D 81110L 81117 81135 8113607050 81136AE020 81139 81150 81150 81175 81189 81193 81194 81195 81196 81197 81198 81510C 81510C 81515B 81515B 81710F 81710F 81715B 81715B 85967 9008410055 9015950353 9015950353 9015950353 9018905142 9018905142 9018905142
Part # Description Qty Price
53247A - BRACKET, HEADLAMP MOUNTING, INNER RH
53247-AE010

MCL2#

 1
53248B - BRACKET, HEADLAMP MOUNTING, INNER LH
53248-AE010

MCL2#

 1
81110 - HEADLAMP ASSY, RH
81110-AE040

MCL20,25..XLE

HEADLAMP-DISCHARGE

 1
81110-AE020

MCL20,25..XLE

HEAD LAMP-DISCHARGE

 1
81110-AE030

MCL2#

 1
81110-AE010

MCL2#

 1
81110 - HEADLAMP ASSY, RH
81110-AE040

MCL20,25..XLE

HEADLAMP-DISCHARGE

 1
81110-AE020

MCL20,25..XLE

HEAD LAMP-DISCHARGE

 1
81110-AE030

MCL2#

 1
81110-AE010

MCL2#

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13047

MCL2#

12V 51W,HALOGEN

 2
90981-13047

MCL2#

12V 51W,HALOGEN

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90080-81041

MCL2#

12V 65W

 2
90080-81041

MCL2#

12V 65W

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90080-81041

MCL2#

12V 65W

 2
90080-81041

MCL2#

12V 65W

 2
81110L - BULB, DISCHARGE HEADLAMP
90981-20002

MCL20,25..XLE

85V 35W,HEADLAMP-DISCHARGE

 2
90981-20002

MCL20,25..XLE

85V 35W,HEAD LAMP-DISCHARGE

 2
81117 - PACKING, HEADLAMP HOUSING
81117-07050

MCL20,25..XLE

HEAD LAMP-DISCHARGE

 2
81117-07050

MCL20,25..XLE

HEADLAMP-DISCHARGE

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-AE020

MCL20,25..XLE

HEAD LAMP-DISCHARGE

 1
81145-AE040

MCL20,25..XLE

HEADLAMP-DISCHARGE

 1
81139 - COVER, HEADLAMP SOCKET
81139-AE020

MCL20,25..XLE

HEAD LAMP-DISCHARGE

 2
81139-AE020

MCL20,25..XLE

HEADLAMP-DISCHARGE

 2
81150 - HEADLAMP ASSY, LH
81150-AE040

MCL20,25..XLE

HEADLAMP-DISCHARGE

 1
81150-AE010

MCL2#

 1
81150-AE030

MCL2#

 1
81150-AE020

MCL20,25..XLE

HEAD LAMP-DISCHARGE

 1
81150 - HEADLAMP ASSY, LH
81150-AE040

MCL20,25..XLE

HEADLAMP-DISCHARGE

 1
81150-AE010

MCL2#

 1
81150-AE030

MCL2#

 1
81150-AE020

MCL20,25..XLE

HEAD LAMP-DISCHARGE

 1
81175 - UNIT ASSY, HEADLAMP, LH
81185-AE040

MCL20,25..XLE

HEADLAMP-DISCHARGE

 1
81170-AE020

MCL20,25..XLE

HEAD LAMP-DISCHARGE

 1
81189 - COVER, HEADLAMP
81189-07050

MCL20,25..XLE

HEADLAMP-DISCHARGE

 2
81189-07050

MCL20,25..XLE

HEAD LAMP-DISCHARGE

 2
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-AE010

MCL2#

 1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-AE010

MCL2#

 1
81195 - SCREW, HEADLAMP
81195-AE010

MCL2#

 1
81196 - RETAINER, HEADLAMP
81196-AE010

MCL2#

 1
81197 - BRACKET, HEADLAMP, LOWER RH
81197-AE010

MCL2#

 1
81198 - BRACKET, HEADLAMP, LWR LH
81198-AE010

MCL2#

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-AF002

MCL2#

12V 28/8W

 2
90981-AD005

MCL2#

12V 27/8W

 2
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-AF002

MCL2#

12V 28/8W

 2
90981-AD005

MCL2#

12V 27/8W

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90069-81003

MCL2#

 2
81515-AE010

MCL2#

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90069-81003

MCL2#

 2
81515-AE010

MCL2#

 2
81710F - BULB, FRONT SIDE MAKER LAMP
90981-WF008

MCL2#

 2
81710F - BULB, FRONT SIDE MAKER LAMP
90981-WF008

MCL2#

 2
81715B - SOCKET & WIRE, FRONT SIDE MARKER LAMP
81138-22680

MCL2#

 2
81715B - SOCKET & WIRE, FRONT SIDE MARKER LAMP
81138-22680

MCL2#

 2
85967 - COMPUTER, LIGHT CONTROL
85967-08010

MCL20,25..XLE

HEADLAMP-DISCHARGE

 2
85967-53020

MCL20,25..XLE

HEAD LAMP-DISCHARGE

 2
Common parts
81136-07050
81136-AE020
90084-10055
90159-50353
90189-05142
