MCL20L-PRAQKK (2005)
Toyota Sienna

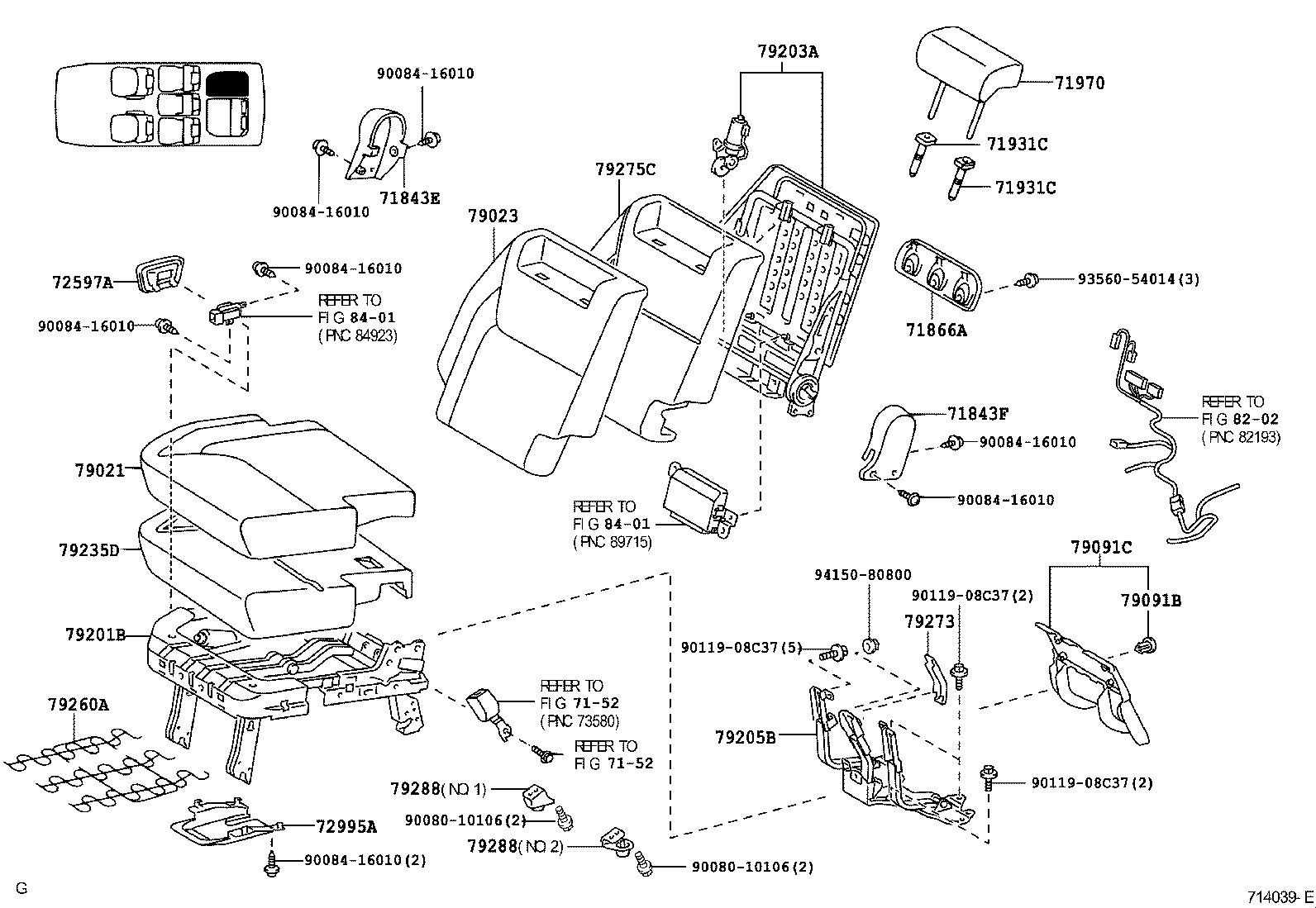

ILLUST NO. 3 OF 3(0509- )GSL20,MCL20..LE,XLE
REAR NO.2 SEAT-RH (POWER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71843E - COVER, REAR SEAT RECLINING, RH (FOR RH SEAT) | ||||
| 71843-08030B0 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),STONE,TRIM1# |
1 | ||
| 71843-08010E0 |
MCL20,25 FAWN,TRIM4# |
1 | ||
| 71843-08010E0 |
MCL20,25 FAWN,TRIM4# |
1 | ||
| 71843-08010B0 |
MCL20,25 STONE,TRIM1# |
1 | ||
| 71843-08030B0 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
1 | ||
| 71843-08030E0 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),FAWN,TRIM4# |
1 | ||
| 71843-08030E0 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
1 | ||
| 71843-08010B0 |
MCL20,25 STONE,TRIM1# |
1 | ||
| 71843F - COVER, REAR SEAT RECLINING, LH (FOR RH SEAT) | ||||
| 71844-08010B0 |
MCL20,25 STONE,TRIM1# |
1 | ||
| 71844-08010B0 |
MCL20,25 STONE,TRIM1# |
1 | ||
| 71844-08010E0 |
MCL20,25 FAWN,TRIM4# |
1 | ||
| 71844-08010E0 |
MCL20,25 FAWN,TRIM4# |
1 | ||
| 71866A - BEZEL, REAR SEAT COVER, NO.2 | ||||
| 71866-08020E0 |
MCL20,25 FAWN,TRIM4#,LH SEAT |
1 | ||
| 71866-08020B0 |
MCL20,25 STONE,TRIM1#,LH SEAT |
1 | ||
| 71866-08010B0 |
MCL20,25 STONE,TRIM1#,RH SEAT |
1 | ||
| 71866-08020B0 |
MCL20,25 STONE,TRIM1#,LH SEAT |
1 | ||
| 71866-08010B0 |
MCL20,25 STONE,TRIM1#,RH SEAT |
1 | ||
| 71866-08030B0 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),STONE,TRIM1#,RH SEAT |
1 | ||
| 71866-08010E0 |
MCL20,25 FAWN,TRIM4#,RH SEAT |
1 | ||
| 71866-08020E0 |
MCL20,25 FAWN,TRIM4#,LH SEAT |
1 | ||
| 71866-08010E0 |
MCL20,25 FAWN,TRIM4#,RH SEAT |
1 | ||
| 71866-08040B0 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),STONE,TRIM1#,LH SEAT |
1 | ||
| 71866-08030E0 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4#,RH SEAT |
1 | ||
| 71866-08030E0 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),FAWN,TRIM4#,RH SEAT |
1 | ||
| 71866-08030B0 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,STONE,TRIM1#,RH SEAT |
1 | ||
| 71866-08040E0 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),FAWN,TRIM4#,LH SEAT |
1 | ||
| 71866-08040B0 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,STONE,TRIM1#,LH SEAT |
1 | ||
| 71866-08040E0 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4#,LH SEAT |
1 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71931-47010B1 |
MCL20,25 W/O(LOCK),STONE,TRIM1# |
3 | ||
| 71931-47010E0 |
MCL20,25 W/O(LOCK),FAWN,TRIM4# |
3 | ||
| 71930-47010B1 |
MCL20,25 W(LOCK),STONE,TRIM1# |
3 | ||
| 71930-47010B1 |
MCL20,25..LE,XLE W(LOCK),STONE,TRIM1# |
2 | ||
| 71930-47010E0 |
MCL20,25 W(LOCK),FAWN,TRIM4# |
3 | ||
| 71930-47010B1 |
MCL20..LE..CND;MCL20..7S..XLE W(LOCK),SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
3 | ||
| 71930-47010B1 |
MCL25..LE,XLE;MCL20..XLE..USA;MCL20..(LE,XLE)..CND W(LOCK),SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
3 | ||
| 71930-47010E0 |
MCL20..LE..CND;MCL20..7S..XLE W(LOCK),SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
3 | ||
| 71930-47010E0 |
MCL20,25..LE,XLE W(LOCK),FAWN,TRIM4# |
2 | ||
| 71931-47010B1 |
MCL20,25..LE,XLE W/O(LOCK),STONE,TRIM1# |
2 | ||
| 71930-47010E0 |
MCL25..LE,XLE;MCL20..XLE..USA;MCL20..(LE,XLE)..CND W(LOCK),SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
3 | ||
| 71931-47010B1 |
MCL20..LE..CND;MCL20..7S..XLE W/O(LOCK),SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
3 | ||
| 71931-47010B1 |
MCL25..LE,XLE;MCL20..XLE..USA;MCL20..(LE,XLE)..CND W/O(LOCK),SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
3 | ||
| 71931-47010E0 |
MCL25..LE,XLE;MCL20..XLE..USA;MCL20..(LE,XLE)..CND W/O(LOCK),SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
3 | ||
| 71931-47010E0 |
MCL20,25..LE,XLE W/O(LOCK),FAWN,TRIM4# |
2 | ||
| 71931-47010E0 |
MCL20..LE..CND;MCL20..7S..XLE W/O(LOCK),SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
3 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71931-47010B1 |
MCL20,25 W/O(LOCK),STONE,TRIM1# |
3 | ||
| 71931-47010E0 |
MCL20,25 W/O(LOCK),FAWN,TRIM4# |
3 | ||
| 71930-47010B1 |
MCL20,25 W(LOCK),STONE,TRIM1# |
3 | ||
| 71930-47010B1 |
MCL20,25..LE,XLE W(LOCK),STONE,TRIM1# |
2 | ||
| 71930-47010E0 |
MCL20,25 W(LOCK),FAWN,TRIM4# |
3 | ||
| 71930-47010B1 |
MCL20..LE..CND;MCL20..7S..XLE W(LOCK),SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
3 | ||
| 71930-47010B1 |
MCL25..LE,XLE;MCL20..XLE..USA;MCL20..(LE,XLE)..CND W(LOCK),SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
3 | ||
| 71930-47010E0 |
MCL20..LE..CND;MCL20..7S..XLE W(LOCK),SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
3 | ||
| 71930-47010E0 |
MCL20,25..LE,XLE W(LOCK),FAWN,TRIM4# |
2 | ||
| 71931-47010B1 |
MCL20,25..LE,XLE W/O(LOCK),STONE,TRIM1# |
2 | ||
| 71930-47010E0 |
MCL25..LE,XLE;MCL20..XLE..USA;MCL20..(LE,XLE)..CND W(LOCK),SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
3 | ||
| 71931-47010B1 |
MCL20..LE..CND;MCL20..7S..XLE W/O(LOCK),SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
3 | ||
| 71931-47010B1 |
MCL25..LE,XLE;MCL20..XLE..USA;MCL20..(LE,XLE)..CND W/O(LOCK),SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
3 | ||
| 71931-47010E0 |
MCL25..LE,XLE;MCL20..XLE..USA;MCL20..(LE,XLE)..CND W/O(LOCK),SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
3 | ||
| 71931-47010E0 |
MCL20,25..LE,XLE W/O(LOCK),FAWN,TRIM4# |
2 | ||
| 71931-47010E0 |
MCL20..LE..CND;MCL20..7S..XLE W/O(LOCK),SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
3 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71970-08050B0 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
3 | ||
| 71970-08020B3 |
MCL20,25..XLE STONE,TRIM1# |
3 | ||
| 71970-08020B1 |
MCL20,25..LE STONE,TRIM1# |
3 | ||
| 71970-08020B1 |
MCL20,25..LE STONE,TRIM1# |
3 | ||
| 71970-08020E1 |
MCL20,25..LE FAWN,TRIM4# |
3 | ||
| 71970-08020B3 |
MCL20,25..XLE STONE,TRIM1# |
3 | ||
| 71970-08020E3 |
MCL20,25..XLE FAWN,TRIM4# |
3 | ||
| 71970-08040E0 |
MCL20,25..LE,XLE SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
3 | ||
| 71970-08020E3 |
MCL20,25..XLE FAWN,TRIM4# |
3 | ||
| 71970-08040B0 |
MCL20,25..LE,XLE SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
3 | ||
| 71970-08050B0 |
MCL25..LE,XLE;MCL20..XLE..USA;MCL20..(LE,XLE)..CND SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
3 | ||
| 71970-08020E1 |
MCL20,25..LE FAWN,TRIM4# |
3 | ||
| 71970-08050E0 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
3 | ||
| 71970-08100E0 |
MCL20,25..LE FAWN,TRIM4# |
3 | ||
| 71970-08100B0 |
MCL20,25..LE STONE,TRIM1# |
3 | ||
| 71970-08050E0 |
MCL25..LE,XLE;MCL20..XLE..USA;MCL20..(LE,XLE)..CND SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
3 | ||
| 71970-08100B1 |
MCL20,25..XLE STONE,TRIM1# |
3 | ||
| 71970-08100E1 |
MCL20,25..XLE FAWN,TRIM4# |
3 | ||
| 72597A - BEZEL, RECLINING REMOTE CONTROL LEVER, RH | ||||
| 72597-08010B0 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
1 | ||
| 72597-08010B0 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),STONE,TRIM1# |
1 | ||
| 72597-08010E0 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
1 | ||
| 72597-08010E0 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),FAWN,TRIM4# |
1 | ||
| 72995A - COVER, REAR SEAT | ||||
| 72995-08010 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER |
2 | ||
| 72995-08010 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD) |
1 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79021-08020E3 |
MCL20,25..LE FAWN,TRIM4# |
1 | ||
| 79021-08020B3 |
MCL20,25..LE STONE,TRIM1# |
1 | ||
| 79021-08040E1 |
MCL20,25..LE,XLE SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
1 | ||
| 79021-08040B1 |
MCL20,25..LE,XLE SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
1 | ||
| 79021-08030B2 |
MCL20,25..XLE STONE,TRIM1# |
1 | ||
| 79021-08030E2 |
MCL20,25..XLE FAWN,TRIM4# |
1 | ||
| 79021-08100E2 |
MCL20,25..LE FAWN,TRIM4# |
1 | ||
| 79021-08100B2 |
MCL20,25..LE STONE,TRIM1# |
1 | ||
| 79021-08110E2 |
MCL20,25..XLE FAWN,TRIM4# |
1 | ||
| 79021-08130E2 |
MCL20..LE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),FAWN,TRIM4# |
1 | ||
| 79021-08130B2 |
MCL20..LE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),STONE,TRIM1# |
1 | ||
| 79021-08120B2 |
MCL25..LE,XLE;MCL20..XLE..USA;MCL20..(LE,XLE)..CND SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
1 | ||
| 79021-08110B2 |
MCL20,25..XLE STONE,TRIM1# |
1 | ||
| 79021-08120E2 |
MCL25..LE,XLE;MCL20..XLE..USA;MCL20..(LE,XLE)..CND SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
1 | ||
| 79021-08150E2 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
1 | ||
| 79021-08150B2 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
1 | ||
| 79021-08200B0 |
MCL20,25..LE STONE,TRIM1# |
1 | ||
| 79021-08130B3 |
MCL20..LE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),STONE,TRIM1# |
1 | ||
| 79021-08130E3 |
MCL20..LE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),FAWN,TRIM4# |
1 | ||
| 79021-08210E0 |
MCL20..LE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),FAWN,TRIM4# |
1 | ||
| 79021-08220E0 |
MCL20,25..XLE FAWN,TRIM4# |
1 | ||
| 79021-08200E0 |
MCL20,25..LE FAWN,TRIM4# |
1 | ||
| 79021-08220B0 |
MCL20,25..XLE STONE,TRIM1# |
1 | ||
| 79021-08210B0 |
MCL20..LE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),STONE,TRIM1# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79023-08040B0 |
MCL20,25..LE,XLE SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
1 | ||
| 79023-08030B1 |
MCL20,25..XLE STONE,TRIM1# |
1 | ||
| 79023-08020E2 |
MCL20,25..LE FAWN,TRIM4# |
1 | ||
| 79023-08030E1 |
MCL20,25..XLE FAWN,TRIM4# |
1 | ||
| 79023-08100E2 |
MCL20,25..LE FAWN,TRIM4# |
1 | ||
| 79023-08020B2 |
MCL20,25..LE STONE,TRIM1# |
1 | ||
| 79023-08110E2 |
MCL20,25..XLE FAWN,TRIM4# |
1 | ||
| 79023-08100B2 |
MCL20,25..LE STONE,TRIM1# |
1 | ||
| 79023-08040E0 |
MCL20,25..LE,XLE SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
1 | ||
| 79023-08110B2 |
MCL20,25..XLE STONE,TRIM1# |
1 | ||
| 79023-08130B2 |
MCL20..LE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),STONE,TRIM1# |
1 | ||
| 79023-08120B2 |
MCL25..LE,XLE;MCL20..XLE..USA;MCL20..(LE,XLE)..CND SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
1 | ||
| 79023-08130E2 |
MCL20..LE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),FAWN,TRIM4# |
1 | ||
| 79023-08120E2 |
MCL25..LE,XLE;MCL20..XLE..USA;MCL20..(LE,XLE)..CND SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
1 | ||
| 79023-08150E2 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
1 | ||
| 79023-08150B2 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
1 | ||
| 79023-08200E0 |
MCL20,25..LE FAWN,TRIM4# |
1 | ||
| 79023-08200B0 |
MCL20,25..LE STONE,TRIM1# |
1 | ||
| 79023-08210B0 |
MCL20..LE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),STONE,TRIM1# |
1 | ||
| 79023-08130E3 |
MCL20..LE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),FAWN,TRIM4# |
1 | ||
| 79023-08220B0 |
MCL20,25..XLE STONE,TRIM1# |
1 | ||
| 79023-08220E0 |
MCL20,25..XLE FAWN,TRIM4# |
1 | ||
| 79023-08130B3 |
MCL20..LE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),STONE,TRIM1# |
1 | ||
| 79023-08210E0 |
MCL20..LE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),FAWN,TRIM4# |
1 | ||
| 79091B - CLIP, REAR SEAT LEG SIDE GARNISH | ||||
| 90467-10161 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER |
8 | ||
| 90467-10161 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD) |
8 | ||
| 79091C - GARNISH SUB-ASSY, REAR SEAT LEG SIDE, RH | ||||
| 79091-08020B0 |
MCL20,25 STONE,TRIM1# |
1 | ||
| 79091-08020B0 |
MCL20,25 STONE,TRIM1# |
1 | ||
| 79091-08020E0 |
MCL20,25 FAWN,TRIM4# |
1 | ||
| 79091-08030B0 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),STONE,TRIM1# |
1 | ||
| 79091-08020E0 |
MCL20,25 FAWN,TRIM4# |
1 | ||
| 79091-08030E0 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),FAWN,TRIM4# |
1 | ||
| 79091-08030B0 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
1 | ||
| 79091-08030E0 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
1 | ||
| 79201B - FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79201-08010 |
MCL20,25 |
2 | ||
| 79201-08010 |
MCL20,25 |
1 | ||
| 79201-08020 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD) |
1 | ||
| 79201-08020 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 79203A - FRAME SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79203-08010 |
MCL20,25 |
2 | ||
| 79203-08020 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD) |
1 | ||
| 79203-08020 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 79203-08010 |
MCL20,25 |
1 | ||
| 79205B - LEG SUB-ASSY, NO.2 SEAT, RH | ||||
| 79205-08010 |
MCL20,25 |
1 | ||
| 79205-08020 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD) |
1 | ||
| 79205-08010 |
MCL20,25 |
1 | ||
| 79205-08020 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 79235D - PAD, NO.2 SEAT CUSHION, RH | ||||
| 79235-08020 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 79235-08010 |
MCL20,25 |
1 | ||
| 79235-08010 |
MCL20,25 |
1 | ||
| 79235-08020 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD) |
1 | ||
| 79260A - SPRING ASSY, NO.2 SEAT CUSHION, RH | ||||
| 71055-08010 |
MCL20,25 |
1 | ||
| 71055-08010 |
MCL20,25..LE,XLE |
1 | ||
| 79273 - COVER, NO.2 SEAT HINGE | ||||
| 79273-08010B0 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
3 | ||
| 79273-08010B0 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),STONE,TRIM1# |
3 | ||
| 79273-08010E0 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
3 | ||
| 79273-08010E0 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),FAWN,TRIM4# |
3 | ||
| 79275C - PAD, NO.2 SEAT BACK, RH | ||||
| 79275-08010 |
MCL20,25 |
1 | ||
| 79275-08010 |
MCL20,25 |
2 | ||
| 79275-08020 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD) |
1 | ||
| 79275-08020 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 79288 - STOPPER, NO.2 SEAT CUSHION | ||||
| 79288-08010 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,NO.1 |
2 | ||
| 79288-08020 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,NO.2 |
2 | ||
| 79288-08010 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),NO.1 |
1 | ||
| 79288-08020 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),NO.2 |
1 | ||
| 79288 - STOPPER, NO.2 SEAT CUSHION | ||||
| 79288-08010 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,NO.1 |
2 | ||
| 79288-08020 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,NO.2 |
2 | ||
| 79288-08010 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),NO.1 |
1 | ||
| 79288-08020 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),NO.2 |
1 | ||
| Common parts | ||||
| 90080-10106 | ||||
| 90084-16010 | ||||
| 90119-08C37 | ||||
| 93560-54014 | ||||
| 94150-80800 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||

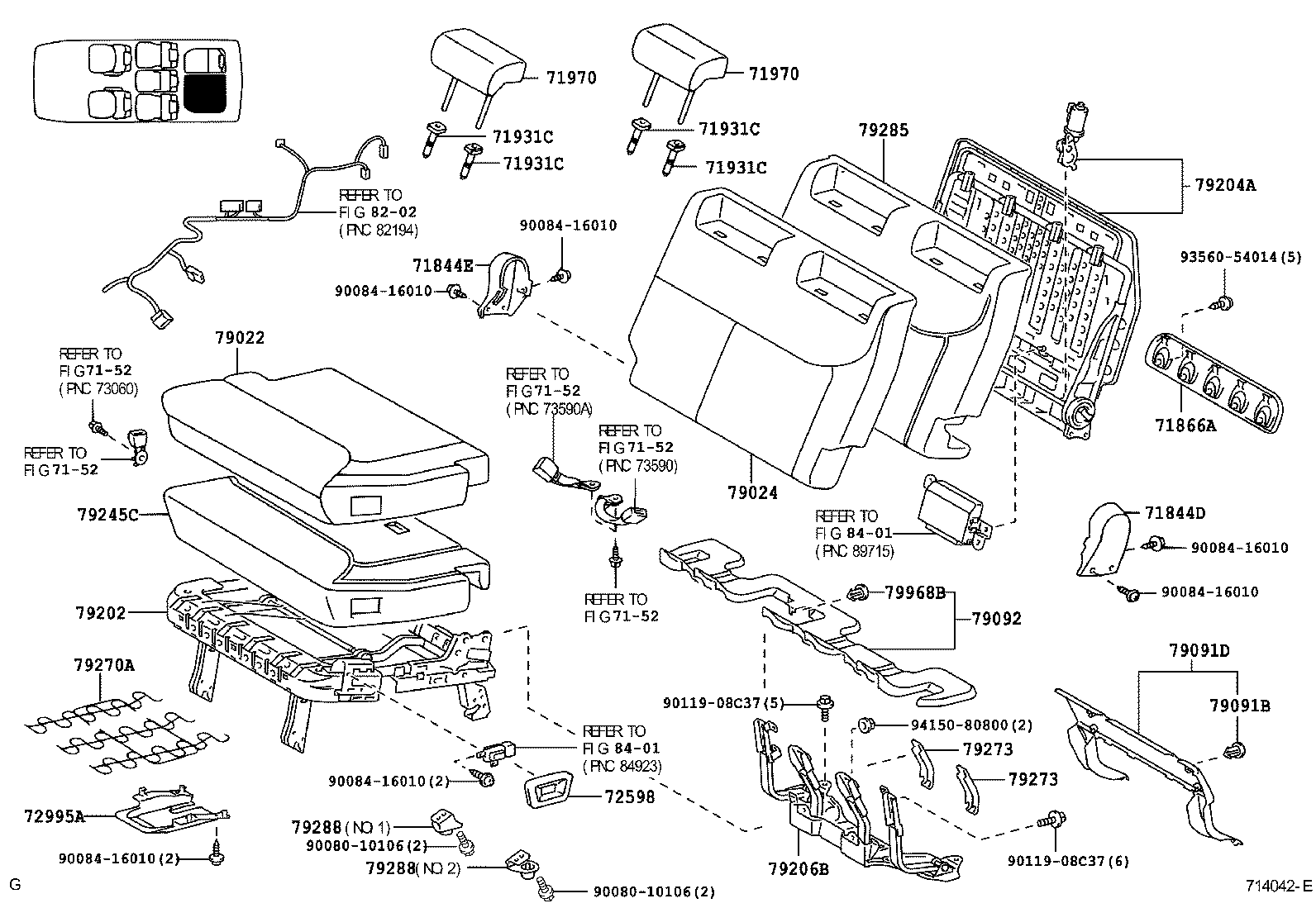

ILLUST NO. 3 OF 3(0509- )GSL20,MCL20..LE,XLE
REAR NO.2 SEAT-LH (POWER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71844D - COVER, REAR SEAT RECLINING, LH (FOR LH SEAT) | ||||
| 71844-08020E0 |
MCL20,25 FAWN,TRIM4# |
1 | ||
| 71844-08020B0 |
MCL20,25 STONE,TRIM1# |
1 | ||
| 71844-08030B0 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
1 | ||
| 71844-08020B0 |
MCL20,25 STONE,TRIM1# |
1 | ||
| 71844-08030B0 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),STONE,TRIM1# |
1 | ||
| 71844-08020E0 |
MCL20,25 FAWN,TRIM4# |
1 | ||
| 71844-08030E0 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
1 | ||
| 71844-08030E0 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),FAWN,TRIM4# |
1 | ||
| 71844E - COVER, REAR SEAT RECLINING, RH (FOR LH SEAT) | ||||
| 71843-08020B0 |
MCL20,25 STONE,TRIM1# |
1 | ||
| 71843-08020B0 |
MCL20,25 STONE,TRIM1# |
1 | ||
| 71843-08020E0 |
MCL20,25 FAWN,TRIM4# |
1 | ||
| 71843-08020E0 |
MCL20,25 FAWN,TRIM4# |
1 | ||
| 71866A - BEZEL, REAR SEAT COVER, NO.2 | ||||
| 71866-08020E0 |
MCL20,25 FAWN,TRIM4#,LH SEAT |
1 | ||
| 71866-08020B0 |
MCL20,25 STONE,TRIM1#,LH SEAT |
1 | ||
| 71866-08010B0 |
MCL20,25 STONE,TRIM1#,RH SEAT |
1 | ||
| 71866-08020B0 |
MCL20,25 STONE,TRIM1#,LH SEAT |
1 | ||
| 71866-08010B0 |
MCL20,25 STONE,TRIM1#,RH SEAT |
1 | ||
| 71866-08030B0 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),STONE,TRIM1#,RH SEAT |
1 | ||
| 71866-08010E0 |
MCL20,25 FAWN,TRIM4#,RH SEAT |
1 | ||
| 71866-08020E0 |
MCL20,25 FAWN,TRIM4#,LH SEAT |
1 | ||
| 71866-08010E0 |
MCL20,25 FAWN,TRIM4#,RH SEAT |
1 | ||
| 71866-08040B0 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),STONE,TRIM1#,LH SEAT |
1 | ||
| 71866-08030E0 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4#,RH SEAT |
1 | ||
| 71866-08030E0 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),FAWN,TRIM4#,RH SEAT |
1 | ||
| 71866-08030B0 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,STONE,TRIM1#,RH SEAT |
1 | ||
| 71866-08040E0 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),FAWN,TRIM4#,LH SEAT |
1 | ||
| 71866-08040B0 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,STONE,TRIM1#,LH SEAT |
1 | ||
| 71866-08040E0 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4#,LH SEAT |
1 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71931-47010B1 |
MCL20,25 W/O(LOCK),STONE,TRIM1# |
3 | ||
| 71931-47010E0 |
MCL20,25 W/O(LOCK),FAWN,TRIM4# |
3 | ||
| 71930-47010B1 |
MCL20,25 W(LOCK),STONE,TRIM1# |
3 | ||
| 71930-47010B1 |
MCL20,25..LE,XLE W(LOCK),STONE,TRIM1# |
2 | ||
| 71930-47010E0 |
MCL20,25 W(LOCK),FAWN,TRIM4# |
3 | ||
| 71930-47010B1 |
MCL20..LE..CND;MCL20..7S..XLE W(LOCK),SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
3 | ||
| 71930-47010B1 |
MCL25..LE,XLE;MCL20..XLE..USA;MCL20..(LE,XLE)..CND W(LOCK),SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
3 | ||
| 71930-47010E0 |
MCL20..LE..CND;MCL20..7S..XLE W(LOCK),SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
3 | ||
| 71930-47010E0 |
MCL20,25..LE,XLE W(LOCK),FAWN,TRIM4# |
2 | ||
| 71931-47010B1 |
MCL20,25..LE,XLE W/O(LOCK),STONE,TRIM1# |
2 | ||
| 71930-47010E0 |
MCL25..LE,XLE;MCL20..XLE..USA;MCL20..(LE,XLE)..CND W(LOCK),SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
3 | ||
| 71931-47010B1 |
MCL20..LE..CND;MCL20..7S..XLE W/O(LOCK),SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
3 | ||
| 71931-47010B1 |
MCL25..LE,XLE;MCL20..XLE..USA;MCL20..(LE,XLE)..CND W/O(LOCK),SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
3 | ||
| 71931-47010E0 |
MCL25..LE,XLE;MCL20..XLE..USA;MCL20..(LE,XLE)..CND W/O(LOCK),SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
3 | ||
| 71931-47010E0 |
MCL20,25..LE,XLE W/O(LOCK),FAWN,TRIM4# |
2 | ||
| 71931-47010E0 |
MCL20..LE..CND;MCL20..7S..XLE W/O(LOCK),SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
3 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71931-47010B1 |
MCL20,25 W/O(LOCK),STONE,TRIM1# |
3 | ||
| 71931-47010E0 |
MCL20,25 W/O(LOCK),FAWN,TRIM4# |
3 | ||
| 71930-47010B1 |
MCL20,25 W(LOCK),STONE,TRIM1# |
3 | ||
| 71930-47010B1 |
MCL20,25..LE,XLE W(LOCK),STONE,TRIM1# |
2 | ||
| 71930-47010E0 |
MCL20,25 W(LOCK),FAWN,TRIM4# |
3 | ||
| 71930-47010B1 |
MCL20..LE..CND;MCL20..7S..XLE W(LOCK),SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
3 | ||
| 71930-47010B1 |
MCL25..LE,XLE;MCL20..XLE..USA;MCL20..(LE,XLE)..CND W(LOCK),SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
3 | ||
| 71930-47010E0 |
MCL20..LE..CND;MCL20..7S..XLE W(LOCK),SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
3 | ||
| 71930-47010E0 |
MCL20,25..LE,XLE W(LOCK),FAWN,TRIM4# |
2 | ||
| 71931-47010B1 |
MCL20,25..LE,XLE W/O(LOCK),STONE,TRIM1# |
2 | ||
| 71930-47010E0 |
MCL25..LE,XLE;MCL20..XLE..USA;MCL20..(LE,XLE)..CND W(LOCK),SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
3 | ||
| 71931-47010B1 |
MCL20..LE..CND;MCL20..7S..XLE W/O(LOCK),SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
3 | ||
| 71931-47010B1 |
MCL25..LE,XLE;MCL20..XLE..USA;MCL20..(LE,XLE)..CND W/O(LOCK),SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
3 | ||
| 71931-47010E0 |
MCL25..LE,XLE;MCL20..XLE..USA;MCL20..(LE,XLE)..CND W/O(LOCK),SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
3 | ||
| 71931-47010E0 |
MCL20,25..LE,XLE W/O(LOCK),FAWN,TRIM4# |
2 | ||
| 71931-47010E0 |
MCL20..LE..CND;MCL20..7S..XLE W/O(LOCK),SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
3 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71931-47010B1 |
MCL20,25 W/O(LOCK),STONE,TRIM1# |
3 | ||
| 71931-47010E0 |
MCL20,25 W/O(LOCK),FAWN,TRIM4# |
3 | ||
| 71930-47010B1 |
MCL20,25 W(LOCK),STONE,TRIM1# |
3 | ||
| 71930-47010B1 |
MCL20,25..LE,XLE W(LOCK),STONE,TRIM1# |
2 | ||
| 71930-47010E0 |
MCL20,25 W(LOCK),FAWN,TRIM4# |
3 | ||
| 71930-47010B1 |
MCL20..LE..CND;MCL20..7S..XLE W(LOCK),SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
3 | ||
| 71930-47010B1 |
MCL25..LE,XLE;MCL20..XLE..USA;MCL20..(LE,XLE)..CND W(LOCK),SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
3 | ||
| 71930-47010E0 |
MCL20..LE..CND;MCL20..7S..XLE W(LOCK),SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
3 | ||
| 71930-47010E0 |
MCL20,25..LE,XLE W(LOCK),FAWN,TRIM4# |
2 | ||
| 71931-47010B1 |
MCL20,25..LE,XLE W/O(LOCK),STONE,TRIM1# |
2 | ||
| 71930-47010E0 |
MCL25..LE,XLE;MCL20..XLE..USA;MCL20..(LE,XLE)..CND W(LOCK),SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
3 | ||
| 71931-47010B1 |
MCL20..LE..CND;MCL20..7S..XLE W/O(LOCK),SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
3 | ||
| 71931-47010B1 |
MCL25..LE,XLE;MCL20..XLE..USA;MCL20..(LE,XLE)..CND W/O(LOCK),SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
3 | ||
| 71931-47010E0 |
MCL25..LE,XLE;MCL20..XLE..USA;MCL20..(LE,XLE)..CND W/O(LOCK),SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
3 | ||
| 71931-47010E0 |
MCL20,25..LE,XLE W/O(LOCK),FAWN,TRIM4# |
2 | ||
| 71931-47010E0 |
MCL20..LE..CND;MCL20..7S..XLE W/O(LOCK),SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
3 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71931-47010B1 |
MCL20,25 W/O(LOCK),STONE,TRIM1# |
3 | ||
| 71931-47010E0 |
MCL20,25 W/O(LOCK),FAWN,TRIM4# |
3 | ||
| 71930-47010B1 |
MCL20,25 W(LOCK),STONE,TRIM1# |
3 | ||
| 71930-47010B1 |
MCL20,25..LE,XLE W(LOCK),STONE,TRIM1# |
2 | ||
| 71930-47010E0 |
MCL20,25 W(LOCK),FAWN,TRIM4# |
3 | ||
| 71930-47010B1 |
MCL20..LE..CND;MCL20..7S..XLE W(LOCK),SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
3 | ||
| 71930-47010B1 |
MCL25..LE,XLE;MCL20..XLE..USA;MCL20..(LE,XLE)..CND W(LOCK),SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
3 | ||
| 71930-47010E0 |
MCL20..LE..CND;MCL20..7S..XLE W(LOCK),SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
3 | ||
| 71930-47010E0 |
MCL20,25..LE,XLE W(LOCK),FAWN,TRIM4# |
2 | ||
| 71931-47010B1 |
MCL20,25..LE,XLE W/O(LOCK),STONE,TRIM1# |
2 | ||
| 71930-47010E0 |
MCL25..LE,XLE;MCL20..XLE..USA;MCL20..(LE,XLE)..CND W(LOCK),SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
3 | ||
| 71931-47010B1 |
MCL20..LE..CND;MCL20..7S..XLE W/O(LOCK),SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
3 | ||
| 71931-47010B1 |
MCL25..LE,XLE;MCL20..XLE..USA;MCL20..(LE,XLE)..CND W/O(LOCK),SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
3 | ||
| 71931-47010E0 |
MCL25..LE,XLE;MCL20..XLE..USA;MCL20..(LE,XLE)..CND W/O(LOCK),SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
3 | ||
| 71931-47010E0 |
MCL20,25..LE,XLE W/O(LOCK),FAWN,TRIM4# |
2 | ||
| 71931-47010E0 |
MCL20..LE..CND;MCL20..7S..XLE W/O(LOCK),SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
3 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71970-08020B3 |
MCL20,25..XLE STONE,TRIM1# |
3 | ||
| 71970-08020B1 |
MCL20,25..LE STONE,TRIM1# |
3 | ||
| 71970-08020B1 |
MCL20,25..LE STONE,TRIM1# |
3 | ||
| 71970-08020E1 |
MCL20,25..LE FAWN,TRIM4# |
3 | ||
| 71970-08020B3 |
MCL20,25..XLE STONE,TRIM1# |
3 | ||
| 71970-08020E3 |
MCL20,25..XLE FAWN,TRIM4# |
3 | ||
| 71970-08040E0 |
MCL20,25..LE,XLE SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
3 | ||
| 71970-08020E3 |
MCL20,25..XLE FAWN,TRIM4# |
3 | ||
| 71970-08040B0 |
MCL20,25..LE,XLE SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
3 | ||
| 71970-08050B0 |
MCL25..LE,XLE;MCL20..XLE..USA;MCL20..(LE,XLE)..CND SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
3 | ||
| 71970-08050B0 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
3 | ||
| 71970-08020E1 |
MCL20,25..LE FAWN,TRIM4# |
3 | ||
| 71970-08050E0 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
3 | ||
| 71970-08100E0 |
MCL20,25..LE FAWN,TRIM4# |
3 | ||
| 71970-08100B0 |
MCL20,25..LE STONE,TRIM1# |
3 | ||
| 71970-08050E0 |
MCL25..LE,XLE;MCL20..XLE..USA;MCL20..(LE,XLE)..CND SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
3 | ||
| 71970-08100B1 |
MCL20,25..XLE STONE,TRIM1# |
3 | ||
| 71970-08100E1 |
MCL20,25..XLE FAWN,TRIM4# |
3 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71970-08020B3 |
MCL20,25..XLE STONE,TRIM1# |
3 | ||
| 71970-08020B1 |
MCL20,25..LE STONE,TRIM1# |
3 | ||
| 71970-08020B1 |
MCL20,25..LE STONE,TRIM1# |
3 | ||
| 71970-08020E1 |
MCL20,25..LE FAWN,TRIM4# |
3 | ||
| 71970-08020B3 |
MCL20,25..XLE STONE,TRIM1# |
3 | ||
| 71970-08020E3 |
MCL20,25..XLE FAWN,TRIM4# |
3 | ||
| 71970-08040E0 |
MCL20,25..LE,XLE SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
3 | ||
| 71970-08020E3 |
MCL20,25..XLE FAWN,TRIM4# |
3 | ||
| 71970-08040B0 |
MCL20,25..LE,XLE SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
3 | ||
| 71970-08050B0 |
MCL25..LE,XLE;MCL20..XLE..USA;MCL20..(LE,XLE)..CND SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
3 | ||
| 71970-08050B0 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
3 | ||
| 71970-08020E1 |
MCL20,25..LE FAWN,TRIM4# |
3 | ||
| 71970-08050E0 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
3 | ||
| 71970-08100E0 |
MCL20,25..LE FAWN,TRIM4# |
3 | ||
| 71970-08100B0 |
MCL20,25..LE STONE,TRIM1# |
3 | ||
| 71970-08050E0 |
MCL25..LE,XLE;MCL20..XLE..USA;MCL20..(LE,XLE)..CND SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
3 | ||
| 71970-08100B1 |
MCL20,25..XLE STONE,TRIM1# |
3 | ||
| 71970-08100E1 |
MCL20,25..XLE FAWN,TRIM4# |
3 | ||
| 72598 - BEZEL, RECLINING REMOTE CONTROL LEVER, LH | ||||
| 72598-08010B0 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),STONE,TRIM1# |
1 | ||
| 72598-08010E0 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
1 | ||
| 72598-08010E0 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),FAWN,TRIM4# |
1 | ||
| 72598-08010B0 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
1 | ||
| 72995A - COVER, REAR SEAT | ||||
| 72995-08010 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER |
2 | ||
| 72995-08010 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD) |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79022-08020B3 |
MCL20,25..LE STONE,TRIM1# |
1 | ||
| 79022-08020E3 |
MCL20,25..LE FAWN,TRIM4# |
1 | ||
| 79022-08040B1 |
MCL20,25..LE,XLE SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
1 | ||
| 79022-08040E1 |
MCL20,25..LE,XLE SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
1 | ||
| 79022-08030B2 |
MCL20,25..XLE STONE,TRIM1# |
1 | ||
| 79022-08030E2 |
MCL20,25..XLE FAWN,TRIM4# |
1 | ||
| 79022-08100B2 |
MCL20,25..LE STONE,TRIM1# |
1 | ||
| 79022-08110B2 |
MCL20,25..XLE STONE,TRIM1# |
1 | ||
| 79022-08110E2 |
MCL20,25..XLE FAWN,TRIM4# |
1 | ||
| 79022-08100E2 |
MCL20,25..LE FAWN,TRIM4# |
1 | ||
| 79022-08130E2 |
MCL20..LE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),FAWN,TRIM4# |
1 | ||
| 79022-08130B2 |
MCL20..LE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),STONE,TRIM1# |
1 | ||
| 79022-08120E2 |
MCL25..LE,XLE;MCL20..XLE..USA;MCL20..(LE,XLE)..CND SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
1 | ||
| 79022-08120B2 |
MCL25..LE,XLE;MCL20..XLE..USA;MCL20..(LE,XLE)..CND SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
1 | ||
| 79022-08130E3 |
MCL20..LE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),FAWN,TRIM4# |
1 | ||
| 79022-08130B3 |
MCL20..LE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),STONE,TRIM1# |
1 | ||
| 79022-08150B2 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
1 | ||
| 79022-08200E0 |
MCL20,25..LE FAWN,TRIM4# |
1 | ||
| 79022-08150E2 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
1 | ||
| 79022-08220B0 |
MCL20,25..XLE STONE,TRIM1# |
1 | ||
| 79022-08220E0 |
MCL20,25..XLE FAWN,TRIM4# |
1 | ||
| 79022-08210E0 |
MCL20..LE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),FAWN,TRIM4# |
1 | ||
| 79022-08210B0 |
MCL20..LE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),STONE,TRIM1# |
1 | ||
| 79022-08200B0 |
MCL20,25..LE STONE,TRIM1# |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79024-08030E1 |
MCL20,25..XLE FAWN,TRIM4# |
1 | ||
| 79024-08030B1 |
MCL20,25..XLE STONE,TRIM1# |
1 | ||
| 79024-08040B0 |
MCL20,25..LE,XLE SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
1 | ||
| 79024-08020E2 |
MCL20,25..LE FAWN,TRIM4# |
1 | ||
| 79024-08040E0 |
MCL20,25..LE,XLE SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
1 | ||
| 79024-08020B2 |
MCL20,25..LE STONE,TRIM1# |
1 | ||
| 79024-08160B2 |
MCL20,25..LE STONE,TRIM1# |
1 | ||
| 79024-08220B2 |
MCL20..LE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),STONE,TRIM1# |
1 | ||
| 79024-08220E2 |
MCL20..LE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),FAWN,TRIM4# |
1 | ||
| 79024-08170E2 |
MCL20,25..XLE FAWN,TRIM4# |
1 | ||
| 79024-08170B2 |
MCL20,25..XLE STONE,TRIM1# |
1 | ||
| 79024-08180E2 |
MCL25..LE,XLE;MCL20..XLE..USA;MCL20..(LE,XLE)..CND SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
1 | ||
| 79024-08180B2 |
MCL25..LE,XLE;MCL20..XLE..USA;MCL20..(LE,XLE)..CND SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
1 | ||
| 79024-08160E2 |
MCL20,25..LE FAWN,TRIM4# |
1 | ||
| 79024-08240E2 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
1 | ||
| 79024-08220E3 |
MCL20..LE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),FAWN,TRIM4# |
1 | ||
| 79024-08220B3 |
MCL20..LE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),STONE,TRIM1# |
1 | ||
| 79024-08370B0 |
MCL20,25..LE STONE,TRIM1# |
1 | ||
| 79024-08390E0 |
MCL20..LE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),FAWN,TRIM4# |
1 | ||
| 79024-08240B2 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
1 | ||
| 79024-08390B0 |
MCL20..LE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),STONE,TRIM1# |
1 | ||
| 79024-08400B0 |
MCL20,25..XLE STONE,TRIM1# |
1 | ||
| 79024-08400E0 |
MCL20,25..XLE FAWN,TRIM4# |
1 | ||
| 79024-08370E0 |
MCL20,25..LE FAWN,TRIM4# |
1 | ||
| 79091B - CLIP, REAR SEAT LEG SIDE GARNISH | ||||
| 90467-10161 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER |
8 | ||
| 90467-10161 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD) |
8 | ||
| 79091D - GARNISH SUB-ASSY, REAR SEAT LEG SIDE, LH | ||||
| 79091-08010E0 |
MCL20,25 FAWN,TRIM4# |
1 | ||
| 79091-08010E0 |
MCL20,25 FAWN,TRIM4# |
1 | ||
| 79091-08040B0 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),STONE,TRIM1# |
1 | ||
| 79091-08040B0 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
1 | ||
| 79091-08040E0 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),FAWN,TRIM4# |
1 | ||
| 79091-08040E0 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
1 | ||
| 79091-08010B0 |
MCL20,25 STONE,TRIM1# |
1 | ||
| 79091-08010B0 |
MCL20,25 STONE,TRIM1# |
1 | ||
| 79092 - GARNISH SUB-ASSY, REAR SEAT LEG SIDE, NO.2 | ||||
| 79092-08030B0 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
1 | ||
| 79092-08030B0 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),STONE,TRIM1# |
1 | ||
| 79092-08030E0 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),FAWN,TRIM4# |
1 | ||
| 79092-08030E0 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
1 | ||
| 79202 - FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79202-08010 |
MCL20,25 |
1 | ||
| 79202-08010 |
MCL20,25 |
2 | ||
| 79202-08020 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD) |
1 | ||
| 79202-08020 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 79204A - FRAME SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79204-08010 |
MCL20,25 |
2 | ||
| 79204-08010 |
MCL20,25 |
1 | ||
| 79204-08020 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 79204-08020 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD) |
1 | ||
| 79206B - LEG SUB-ASSY, NO.2 SEAT, LH | ||||
| 79206-08010 |
MCL20,25 |
1 | ||
| 79206-08020 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 79206-08010 |
MCL20,25 |
1 | ||
| 79206-08020 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD) |
1 | ||
| 79245C - PAD, NO.2 SEAT CUSHION, LH | ||||
| 79245-08010 |
MCL20,25 |
1 | ||
| 79245-08020 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD) |
1 | ||
| 79245-08020 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 79245-08010 |
MCL20,25 |
1 | ||
| 79270A - SPRING ASSY, NO.2 SEAT CUSHION, LH | ||||
| 71056-08010 |
MCL20,25 |
2 | ||
| 71056-08010 |
MCL20,25 |
1 | ||
| 79273 - COVER, NO.2 SEAT HINGE | ||||
| 79273-08010B0 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
3 | ||
| 79273-08010B0 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),STONE,TRIM1# |
3 | ||
| 79273-08010E0 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
3 | ||
| 79273-08010E0 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),FAWN,TRIM4# |
3 | ||
| 79273 - COVER, NO.2 SEAT HINGE | ||||
| 79273-08010B0 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,STONE,TRIM1# |
3 | ||
| 79273-08010B0 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),STONE,TRIM1# |
3 | ||
| 79273-08010E0 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,FAWN,TRIM4# |
3 | ||
| 79273-08010E0 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),FAWN,TRIM4# |
3 | ||
| 79285 - PAD, NO.2 SEAT BACK, LH | ||||
| 79285-08010 |
MCL20,25 |
1 | ||
| 79285-08020 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD) |
1 | ||
| 79285-08010 |
MCL20,25 |
1 | ||
| 79285-08020 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 79288 - STOPPER, NO.2 SEAT CUSHION | ||||
| 79288-08010 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,NO.1 |
2 | ||
| 79288-08020 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,NO.2 |
2 | ||
| 79288-08010 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),NO.1 |
1 | ||
| 79288-08020 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),NO.2 |
1 | ||
| 79288 - STOPPER, NO.2 SEAT CUSHION | ||||
| 79288-08010 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,NO.1 |
2 | ||
| 79288-08020 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER,NO.2 |
2 | ||
| 79288-08010 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),NO.1 |
1 | ||
| 79288-08020 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),NO.2 |
1 | ||
| 79968B - CLIP | ||||
| 75868-06020 |
MCL20..LE;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD) |
9 | ||
| 75868-06020 |
MCL20..LE..CND;MCL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&SEAT COVER MATERIAL-LEATHER |
9 | ||
| Common parts | ||||
| 90084-16010 | ||||
| 90119-08C37 | ||||
| 93560-54014 | ||||
| 94150-80800 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
