MCL20L-PRAQKK (2005)

Toyota Sienna

Production Sep 2005 - Dec 2006
Engine 3MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0509- )

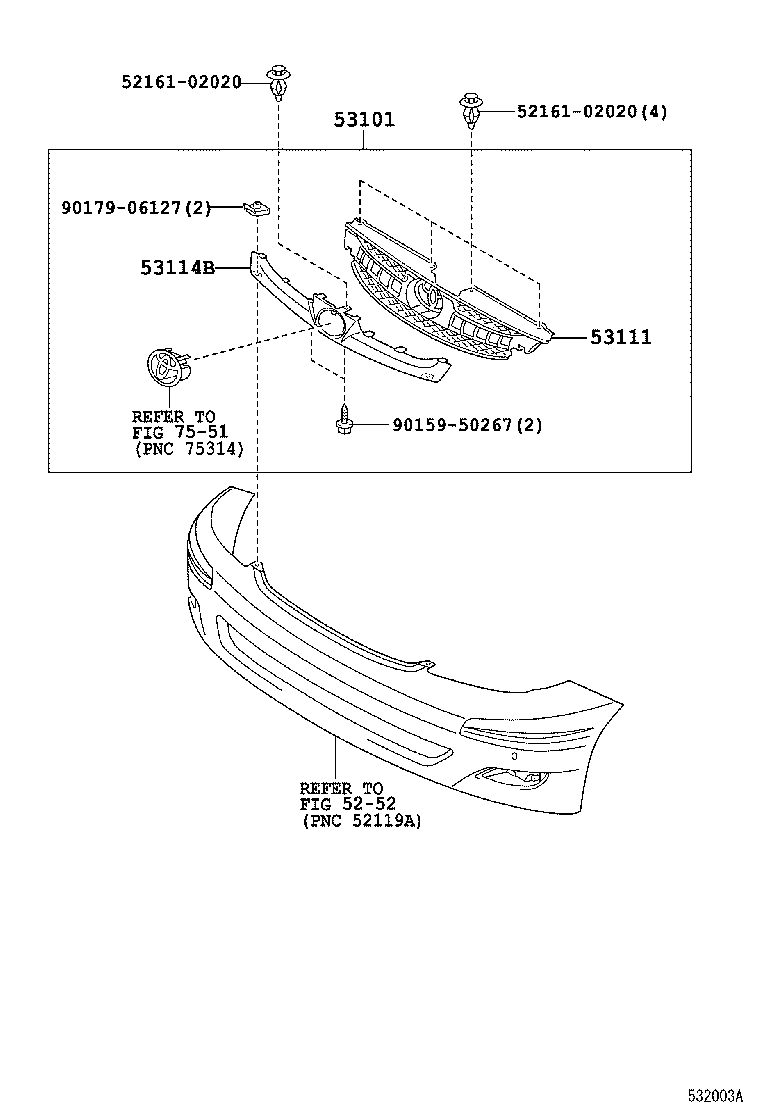

Click highlighted areas on diagram

diagram 5216102020 5216102020 5252 53101 53111 53114B 7551 9015950267 9017906127
Part # Description Qty Price
53101 - GRILLE SUB-ASSY, RADIATOR
53101-08050A0

MCL2#

WHITE,056

 1
53101-08050A1

MCL2#

WHITE PEARL CS.,071

 1
53101-08050G0

MCL2#

LT.GREEN ME.,6U0

 1
53101-08050D0

MCL2#

DK. RED M.M.,3Q3

 1
53101-08050E0

MCL2#

BEIGE M. M.,4Q2

 1
53101-08060

MCL20,25..XLE

PLATED,CRUISE CONTROL-RADAR CRUISE CONTROL

 1
53101-08060

MCL20,25..XLE

PLATED,CRUISE CONTROL-RADAR CRUISE CONTROL&CLEARANCE & BACK SONAR-WITH(4-CORNER &BACK)

 1
53101-08050J0

MCL2#

BLUE ME.,8R5

 1
53101-08050B1

MCL2#

GRAY ME.,1F9

 1
53101-08050B0

MCL2#

SILVER M.M.,1D7

 1
53101-08050J1

MCL2#

DK.BLUE MC.,8S6

 1
53111 - GRILLE, RADIATOR
53111-AE020

MCL20,25..XLE

NO PAINT REQ.,LIMITED PACKAGE&CRUISE CONTROL-RADAR CRUISE CONTROL&CLEARANCE & BACK SONER-4-CORNER & BACK

 1
53111-AE020

MCL20,25..XLE

NO PAINT REQ.,LIMITED PACKAGE&CRUISE CONTROL-RADAR CRUISE CONTROL

 1
53111-AE030

MCL2#

NO PAINT REQ.

 1
53111-AE010

MCL2#

NO PAINT REQ.

 1
53114B - GRILLE, RADIATOR, UPPER
53114-AE010A0

MCL2#

WHITE,056

 1
53114-AE010B1

MCL2#

GRAY ME.,1F9

 1
53114-AE010A1

MCL2#

WHITE PEARL CS.,071

 1
53114-AE010E0

MCL2#

BEIGE M. M.,4Q2

 1
53114-AE020

MCL20,25..XLE

CRUISE CONTROL-RADAR CRUISE CONTROL

 1
53114-AE010D0

MCL2#

DK. RED M.M.,3Q3

 1
53114-AE010B0

MCL2#

SILVER M.M.,1D7

 1
53114-AE010J1

MCL2#

DK.BLUE MC.,8S6

 1
53114-AE010G0

MCL2#

LT.GREEN ME.,6U0

 1
53114-AE010J0

MCL2#

BLUE ME.,8R5

 1
53114-AE020

MCL20,25..XLE

CRUISE CONTROL-RADAR CRUISE CONTROL&CLEARANCE & BACK SONAR-WITH(4-CORNER & BACK)

 1
Common parts
52161-02020
90159-50267
90179-06127
Linked diagrams
5252
7551
