MCL20L-PRAQKK (2005)

Toyota Sienna

Production Sep 2005 - Dec 2006
Engine 3MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

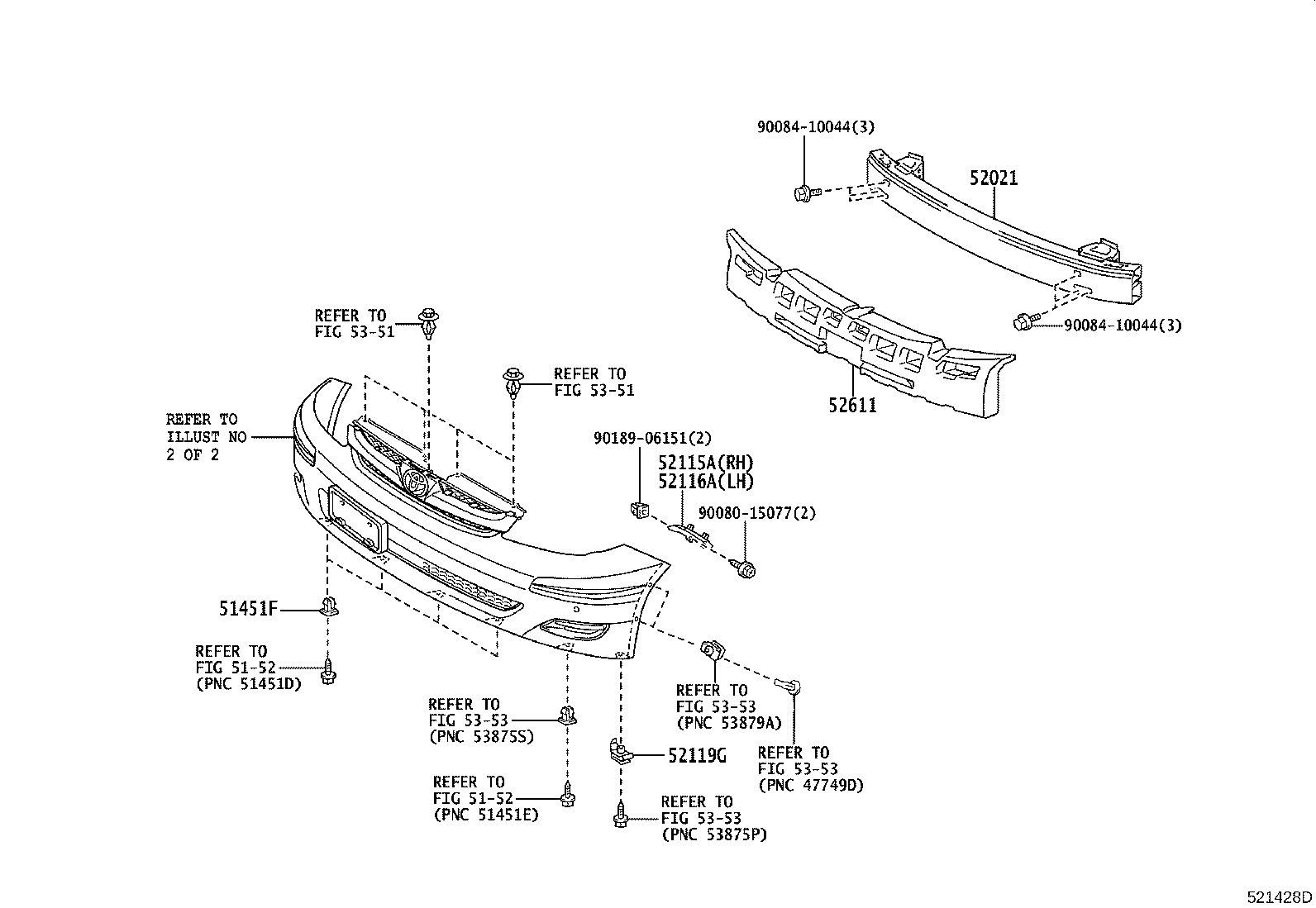

ILLUST NO. 1 OF 2(0509- )

Click highlighted areas on diagram

diagram 51451F 5152 5152 52021 52115A 52116A 52119G 52611 5351 5351 5353 5353 5353 5353 9008015077 9008410044 9008410044 9018906151
Part # Description Qty Price
51451F - GROMMET, NO.1
90189-06193

MCL2#

 4
90189-06193

MCL2#

 4
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-AE010

MCL2#

 1
52021-AE010

MCL2#

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-AE010

MCL2#

 1
52115-AE010

MCL2#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-AE010

MCL2#

 1
52116-AE010

MCL2#

 1
52119G - CLIP, NO.1
90467-05114

MCL2#

 2
90467-05114

MCL2#

 2
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-AE010

MCL2#

 1
52611-AE020

MCL2#

 1
Common parts
90080-15077
90084-10044
90189-06151
Linked diagrams
5152
5351
5353

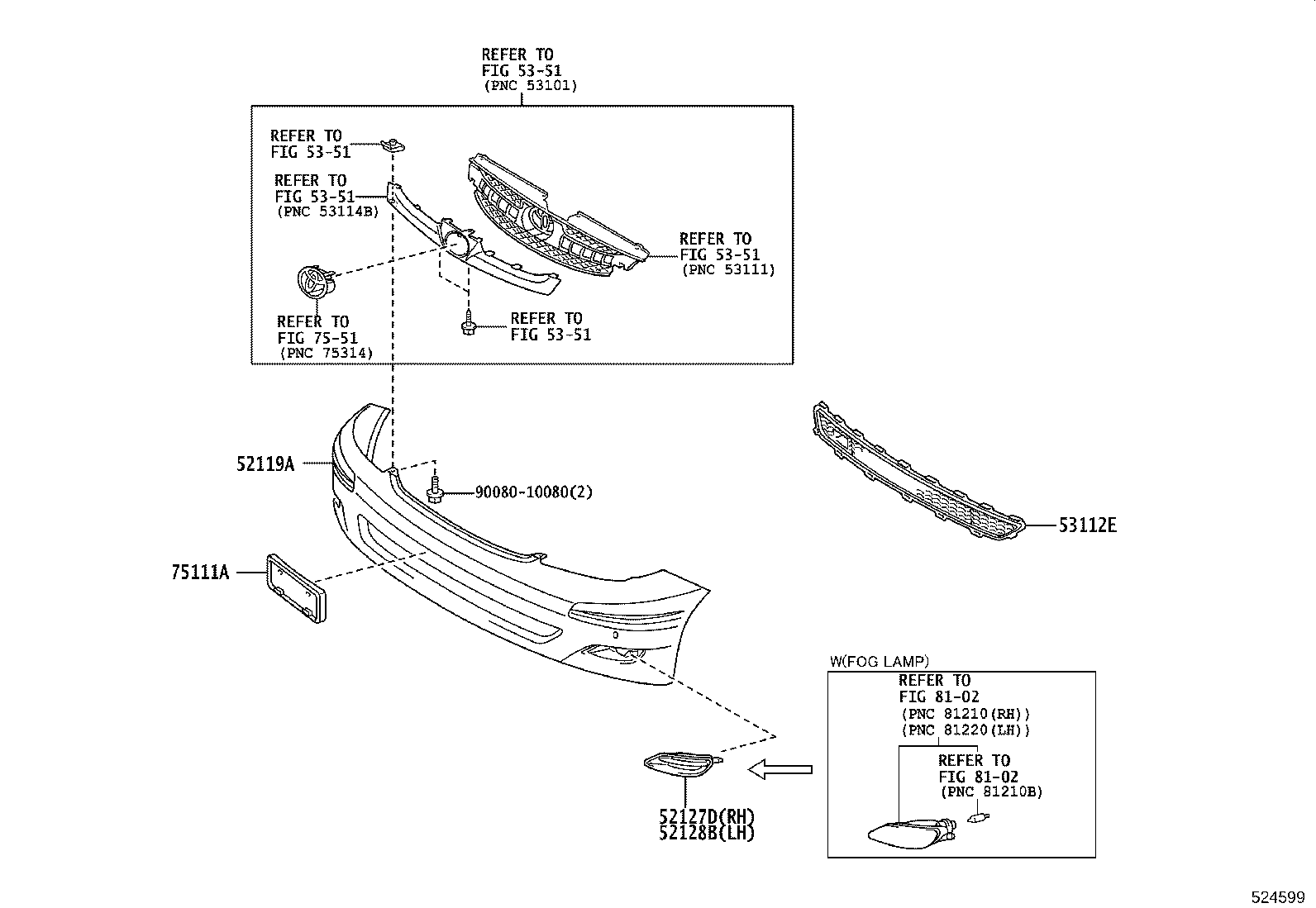

ILLUST NO. 2 OF 2(0509- )

Click highlighted areas on diagram

diagram 52119A 52127D 52128B 53112E 5351 5351 5351 5351 5351 75111A 7551 8102 8102 9008010080
Part # Description Qty Price
52119A - COVER, FRONT BUMPER
52119-AE903

MCL20,25..XLE

PAINT REQ.,LIMITED PACKAGE&CRUISE CONTROL-RADAR CRUISE CONTROL&CLEARANCE & BACK SONER-4-CORNER & BACK

 1
52119-AE901

MCL20,25..LE,XLE

PAINT REQ.,CLEARANCE & BACK SONER-4-CORNER & BACK

 1
52119-AE900

MCL2#

PAINT REQ.

 1
52119-AE902

MCL20,25..XLE

PAINT REQ.,LIMITED PACKAGE&CRUISE CONTROL-RADAR CRUISE CONTROL

 1
52119-AE901

MCL20,25..LE

PAINT REQ.,FRONT FOG LAMP--WITH&CLEARANCE & BACK SONER-4-CORNER & BACK

 1
52119-AE903

MCL20,25..XLE

PAINT REQ.,CRUISE CONTROL-RADAR CRUISE CONTROL&CLEARANCE & BACK SONER-4-CORNER & BACK

 1
52119-AE906

MCL20,25..LE

PAINT REQ.,FRONT FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH(4-CORNER & BACK)

 1
52119-AE906

MCL20,25..XLE

PAINT REQ.,CRUISE CONTROL-RADAR CRUISE CONTROL&CLEARANCE & BACK SONAR-WITH(4-CORNER & BACK)

 1
52119-AE904

MCL2#

PAINT REQ.

 1
52119-AE906

MCL20,25..LE,XLE

PAINT REQ.,CLEARANCE & BACK SONAR-WITH(4-CORNER & BACK)

 1
52119-AE902

MCL20,25..XLE

PAINT REQ.,CRUISE CONTROL-RADAR CRUISE CONTROL

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-AE010

MCL2#..CE,LE

 1
52127-AE020

MCL2#..CE,LE

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-AE010

MCL2#..CE,LE

 1
52128-AE020

MCL2#..CE,LE

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-AE010

MCL2#

NO PAINT REQ.

 1
53112-AE020

MCL20,25..XLE

NO PAINT REQ.,CRUISE CONTROL-RADAR CRUISE CONTROL

 1
53112-AE020

MCL20,25..XLE

NO PAINT REQ.,CRUISE CONTROL-RADAR CRUISE CONTROL&CLEARANCE & BACK SONAR-WITH(4-CORNER & BACK)

 1
75111A - BRACKET, FRONT LICENSE PLATE
75101-AE010

MCL2#

 1
Common parts
90080-10080
Linked diagrams
5351
7551
8102
