MCL20L-PRAQKK (2005)

Toyota Sienna

Production Sep 2005 - Dec 2006
Engine 3MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0509- )

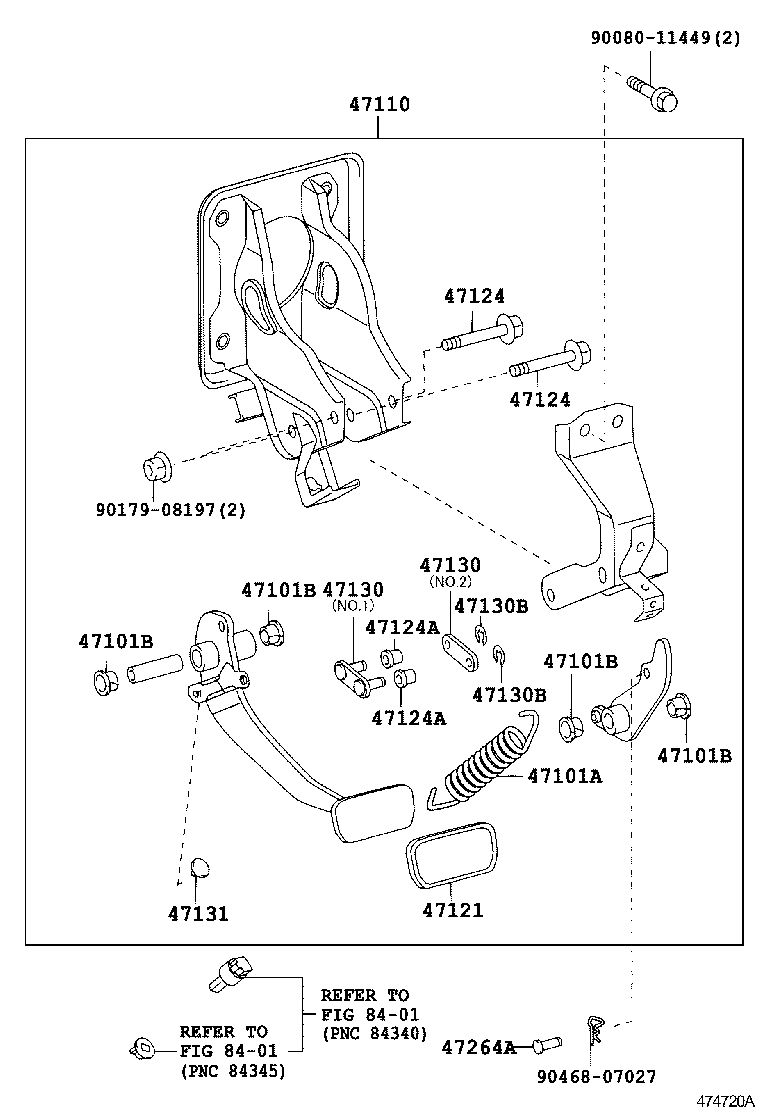

Click highlighted areas on diagram

diagram 47101A 47101B 47101B 47101B 47101B 47110 47121 47124 47124 47124A 47124A 47130 47130 47130B 47130B 47131 47264A 8401 8401 9008011449 9017908197 9046807027
Part # Description Qty Price
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90506-18083

MCL2#

 1
90506-18083

MCL2#

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-14015

MCL2#

 4
90386-14015

MCL2#

 4
47101B - BUSH(FOR BRAKE PEDAL)
90386-14015

MCL2#

 4
90386-14015

MCL2#

 4
47101B - BUSH(FOR BRAKE PEDAL)
90386-14015

MCL2#

 4
90386-14015

MCL2#

 4
47101B - BUSH(FOR BRAKE PEDAL)
90386-14015

MCL2#

 4
90386-14015

MCL2#

 4
47110 - SUPPORT ASSY, BRAKE PEDAL
47110-08020

MCL2#

 1
47110-08020

MCL2#

 1
47121 - PAD, BRAKE PEDAL
47121-52010

MCL2#

 1
47121-52010

MCL2#

 1
47124 - SHAFT, BRAKE PEDAL
90080-10297

MCL2#

 2
90080-10297

MCL2#

 2
47124 - SHAFT, BRAKE PEDAL
90080-10297

MCL2#

 2
90080-10297

MCL2#

 2
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
47144-34010

MCL2#

 2
47144-34010

MCL2#

 2
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
47144-34010

MCL2#

 2
47144-34010

MCL2#

 2
47130 - LINK ASSY, BRAKE PEDAL
47130-60021

MCL2#

NO.2

 1
4710A-28010

MCL2#

NO.1

 1
47130-60020

MCL2#

 2
47130 - LINK ASSY, BRAKE PEDAL
47130-60021

MCL2#

NO.2

 1
4710A-28010

MCL2#

NO.1

 1
47130-60020

MCL2#

 2
47130B - RING E, BRAKE PEDAL LINK PIN
96160-00400

MCL2#

 2
96160-00400

MCL2#

 2
47130B - RING E, BRAKE PEDAL LINK PIN
96160-00400

MCL2#

 2
96160-00400

MCL2#

 2
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06049

MCL2#

 1
90541-06049

MCL2#

 1
47264A - PIN(FOR PUSH ROD)
90240-06023

MCL2#

NO.1

 1
90240-06023

MCL2#

 1
90249-06172

MCL2#

NO.2

 2
Common parts
90080-11449
90179-08197
90468-07027
Linked diagrams
8401
